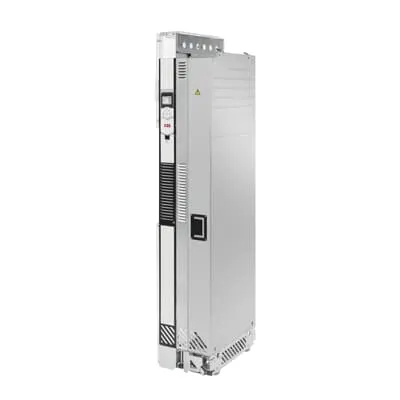

ABB ACS880-04-820A-5 Drive Module - IP20 protection
Part Number: 3AUA0000139080
Quick Summary
ACS880-04-820A-5 drive module is an LV AC drive that delivers precise motor control for demanding industrial applications. Engineers often struggle with compact, easy-to-integrate solutions that reduce wiring, panel space, and commissioning time. This UL-listed, IP20-protected drive includes a built-in harmonic filter choke and offers optional brake chopper, EMC filter, and communication adapters to simplify integration. Its all-in-one design and flexible mounting minimize enclosure depth and cabling while preserving performance. By standardizing on this module, maintenance becomes more predictable, spare parts fewer, and preventive diagnostics easier to implement across oil & gas, mining, metals, chemicals, cement, water treatment, and automotive sectors. It also integrates well with PLCs and industrial networks to support scalable automation projects.
Product Information
Extended Description
3AUA0000139080 ABB: The ACS880-04 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans.
The ACS880-04 modules have all the essential features built-in including a choke for harmonic filtering as standard, and options such as a brake chopper, EMC filter and communication protocol adapter, functional safety and I/O extension modules. The all built-in design combined with IP20 protection significantly simplifies engineering. The drive=E2=80=99s compact size, flexible cabling directions and versatile mounting possibilities from narrow bookshelf to flat mounting and horizontal mounting make it an ideal fit for almost any enclosure. The control unit with I/O and communication connections can be mounted outside the power module or integrated into it.
Feature: Built-in harmonic filter choke and IP20 protection. Business Impact: Improves power quality and protects equipment in harsh environments, reducing waveform distortion and conductive losses. Application: conveyors, pumps, and fans in oil & gas and metals processing. Feature: All-in-one design with integrated control I/O and flexible mounting. Business Impact: Saves panel space and reduces wiring complexity, accelerating installation and commissioning. Application: compact enclosures and narrow cabinets in automation bays. Feature: Optional brake chopper, EMC filter, and protocol adapters. Business Impact: Simplifies safety compliance, EMI management, and network integration, lowering total cost of ownership. Application: material handling, packaging lines, and automated warehouses. Feature: Control unit mounting flexibility. Business Impact: Enables outside or inside mounting of the power module for optimal enclosure design and ease of maintenance. Application: custom enclosures and OEM panel builds. Feature: UL-listed and industry-ready safety capabilities. Business Impact: Enhances regulatory alignment and reliability in critical processes, reducing downtime and risk. Application: oil & gas, mining, chemicals, cement, and water/wastewater plants. Feature: Wide process compatibility with pumps, fans, cranes, winders, and extruders. Business Impact: Delivers a versatile drive platform that supports multiple lines and reduces part proliferation. Application: mixed-asset facilities and multi-line production cells.
Get a Quick Quote for a ABB 3AUA0000139080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000139080?
Enquire Now
FAQs
The drive module supports flexible mounting, allowing the control unit to be mounted outside the power module or integrated inside it. Plan for short, tidy cable runs, appropriate EMC considerations, and ensure the 500 V supply rating is compatible with local standards. The IP20 rating helps guide enclosure selection, while built-in I/O simplifies wiring schemes. Always verify clearances for cooling and maintenance access during panel layout.
Short_description specifies 560 kW power, 820 A current at 500 V for LV AC control. UL listing is indicated, with Pld 700 Hp and 807 A at 460 V as the UL-rated equivalent. The drive is designed for heavy-duty loads and supports a range of motor applications, including conveyors, pumps, and winches, with built-in harmonic filtering for power quality.
Ideal for oil & gas, mining, metals, chemicals, cement, and water/wastewater facilities, as well as power plants, material handling, and automotive manufacturing. It supports cranes, winders, conveyors, mixers, pumps, and fans, making it a versatile platform for multi-line production cells and packaged systems seeking reliable control and reduced engineering effort.
The ACS880-04-820A-5 is UL-listed and IP20-protected, with options for brake chopper and EMC filtering, plus communication protocol adapters and I/O extensions. Functional safety features and modular options support regulatory alignment and safer operation in critical processes, enabling safer maintenance and easier risk management across industrial sectors.
A single, integrated drive reduces BOM complexity, wiring, and commissioning time, translating to lower install costs and faster project ramp-up. Built-in features like harmonic filtering and flexible mounting simplify ongoing maintenance, while the compact design minimizes panel space, improving overall plant uptime and return on investment for end users in high-demand facilities.
