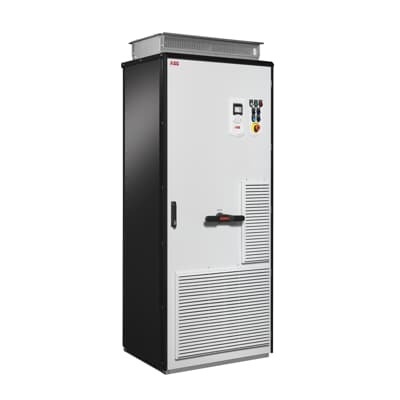

ABB ACS880-07-0880A-5 Drive - IP54 Cabinet Enclosure
Part Number: 3AUA0000169964
Quick Summary
ABB ACS880-07-0880A-5 Drive is a cabinet-built VFD for harsh industrial environments. This drive simplifies setup and integration by delivering a compact, modular cabinet that houses the rectifier, DC link, inverter, fuses, line choke, and main switch in one enclosure. CE-compliant with IP54-rated protection, it is designed to withstand challenging plant conditions while maintaining safe operation. The solution supports scalable configurations for different applications, enabling reliable motor control, easy serviceability, and reduced downtime — essential for pumps, fans, conveyors, and other critical loads in manufacturing and process industries.
Product Information
Extended Description
3AUA0000169964 ABB: The cabinet-built single drives are built to order, meeting your needs regardless of the technical challenges. The drive configuration includes a rectifier, DC link, inverter, fuses, line choke and a main switch, all built into a compact cabinet for easy assembly and commissioning. The ACS880-07 offers a wide ariety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB=E2=80=99s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices.
Drives up to frame size R11 are based on a compact single module including rectifier and inverter. Larger drives consist of separate rectifier and inverter modules, providing redundancy with parallel connected units.
If one module needs to be disconnected, the drive can continue running at reduced power.The robust design and enclosures up to IP54 make the ACS880-07 suitable for even very harsh environments.
Feature: Cabinet-built single drives integrate the rectifier, DC link, inverter, fuses, line choke and main switch in a compact cabinet. Business Impact: Reduces installation footprint and simplifies wiring, commissioning, and maintenance. Application: Ideal for machine rooms and harsh environments where space is at a premium. Feature: Larger drives use separate rectifier and inverter modules with parallel redundancy. Business Impact: Maintains operation with unit loss by continuing at reduced power, improving line uptime. Application: Critical equipment such as pumping systems and material handling lines. Feature: IP54-rated enclosure and rugged cabinet design. Business Impact: Provides protection against dust and water ingress, extending mean time between failures. Application: Steel, water treatment, and outdoor or dirty environments. Feature: Wide standardized configurations, including options to add line contactors and start-prevention features. Business Impact: Accelerates engineering time and ensures safer, smoother startups. Application: General purpose and customized drive installations with safety interlocks. Feature: Order-Based Engineering services for customer-specific features. Business Impact: Delivers tailored functionality without compromising modularity or delivery schedules. Application: Projects demanding cabinet-level customization for compliance or integration needs.
Get a Quick Quote for a ABB 3AUA0000169964
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000169964?
Enquire Now
FAQs
The cabinet houses a complete drive module with a rectifier, DC link, inverter, fuses, line choke, and a main switch for streamlined wiring. For installation, follow ABB's cabinet wiring diagram, ensure proper enclosure grounding, and connect the drive to the motor via standard motor cables. Modular sealing and pre-wired connections minimize field assembly time. The design supports compact cabinet layouts, simplifying panel routing and reducing commissioning time.
Key specs include a nominal power of 630 kW and a continuous input current of 880 A, enabling precise torque control and robust motor starting. The drive supports standard configurations to meet application requirements and offers redundancy options with parallel modules for larger systems. These attributes translate into improved motor performance, smoother drives for pumps and conveyors, and safer protection against overcurrent scenarios.
Yes, the ACS880-07-0880A-5 is designed for harsh environments with IP54-rated enclosure and rugged cabinet construction. It is well-suited for pumps, fans, conveyors, and other heavy-load applications in manufacturing, water treatment, and process industries where reliability and predictable control are critical.
The drive is CE-compliant and features an IP54 protected cabinet suitable for challenging environments. Its modular construction supports standard and customized configurations while maintaining compliance with industrial safety and electrical standards, reducing validation time in regulated facilities.
ABB offers Order-Based Engineering for tailored features, enabling faster integration and reduced engineering risk. The modular design and cabinet integration lower installation labor, maintenance intervals, and downtime, delivering a lower total cost of ownership through enhanced reliability and easier serviceability.
