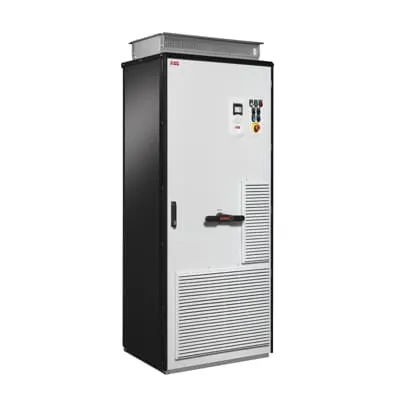

ABB 3AUA0000169979 ACS880-07 - IP54 Enclosure
Part Number: 3AUA0000169979
Quick Summary
ACS880-07 ABB drive is a cabinet-built VFD for precise motor control in industrial applications. The design minimizes field wiring and speeds commissioning by integrating rectifier, DC link, inverter, fuses, line choke, and main switch into a compact cabinet. Its modular approach scales from single-module drives up to larger configurations with separate rectifier and inverter modules, enabling redundancy with parallel units. The rugged enclosure delivers protection up to IP54, making it suitable for harsh environments and challenging installations. ABB’s Order-Based Engineering services can add customer-specific devices for tailored solutions, reducing integration risk. This drive family delivers dependable performance, predictable maintenance, and a clear path to lower total cost of ownership through efficient, configurable motor control.
Product Information
Extended Description
3AUA0000169979 ABB: The cabinet-built single drives are built to order, meeting your needs regardless of the technical challenges. The drive configuration includes a rectifier, DC link, inverter, fuses, line choke and a main switch, all built into a compact cabinet for easy assembly and commissioning. The ACS880-07 offers a wide ariety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB=E2=80=99s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices.
Drives up to frame size R11 are based on a compact single module including rectifier and inverter. Larger drives consist of separate rectifier and inverter modules, providing redundancy with parallel connected units.
If one module needs to be disconnected, the drive can continue running at reduced power.The robust design and enclosures up to IP54 make the ACS880-07 suitable for even very harsh environments.
Feature: Cabinet-built design integrates key components (rectifier, DC link, inverter, fuses, line choke, main switch) into a single compact cabinet. Benefit: Reduces field wiring, speeds commissioning, and simplifies maintenance, delivering quicker time-to-value for new installations and plant upgrades. Application: Conveyor systems, pumps, and processing lines where rapid setup and reliable control are essential. Feature: Modular architecture with single-module up to R11, and larger drives using separate rectifier and inverter modules. Benefit: Enables configurability and redundancy; if one module is disconnected, operation continues at reduced power, boosting uptime and process safety. Application: Critical production lines and remote or harsh locations needing continuous operation. Feature: IP54-rated enclosure and robust cabinet design. Benefit: Withstands dust, moisture, and harsh factory environments, reducing unscheduled downtime and protecting critical components. Application: Factory floors, outdoor installations, and environments with challenging ambient conditions. Feature: Order-Based Engineering capability to add customer-specific devices. Benefit: Accelerates integration, minimizes custom wiring, and shortens time-to-commission for unique process requirements. Application: OEM equipment, packaging lines, and customized material-handling systems. Feature: Wide standardized configurations for different application needs. Benefit: Faster product selection, easier procurement, and proven performance with built-in protections. Application: Start-up cycles, process automation, and energy-management initiatives across manufacturing facilities.
Get a Quick Quote for a ABB 3AUA0000169979
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000169979?
Enquire Now
FAQs
The ACS880-07 is a cabinet-built drive that combines rectifier, DC link, inverter, fuses, line choke, and main switch in a single enclosure. This layout simplifies retrofits and new installs by reducing external wiring and allowing straightforward integration with standard motors, control cabinets, and plant PLCs. It supports common fieldbus options and ABB drive ecosystems, enabling seamless compatibility with existing automation architectures.
Key specifications include a power rating of 1000 kW (PN) and a rated current of 1450 A (IN). The drive up to frame size R11 operates as a compact single module, while larger configurations use separate rectifier and inverter modules for redundancy. The enclosure provides IP54 protection, ensuring reliable operation in less-than-ideal environments.
Yes. The cabinet-built design with IP54 enclosure and modular components is suited for conveyors, pumps, fans, and processing lines in factory floors and outdoor or dirty environments. The ability to add customer-specific devices via Order-Based Engineering also helps tailor the solution to demanding industrial applications while maintaining uptime and performance.
The ACS880-07 is designed to operate in harsh environments with IP54 protection and is built to conform to industry safety and electrical standards. For projects requiring specific certifications (such as SIL or CE-related compliance), ABB’s engineering services can assist with documentation and configuration to align with project compliance requirements.
The integrated design reduces wiring complexity and commissioning time, lowering installation labor costs. Redundancy options and modular architecture help minimize unplanned downtime, while the option for customization via Order-Based Engineering reduces integration risk. Over a typical project lifecycle, these factors translate to lower maintenance costs and a faster, more predictable ROI.
