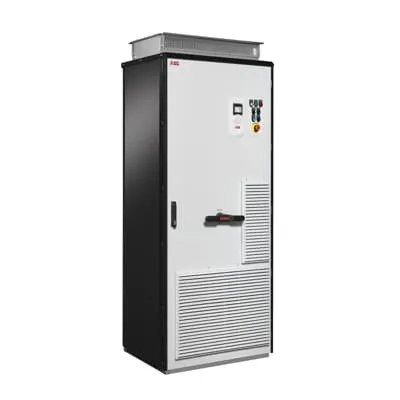

ABB 3AUA0000169996 ACS880 Drive - IP54 Cabinet Rating
Part Number: 3AUA0000169996
Quick Summary
ACS880 Drive provides precise motor speed control for industrial applications such as conveyors and pumps. In real-world plants, engineers face lengthy integration, cabinet clutter, and downtime during commissioning. ABB’s cabinet-built ACS880-07 solutions deliver IP54 protection and CE-certified safety practices, with robust enclosures that stand up to dusty or humid environments. The system supports a wide range of configurations, from compact single-module drives up to larger, redundant setups, and can add customer-specific devices through ABB’s Order-Based Engineering services. This approach reduces wiring complexity, shortens installation time, and improves overall reliability, translating to lower maintenance costs and higher plant uptime. Secondary benefits include improved fault isolation and simpler future upgrades.
Product Information
Extended Description
3AUA0000169996 ABB: The cabinet-built single drives are built to order, meeting your needs regardless of the technical challenges. The drive configuration includes a rectifier, DC link, inverter, fuses, line choke and a main switch, all built into a compact cabinet for easy assembly and commissioning. The ACS880-07 offers a wide ariety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB=E2=80=99s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices.
Drives up to frame size R11 are based on a compact single module including rectifier and inverter. Larger drives consist of separate rectifier and inverter modules, providing redundancy with parallel connected units.
If one module needs to be disconnected, the drive can continue running at reduced power.The robust design and enclosures up to IP54 make the ACS880-07 suitable for even very harsh environments.
Feature: Cabinet-built drive with rectifier, DC link, inverter, fuses, line choke, and main switch integrated into a compact cabinet. Business Impact: Simplifies installation, reduces panel space, and accelerates commissioning, lowering installation costs and startup time. Application: Ideal for space-constrained machine rooms and new line builds where fast time-to-prod is critical. Feature: Wide configuration options with Order-Based Engineering for customization. Business Impact: Delivers tailored control solutions that meet exact process needs, reducing integration risk and post-install adjustments. Application: Conveyor lines, pumps, and specialized packaging equipment that require bespoke features. Feature: Modularity up to frame size R11 with separate rectifier and inverter modules for larger drives. Business Impact: Enables scalable capacity and easier maintenance with built-in redundancy, boosting uptime. Application: High-demand manufacturing lines and process industries needing continuous operation. Feature: Redundancy and continued operation at reduced power if a module is disconnected. Business Impact: Improves availability and reduces unplanned downtime, protecting production throughput. Application: Critical process equipment in mining, water treatment, and energy sectors. Feature: IP54-rated rugged enclosure supports harsh environments. Business Impact: Extends service life in dusty or humid facilities, reducing protective enclosure upgrades. Application: Factory floors, outdoor installations, and harsh manufacturing environments. Feature: Integrated components and streamlined wiring for faster installation. Business Impact: Lowers installation risk and time-to-produce, improving project ROI. Application: New installations and plant modernization projects seeking efficient, compliant drive solutions.
Get a Quick Quote for a ABB 3AUA0000169996
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000169996?
Enquire Now
FAQs
ABB ACS880 cabinet drives are designed for straightforward integration with a wide range of industrial motors and control systems. When upgrading legacy drives or integrating new lines, assess voltage, current, and enclosure clearances, then leverage ABB’s documented wiring schemes and commissioning tools. The cabinet format reduces external components, minimizes panel space, and speeds up startup without sacrificing safety or control fidelity.
Key specifications include a 900 kW power rating and 950 A input current, with an IP54-enclosed cabinet suitable for dusty and humid environments. The drive supports modular rectifier and inverter configurations, and can be configured for redundancy in larger installations, ensuring sustained performance even during module maintenance.
Yes. The ACS880-07 is built to deliver smooth speed control for conveyors and pump systems, with fast torque response and robust protection. Its cabinet form factor reduces wiring complexity on production lines, while the option for Order-Based Engineering enables customization for specific process requirements, improving line throughput and reducing unplanned downtime.
The IP54-rated enclosure provides protection against dust and splashing water, and ABB aligns with CE safety standards for industrial drives. Additional protections include integrated fuses, a line choke, and isolated cabinet components, delivering safe operation in challenging environments with a compact, serviceable footprint.
Maintenance benefits include a modular design that simplifies servicing, reduced wiring complexity, and fewer field failures due to integrated components. By enabling higher uptime and faster commissioning, the ACS880 cabinet drives lower total cost of ownership and improve return on investment. The ability to continue operation at reduced power during module outages also aids predictive maintenance planning.
