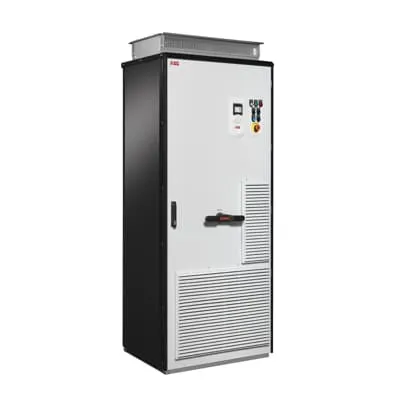

ABB 3AUA0000169999 ACS880-07 Cabinet Drive - IP54 Enclosure
Part Number: 3AUA0000169999
Quick Summary
ACS880-07 cabinet drive is a compact, high-performance motor drive designed for demanding industrial automation applications. It simplifies deployment by delivering a cabinet-built solution that integrates rectifier, DC link, inverter, fuses, line choke, and main switch for fast assembly and commissioning. The rugged enclosure supports operation in challenging environments, with IP54 protection and robust construction. ABB's configurable configurations and Order-Based Engineering enable customer-specific features without project-level rework. This combination delivers shorter time-to-value, higher uptime, and a scalable platform for energy efficiency, motor protection, and line-start control across OEMs and plant operations. The drive’s modular philosophy also supports redundancy and straightforward maintenance, helping your facility stay productive with less downtime.
Product Information
Extended Description
3AUA0000169999 ABB: The cabinet-built single drives are built to order, meeting your needs regardless of the technical challenges. The drive configuration includes a rectifier, DC link, inverter, fuses, line choke and a main switch, all built into a compact cabinet for easy assembly and commissioning. The ACS880-07 offers a wide ariety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB=E2=80=99s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices.
Drives up to frame size R11 are based on a compact single module including rectifier and inverter. Larger drives consist of separate rectifier and inverter modules, providing redundancy with parallel connected units.
If one module needs to be disconnected, the drive can continue running at reduced power.The robust design and enclosures up to IP54 make the ACS880-07 suitable for even very harsh environments.
Cabinet-built integration is a core feature: the drive combines rectifier, DC link, inverter, fuses, line choke, and a main switch into a single compact enclosure. Business impact: simplifies wiring, reduces panel space, and speeds up commissioning, cutting start-up time and installation costs. Application: ideal for OEM machines, conveyors, and process lines where quick integration and reliable power conversion are critical. Standard configurations provide a broad range of ready-made setups, reducing engineering time while ensuring consistent performance across applications. Business impact: faster project delivery, easier maintenance planning, and predictable operation. Application: line start protection, energy‑efficient operation, and configurable safety features on manufacturing lines. Order-Based Engineering enables customer-specific cabinets and features, avoiding costly rework and accelerating delivery. Application: tailor-made solutions with ABB’s engineering services for unique equipment packages. Large drives use modular architecture: single modules up to frame size R11, with larger units offering separate rectifier and inverter modules for redundancy. Business impact: increased availability; if a module disconnects, the drive continues at reduced power, reducing unplanned downtime. Application: critical motors in mining, water treatment, and heavy process lines. IP54 enclosures protect against dust and moisture, ensuring reliable operation in harsh environments. Business impact: extended service life and lower maintenance costs; Application: outdoor installations, dusty or humid facilities. Compatibility and installation are streamlined by cabinet-built design, facilitating rapid integration with existing ABB drives ecosystems and reducing total installed cost.
Get a Quick Quote for a ABB 3AUA0000169999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000169999?
Enquire Now
FAQs
The ACS880-07 comes as a cabinet-built unit that integrates rectifier, DC link, inverter, fuses, line choke, and main switch. This consolidates wiring and reduces panel space, enabling faster assembly and commissioning. Ensure proper enclosure mounting, shielded cabling, and adherence to your site’s electrical drawings for a clean, reliable installation.
The drive features a robust enclosure rated up to IP54, protecting against dust and moisture. This allows operation in challenging settings such as conveyors, packaging lines, and outdoor installations, while maintaining performance and reliability with minimal maintenance.
Yes. Larger ACS880-07 configurations use separate rectifier and inverter modules, providing redundancy. If one module is disconnected, the drive continues to operate at reduced power, helping avoid abrupt downtime and supporting critical processes.
ABB offers a wide array of standardized configurations for the ACS880-07 to suit different applications, from line contactors to motor-start prevention. For additional customization, ABB’s Order-Based Engineering services can add cabinet-specific features or customer devices, reducing integration time and risk.
Key specs include a 2500 kW power rating, 2600 A input current, and IP54 enclosure. The cabinet houses a rectifier, DC link, inverter, fuses, line choke, and a main switch, delivering a compact, ready-to-install solution with robust electrical protection and efficient motor control.
