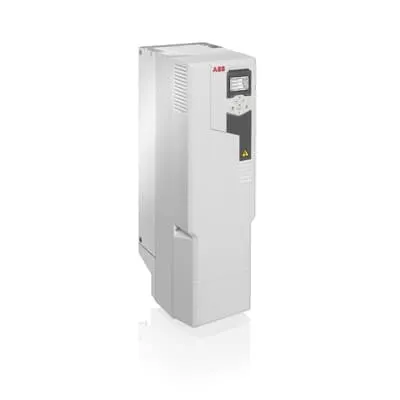

ABB ACS580-01-096A-4 Wall-Mounted Drive - Type 4X IP66
Part Number: 3AUA0000204819
Quick Summary
ACS580-01-096A-4 wall-mounted drive provides reliable motor control for pumps, conveyors, and mixers in rugged industrial environments. Many projects stall due to enclosure exposure, downtime, and integration headaches when adding variable speed drives. This ABB unit delivers IP66 (Type 4X) protection and UL-listed robustness, with compatibility across ABB's all‑compatible drives portfolio for a consistent engineering experience. The solution supports V/Hz and sensorless vector control, enabling efficient operation across induction, permanent magnet, and synchronous reluctance motors. Businesses gain energy efficiency, reduced maintenance, and faster project timelines, while engineers enjoy streamlined tuning, easier OEM integration, and scalable performance that aligns with modern automation architectures.
Product Information
Extended Description
3AUA0000204819 ABB: The wall-mounted ACS580-01 is available as UL Type 1 (IP21), Type 12 (IP55) and Type 4X (IP66) designed for OEM and end users who value high quality and robustness in their applications. Coated control boards, high enclosure classes, and motor temperature monitoring ensure processes will run smoothly even in harsh conditions. This drive is part of ABB=E2=80=99s all-compatible drives portfolio, sharing the same control panel, PC tools, parameter structure and communications options as the ACS380/180 and ACS880. Learn it once; use it everywhere. With both V/Hz and sensorless vector control supporting most motor types such as induction, permanent magnet, synchronous reluctance, and optimum pole motors the ACS580 is ideal for use on compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and other variable and constant torque applications, in a variety of industries, including food and beverage, plastic, textile, material handling, and agriculture.
Feature → Business Impact → Application: The ACS580-01-096A-4 employs V/Hz and sensorless vector control to optimize motor torque and startup performance, reducing energy consumption and improving process stability in demanding applications such as conveyors and pumps. This translates to measurable efficiency gains and lower operating costs across shift cycles and longer equipment life in continuous operation environments. In practice, users see smoother acceleration, better load handling, and reduced mechanical wear during changing loads in material handling lines and packaging systems. Feature → Business Impact → Application: A rugged wall-mounted design with Type 1/IP21, Type 12/IP55, and Type 4X/IP66 enclosure options protects electronics in diverse plant conditions, delivering dependable operation with minimal enclosure-related failures. This is particularly valuable for OEMs integrating the drive into compact control panels or harsh factory floors where splash or dust exposure is a concern. Feature → Business Impact → Application: The drive supports a broad motor portfolio, including induction, permanent magnet, synchronous reluctance, and optimum pole motors, enabling a single drive family to cover multiple lines. This reduces spare-part inventory and simplifies procurement while accelerating deployment across compressors, extruders, fans, and mixers. Feature → Business Impact → Application: Cross-portfolio compatibility and a shared control panel structure with PC tools streamline engineering workflows. Operators benefit from familiar interfaces and faster commissioning, while maintenance teams reduce training time and error rates when switching between ABB drives across plant sites. Feature → Business Impact → Application: Built-in motor temperature monitoring and robust control boards enhance protective features, enabling predictive maintenance and preventing unexpected downtime. This supports safer operation and longer motor life in high-load cycles such as grinding mills or high-speed conveyors. Feature → Business Impact → Application: The ACS580-01-096A-4 is designed for OEM integration and scalable automation projects, supporting expansion without retooling. This helps manufacturers standardize drives across lines, simplify spare parts planning, and accelerate time-to-market for new equipment upgrades in plastics, packaging, and food & beverage segments.
Get a Quick Quote for a ABB 3AUA0000204819
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000204819?
Enquire Now
FAQs
When installing the ACS580-01-096A-4, choose the appropriate enclosure type (Type 1/IP21, Type 12/IP55, or Type 4X/IP66) based on your environment. Plan for adequate cooling, ensure proper cable routing, and observe clearances for heat dissipation. Use the same control panel interface as other ABB drives to minimize wiring errors and simplify commissioning across multiple machines.
The drive supports induction, permanent magnet, synchronous reluctance, and optimum pole motors. With V/Hz and sensorless vector control, it delivers reliable torque and speed control across a range of loads, making it suitable for pumps, conveyors, compressors, extruders, and fans in diverse industrial applications.
Yes. The drive family includes enclosure options up to Type 4X/IP66, which provides strong protection against dust and water ingress in challenging environments. Select the IP66-rated version for washdown-ready facilities or outdoor installations to maintain reliability and reduce maintenance cycles.
The ACS580-01-096A-4 offers V/Hz and sensorless vector control, enabling efficient speed regulation and improved torque response. It supports a wide voltage range with a 500 V rating and up to 96 A current, making it suitable for medium to high-power applications such as conveyors, pumps, and fans with robust performance across varying loads.
Benefits include reduced downtime due to rugged IP66 protection, motor temperature monitoring for predictive maintenance, and simplified engineering through a common ABB drive ecosystem. The result is lower spare-parts inventory, faster commissioning, and improved process reliability, contributing to a favorable total cost of ownership in automation projects.
