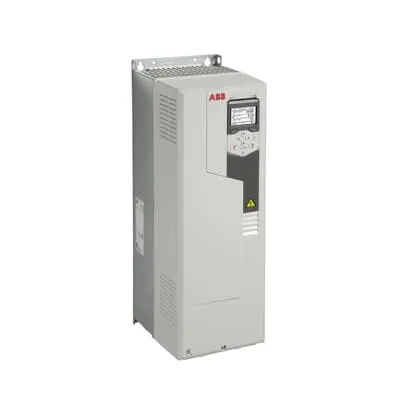

ABB ACS580-01-077A-4 Wall-Mounted Drive - IP66 4X
Part Number: 3AUA0000219774
Quick Summary
The ABB ACS580-01-077A-4 drive is a wall-mounted AC drive for precise motor control in industrial conveyors and pumps. Many engineers struggle with reliability in harsh environments; this model uses coated control boards, rugged enclosures, and motor temperature monitoring. It is available in UL Type 1 (IP21), Type 12 (IP55) and Type 4X (IP66) enclosures, aligning with safety and plant standards. With V/Hz and sensorless vector control, it supports induction, permanent magnet, synchronous reluctance, and optimum pole motors, enabling consistent performance across processes. These features translate to lower downtime and simplified OEM integration, delivering cost savings and faster commissioning across manufacturing lines.
Product Information
Extended Description
3AUA0000219774 ABB: The wall-mounted ACS580-01 is available as UL Type 1 (IP21), Type 12 (IP55) and Type 4X (IP66) designed for OEM and end users who value high quality and robustness in their applications. Coated control boards, high enclosure classes, and motor temperature monitoring ensure processes will run smoothly even in harsh conditions. This drive is part of ABB=E2=80=99s all-compatible drives portfolio, sharing the same control panel, PC tools, parameter structure and communications options as the ACS380/180 and ACS880. Learn it once; use it everywhere. With both V/Hz and sensorless vector control supporting most motor types such as induction, permanent magnet, synchronous reluctance, and optimum pole motors the ACS580 is ideal for use on compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and other variable and constant torque applications, in a variety of industries, including food and beverage, plastic, textile, material handling, and agriculture.
Feature: The ACS580-01-077A-4 offers V/Hz and sensorless vector control for versatile motor performance. This combination delivers precise torque and smooth acceleration across variable loads, reducing energy waste and extending drive life. Application: suitable for compressors, pumps, conveyors, extruders, centrifuges, mixers, and fans in manufacturing lines. Feature: Wide enclosure options include UL Type 1 IP21, Type 12 IP55, and Type 4X IP66, supporting diverse installation environments. Business impact: higher system uptime and lower enclosure-related failures in dusty, wet, or corrosive plants. Application: OEM equipment and end-user machinery across food & beverage, plastics, textiles, and material handling. Feature: Coated control boards and motor temperature monitoring enhance reliability under challenging conditions. Business impact: improved fault tolerance and early warning reduce unplanned downtime. Application: outdoor installations, chemical processing, or high-temperature environments where cooling is critical. Feature: All-compatible drives portfolio provides a common control panel, PC tools, parameter structure, and communications across ABB drives. Business impact: faster commissioning, simplified upgrades, and consistent maintenance routines. Application: OEMs integrating multiple ABB drives for scalable automation and easier lifecycle management. Feature: OEM-friendly installation with robust thermal management and straightforward field wiring. Business impact: reduces installation time, wiring errors, and total cost of ownership. Application: new machine builds and retrofits in manufacturing plants seeking reliability and long-term support.
Get a Quick Quote for a ABB 3AUA0000219774
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000219774?
Enquire Now
FAQs
Installation steps emphasize selecting the appropriate enclosure (IP21/IP55/IP66), mounting the drive on a stable surface, and routing shielded motor and control cables. Connect line and motor conductors per the ABB wiring diagram, configure protection devices, and enable motor temperature monitoring. Use ABB PC tools for parameter import and ensure proper grounding to prevent EMI and nuisance trips.
The ACS580-01-077A-4 supports induction, permanent magnet, synchronous reluctance, and optimum pole motors. Control modes include V/Hz and sensorless vector control, allowing efficient torque control and smooth speed regulation across a wide speed range, suitable for variable-torque and constant-torque applications.
Yes. It offers UL Type 1 (IP21), Type 12 (IP55), and Type 4X (IP66) enclosure variants, delivering protection against dust, water ingress, and harsh conditions. This makes it appropriate for OEM equipment and field installations in manufacturing, food & beverage, plastics, and material handling sectors.
The drive is configured for UL Type 1/IP21, UL Type 12/IP55, and UL Type 4X/IP66 enclosure compliance, aligning with industrial safety and plant standards. The broad enclosure compatibility supports regulatory and industry requirements across global manufacturing sites.
Benefits include reduced energy consumption from optimized motor control, lower downtime due to motor temperature monitoring and robust coatings, and faster commissioning via a shared ABB drives ecosystem. These factors combine to shorten time-to-value, lower total cost of ownership, and improve uptime in continuous manufacturing environments.
