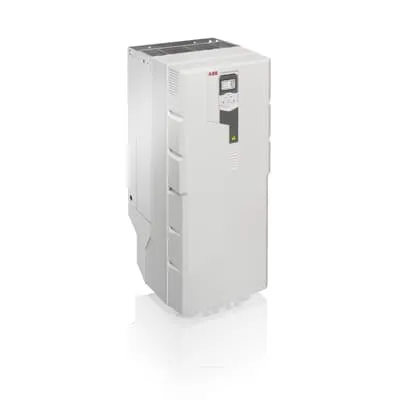

ABB ACS580-01-302A-4 Drive - UL Type 4X IP66
Part Number: 3AUA0000219776
Quick Summary
ACS580-01-302A-4 wall-mounted drive enables precise motor control for conveyors and pumps. This compact, robust controller helps you tackle downtime and wiring complexity with a configurable, all-in-one solution. The enclosure options include UL Type 1 (IP21), Type 12 (IP55) and Type 4X (IP66), offering protection for harsh environments. With coated control boards and motor temperature monitoring, you get reliable operation across demanding applications. Built to work seamlessly with ABB’s all-compatible drive portfolio, it simplifies engineering and reduces training time while delivering consistent performance across multiple motor types and power levels.
Product Information
Extended Description
3AUA0000219776 ABB: The wall-mounted ACS580-01 is available as UL Type 1 (IP21), Type 12 (IP55) and Type 4X (IP66) designed for OEM and end users who value high quality and robustness in their applications. Coated control boards, high enclosure classes, and motor temperature monitoring ensure processes will run smoothly even in harsh conditions. This drive is part of ABB=E2=80=99s all-compatible drives portfolio, sharing the same control panel, PC tools, parameter structure and communications options as the ACS380/180 and ACS880. Learn it once; use it everywhere. With both V/Hz and sensorless vector control supporting most motor types such as induction, permanent magnet, synchronous reluctance, and optimum pole motors the ACS580 is ideal for use on compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and other variable and constant torque applications, in a variety of industries, including food and beverage, plastic, textile, material handling, and agriculture.
Feature → Business Impact → Application: V/Hz and sensorless vector control deliver flexible motor performance across induction, permanent magnet, synchronous reluctance, and optimum pole motors, enabling precise speed regulation and torque control. This reduces energy waste and improves process stability for pumps and conveyors. Feature → Business Impact → Application: IP66/4X enclosure options plus IP21 and IP55 variants with coated control boards dramatically increase equipment uptime in washdown, dusty, or vibration-prone environments. This minimizes maintenance costs and extends service life for food, plastic, and agriculture machinery. Feature → Business Impact → Application: Shared control panel, PC tools, parameter structure, and communications options across ABB drives simplify integration and commissioning, cutting engineering time and avoiding vendor lock-in in OEM lines. Feature → Business Impact → Application: Motor temperature monitoring provides proactive protection, preventing overheating and unplanned shutdowns in continuous operation equipment like compressors and centrifuges. Feature → Business Impact → Application: 250 HP, 302 A, 500 V, with standard V/Hz control, offers reliable torque across variable loads, improving efficiency and reducing total cost of ownership for fans, mixers, and extruders.
Get a Quick Quote for a ABB 3AUA0000219776
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000219776?
Enquire Now
FAQs
The ACS580-01-302A-4 supports induction, permanent magnet, synchronous reluctance, and optimum pole motors. It offers V/Hz and sensorless vector control, enabling precise speed and torque across a wide range of loads. It is designed to integrate with ABB’s ACS380/ACS180/ACS880 control ecosystems, delivering a unified parameter structure and compatible PC toolchain for quick commissioning.
This drive provides V/Hz and sensorless vector control for versatile motor performance, along with motor temperature monitoring and coated control boards for reliability in harsh conditions. Enclosure options include UL Type 1 (IP21), Type 12 (IP55), and Type 4X (IP66), ensuring protection across OEM and end-user installations.
Ideal for compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and other variable or constant torque processes. The integration of robust protection and common ABB tooling makes it particularly well-suited for harsh manufacturing environments and OEM equipment where uptime and predictability are critical.
The ACS580-01-302A-4 supports multiple enclosure ratings: UL Type 1 with IP21, Type 12 with IP55, and Type 4X with IP66, complemented by coated control boards for corrosion protection. These ratings help meet regulatory and industry requirements while enabling installation in demanding environments.
By leveraging ABB’s common drive architecture, it reduces engineering and spare parts complexity, lowering deployment time and training costs. The motor temperature monitoring and robust enclosure translate to fewer unplanned outages, while energy-efficient V/Hz control and reliable torque improve process consistency, delivering a favorable total cost of ownership for conveyors, pumps, and processing lines.
