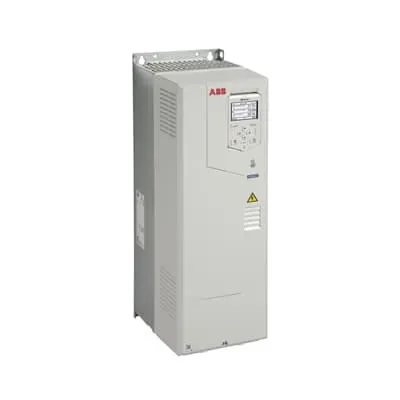

ABB ACH580-01-077A-4 LV AC Wall-Mounted Drive - HVAC IP21
Part Number: 3AUA0000219795
Quick Summary
The ACH580 HVAC drive provides precise motor control for fans, pumps, and compressors in building HVAC systems. Installers struggle with long commissioning times; this drive simplifies startup with HVAC-specific menus and built-in features. UL-listed up to 60 HP and IP21 standard enclosure (with IP55 and flange-mount options) deliver reliability in typical plant environments. In addition, Bluetooth capability enables remote commissioning and monitoring, while the device’s wall-mount form saves space and installation time. For manufacturers and service teams, this translates to lower total cost of ownership and faster project timelines. Its built-in HVAC control logic reduces wiring complexity and supports reliable operation in mission-critical environments. Designed for energy-conscious facilities, it helps meet modern efficiency targets without sacrificing performance.
Product Information
Extended Description
3AUA0000219795 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC motor control is a core feature of the ACH580-01-077A-4, delivering precise speed and torque management across fans, pumps, and compressors. This direct integration reduces external drive programming and wiring, cutting installation time and mitigating misconfigurations. Use this solution in air handling units and chiller systems to achieve smoother operation, lower energy use, and tighter process control in mission-critical environments. HVAC-specific control panel provides a dedicated primary settings menu and help assistants. This focused interface minimizes commissioning errors and speeds up handover to operations teams. Ideal for facilities engineers, contractors, and OEMs who need reliable, repeatable configurations for common HVAC load scenarios. IP21 enclosure and wall-mounted form offer clear installation advantages. IP21 supports safe operation in standard plant rooms, while optional IP55 and flange-mount options extend use to more demanding environments. The compact wall-mount design saves space and simplifies retrofits, reducing enclosure hardware requirements and improving service access. Optional Bluetooth connectivity enables remote commissioning and ongoing monitoring. This reduces on-site visits and accelerates maintenance planning, while keeping key parameter changes auditable for compliance. Field technicians can tune performance from a tablet or laptop, speeding fault diagnosis and deployment across multiple sites. With a 60 HP, 77 A at 460 V rating, the ACH580-01-077A-4 handles mid-to-large HVAC motors in a single drive. This supports both high-inertia fans and multi-pump configurations, improving system responsiveness and reliability. The device integrates smoothly with ABB controls and compatible drive family hardware for consistent performance across projects. Standardization across sites reduces spare parts, training time, and maintenance overhead. Built-in HVAC logic supports energy management and regulatory compliance while simplifying operator training. In value terms, projects see lower total cost of ownership, faster commissioning, and measurable energy savings. This enables quicker ROI analysis during project planning and procurement. The ACH580-01-077A-4 aligns with global standards for HVAC drive solutions.
Get a Quick Quote for a ABB 3AUA0000219795
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000219795?
Enquire Now
FAQs
The ACH580-01-077A-4 is designed to handle up to 60 HP and 77 A at 460 V, making it suitable for mid-to-large HVAC motors such as standard fans and pumps. Its wall-mount footprint and IP21 enclosure with optional IP55 support straightforward retrofits. The drive integrates with ABB control ecosystems, enabling consistent performance across existing motor control schemes and simplifying spare-parts planning.
Installation requires a 460 V supply capable of delivering up to 77 A and installation on a suitable wall with the IP21-rated enclosure. Space for cooling and service access is important, with optional IP55 and flange-mount units available for harsher environments. Bluetooth-ready variants allow remote commissioning, reducing site visits during setup and testing.
Expect smoother motor operation, improved energy efficiency, and reduced startup currents due to built-in HVAC-focused control logic. The dedicated menus shorten commissioning times, while remote monitoring via Bluetooth helps detect and address issues sooner. Overall, you gain faster project timelines, lower energy consumption, and more predictable HVAC performance across multiple machines.
Yes. The ACH580-01-077A-4 is built to control fans, pumps, and compressors within air handling units, chillers, and other building systems. Its IP21 enclosure supports standard indoor placements, with IP55 and flange-mount options expanding usage in more demanding environments. Built-in HVAC logic and energy management features help ensure reliable operation in complex installations.
ROI stems from energy savings, reduced installation time, and easier commissioning. Standardization across sites lowers spare-parts and training costs, while remote monitoring supports proactive maintenance. With ABB’s ecosystem, long-term maintenance becomes more predictable, translating to lower total cost of ownership and faster deployment across facilities.
