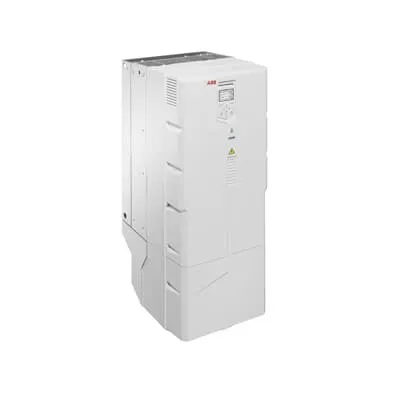

ABB ACH580-01-302A-4 LV AC Wall-Mounted Drive - IP21 HVAC
Part Number: 3AUA0000219808
Quick Summary
ABB ACH580-01-302A-4 HVAC drive is a wall-mounted LV AC drive designed to control fans, pumps and compressors in HVAC systems. Engineers often struggle with lengthy commissioning, complex setup, and inconsistent performance across varying loads. Key certifications and ratings include IP21 enclosure with optional IP55, UL listing, and an HVAC tailored control interface to speed startup. These capabilities translate into faster installations, easier maintenance, and measurable energy savings for building systems. Convenient compatibility with ABB drives and motors supports seamless integration into existing automation ecosystems.
Product Information
Extended Description
3AUA0000219808 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature built-in HVAC control capabilities → Business impact: enables precise, energy-efficient operation of fans, pumps and compressors; Application: air handling units, rooftop units, and chillers. The drive ships with an intuitive control panel featuring a dedicated HVAC primary settings menu plus help assistants, reducing commissioning time and startup risk. Feature remote monitoring and commissioning via optional Bluetooth capability → Business impact: enables off-site adjustments, remote fault diagnosis, and reduced on-site service visits; Application: distributed HVAC plants and critical facilities. Feature IP21 enclosure with IP55 options → Business impact: installation flexibility across indoor walls and enclosure variants, ensuring protection in varied environments; Application: plant rooms and equipment rooms with strict accessibility constraints. Feature 302 A continuous current and 250 Hp rating → Business impact: supports mid-to-large HVAC loads with robust performance; Application: efficient drive sizing for fans, pumps and compressors, delivering energy savings and lifecycle cost reductions. Feature HVAC-specific settings and assistive startup tooling → Business impact: lowers risk of misconfiguration and accelerates acceptance testing; Application: new installs and retrofits across commercial and industrial buildings. Compatibility with ABB motor and drive ecosystem → Business impact: seamless integration, streamlined spare parts planning, and unified control strategy; Application: projects requiring standardized controls across multiple equipment types.
Get a Quick Quote for a ABB 3AUA0000219808
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000219808?
Enquire Now
FAQs
This drive is designed for wall-mounted, low-voltage HVAC applications. It controls fans, pumps and compressors in air handling units, chillers, and rooftop units, with an IP21 enclosure and optional IP55 for damp or more demanding environments. Its HVAC-specific settings streamline commissioning and ongoing operation within building automation systems.
By delivering precise speed control for motors, the ACH580-01-302A-4 minimizes throttling losses and optimizes duty cycles for fans and pumps. The built-in HVAC control features, coupled with a user-friendly interface, enable tuned operating presets and smarter startup/shutdown routines, which translate into lower energy consumption and reduced maintenance frequenting hours.
Yes. The unit is available with an IP21 enclosure by default and offers IP55 and flange mounting variants. This provides installation flexibility for wall-mounted configurations in standard rooms or more demanding environments, while preserving access to the intuitive HVAC-focused control panel.
The ACH580-01-302A-4 is UL-listed and designed for HVAC applications with an IP21 enclosure and optional IP55 rating. These ratings support safety, reliability, and suitability for commercial and industrial HVAC installations, with the drive integrating into ABB’s broader ecosystem for consistent regulatory compliance.
The combination of faster commissioning, reduced maintenance needs, and lower energy use yields meaningful ROI over project lifecycles. Remote commissioning via Bluetooth reduces on-site visits, while the HVAC-tailored settings help maintain optimal performance, translating to lower operational costs and improved system reliability over time.
