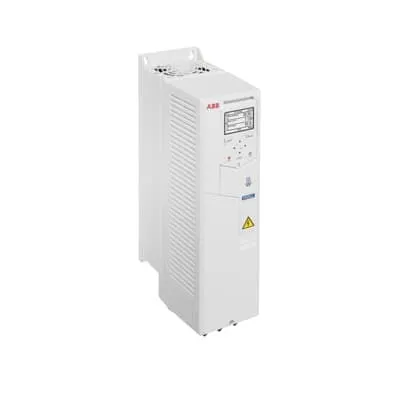

ABB ACH580-01-014A-4 LV AC Drive for HVAC - IP21 Enclosure
Part Number: 3AUA0000222367
Quick Summary
ABB ACH580-01-014A-4 LV AC drive for HVAC applications controls fans, pumps, and compressors. Engineers and technicians often face lengthy commissioning and unpredictable startup with generic drives; this HVAC-focused unit reduces downtime through an HVAC-specific primary settings menu and intuitive operation. It provides IP21 protection, with IP55 and flange mounting options to fit tight spaces and challenging environments. The built-in features support reliable operation in normal and mission-critical HVAC applications, delivering energy-saving benefits and easier integration with building automation. This combination translates to lower maintenance costs, faster deployment, and a strong ROI for commercial buildings and industrial facilities, while supporting energy efficiency and effective motor control in demanding HVAC deployments.
Product Information
Extended Description
3AUA0000222367 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: HVAC-specific settings menu and intuitive control panel → Business Impact: Speeds up startup, reduces commissioning time, and minimizes operator training costs → Application: New installations or retrofit projects in air handling units and cooling systems. Feature: Built-in diagnostics and fault indicators → Business Impact: Improves mean time to repair and reduces downtime, safeguarding critical HVAC processes → Application: Commercial towers, data centers, and hospitals. Feature: 10 HP, 14 A, 460 V drive performance → Business Impact: Precise motor control and dependable operation for standard AHU blowers and pumps → Application: Fans, pumps, compressors in HVAC loops. Feature: IP21 enclosure with IP55 and flange mounting options → Business Impact: Flexible installation in various spaces and environments, enabling wall mounting in compact rooms → Application: Mechanical rooms with space constraints and retrofit sites. Feature: Optional Bluetooth remote commissioning and monitoring → Business Impact: Remote diagnostics and reduced site visits, lowering service costs → Application: Site testing, startup, and ongoing monitoring for multiple units in a facility.
Get a Quick Quote for a ABB 3AUA0000222367
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000222367?
Enquire Now
FAQs
ABB ACH580-01-014A-4 is designed for LV HVAC drives at 460 V, 14 A, up to 10 HP, making it suitable for common HVAC fans, pumps, and compressors. Wall-mounted installation with IP21 protection (IP55 option available) supports compact mechanical rooms and retrofit projects, while the HVAC-oriented settings menu eases integration with existing building automation systems.
Key HVAC-friendly features include an HVAC-specific primary settings menu, built-in diagnostics, and intuitive operation which speed commissioning and startup. Optional Bluetooth enables remote commissioning and monitoring, reducing field visits. Its precise motor control and energy-saving capabilities help optimize fans, pumps, and compressors in AHUs, chilled water plants, and other HVAC subsystems.
The ACH580-01-014A-4 comes with a wall-mounted LV drive in an IP21 enclosure, with IP55 and flange mounting options available for more demanding installations. These protections ensure reliable operation in typical mechanical rooms and tighter spaces, while offering flexibility to adapt to varied building layouts and retrofit constraints.
Bluetooth remote commissioning enables off-site setup, parameter verification, and system health checks, reducing on-site visits and associated labor costs. For multi-unit HVAC deployments, technicians can diagnose and adjust drives from a central location, accelerating commissioning, improving consistency across units, and shortening time-to-value for new or expanded HVAC installations.
ROI comes from energy-efficient, variable-speed control that matches load with demand, reducing fan and pump running times. Lower energy consumption, combined with shorter commissioning and reduced maintenance visits thanks to built-in diagnostics and remote monitoring, translates to lower operating expenses and faster project payback for commercial buildings and industrial HVAC systems.
