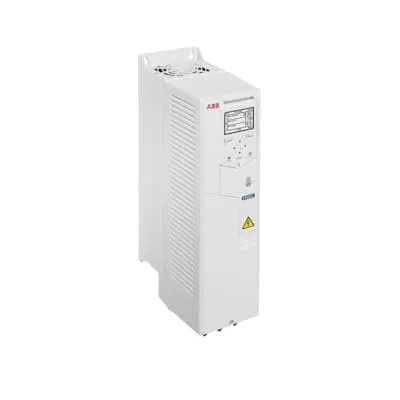

ABB 3AUA0000222378 HVAC Drive - UL 15 HP 460 V
Part Number: 3AUA0000222378
Quick Summary
ACH580 HVAC drive is a wall-mounted LV AC drive that precisely controls fans, pumps, and compressors in HVAC systems. For installers and operators, startup can be lengthy and error-prone without guided menus. It carries CE compliance and UL recognition for HVAC equipment, and ships in an IP21 enclosure with options for IP55 and flange mounting. By streamlining setup and enabling energy-efficient operation, it delivers faster deployment and lower operating costs in commercial and industrial HVAC projects.
Product Information
Extended Description
3AUA0000222378 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps and compressors → Business Impact: Reduces installation time and commissioning effort → Application: New air handling units and chillers, where rapid setup lowers project risk and accelerates uptime. Feature: HVAC-specific control panel with primary settings menu and help assistants → Business Impact: Decreases commissioning errors and operator training time → Application: Plant-wide retrofits or new builds requiring straightforward startup. Feature: Optional Bluetooth capability for remote commissioning and monitoring → Business Impact: Cuts on-site visits and enables remote fault diagnosis → Application: Large buildings or campuses needing remote performance optimization. Feature: IP21 wall-mount enclosure with optional IP55 and flange mounting → Business Impact: Flexible installation, space savings, and adaptable deployment → Application: Mechanical rooms with diverse mounting requirements. Feature: Energy-efficient operation and ABB ecosystem compatibility → Business Impact: Lower energy costs and simplified maintenance within existing ABB drives → Application: Commercial HVAC fleets and industrial facilities seeking standardized control.
Get a Quick Quote for a ABB 3AUA0000222378
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000222378?
Enquire Now
FAQs
The ACH580 HVAC drive is designed as a wall-mounted LV drive suitable for fans, pumps, and compressors in HVAC installations. It supports HVAC-specific controls, integrates with air handling units and chillers, and offers IP21 enclosure with optional IP55 mounting, making it compatible with many mechanical room layouts and retrofit projects.
Model 3AUA0000222378 corresponds to the ACH580 HVAC drive rated at 15 HP with a 23 A current draw at 460 V. It is designed for LV applications in HVAC, with IP21 enclosure standard and optional IP55. Certifications include CE and UL recognition for HVAC equipment to support compliance in commercial installations.
Installation is streamlined by an HVAC-specific control menu and built-in help assistants, reducing commissioning time and error potential. Its wall-mount IP21 enclosure saves space in mechanical rooms, while optional IP55 and flange mounts expand placement flexibility in constrained or rugged environments.
Yes, the ACH580 offers optional Bluetooth capability for remote commissioning and monitoring. This enables technicians to configure, troubleshoot, and optimize performance from a distance, reducing on-site visits and improving response times for HVAC performance issues.
Expect a faster return on investment from reduced commissioning time and lower energy consumption due to efficient motor control. Maintenance aligns with ABB’s drive ecosystem, enabling standardized parts and diagnostics, which simplifies service and extends the lifecycle of HVAC fleets across commercial and industrial deployments.
