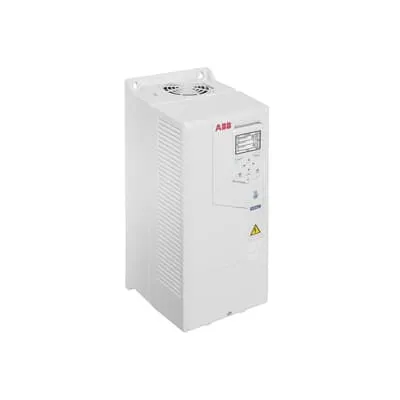

ABB 3AUA0000222379 ACH580 HVAC drive - UL 20 HP
Part Number: 3AUA0000222379
Quick Summary
ACH580 HVAC drive from ABB automates fans, pumps and compressors in commercial and industrial HVAC systems. It is designed to simplify commissioning and deliver precise motor control in demanding environments. Engineers often contend with long setup times, tuning challenges and energy waste when integrating variable speed drives into critical HVAC projects. The ACH580’s built-in HVAC-oriented features, IP21 wall-mount enclosure, and optional IP55 / flange mounting options address these pain points, while Bluetooth connectivity enables remote commissioning and monitoring. With an intuitive control panel and an HVAC primary settings menu, startup is faster and operation remains stable across load changes. The result is reduced downtime, lower energy consumption, and improved system reliability for facility managers and contractors.
Product Information
Extended Description
3AUA0000222379 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC-focused control for fans, pumps, and compressors → Business Impact: Streamlines commissioning and ensures smooth, reliable operation across varying HVAC loads → Application: Air handling units, rooftop units, and central plant equipment. Long-tail keywords integrated: HVAC drive for fans, HVAC pump control, compressor VFD, wall-mounted HVAC drive. Feature: Energy-efficient motor control with precise speed regulation → Business Impact: Reduces energy waste and lowers operating costs while maintaining indoor climate comfort → Application: Variable air volume systems and cooling coils. Feature: Intuitive HVAC settings with dedicated startup menu → Business Impact: Faster setup, fewer现场调试 hours, and consistent startup across equipment brands → Application: New installations and retrofit projects in data centers and office campuses. Feature: Flexible mounting and protection options (IP21 by default; IP55 and flange mounting available) → Business Impact: Easier installation in tight mechanical rooms and harsh environments, with enhanced protection for critical assets → Application: Wall-mounted enclosures in retrofit upgrades and new builds. Feature: Optional Bluetooth connectivity for remote commissioning and monitoring → Business Impact: Remote diagnostics and reduced site visits, improving maintenance efficiency and uptime → Application: Belt-and-suspenders remote sites and multi-building facilities.
Get a Quick Quote for a ABB 3AUA0000222379
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000222379?
Enquire Now
FAQs
The ACH580 is designed for simple wall mounting with an IP21 enclosure by default. Begin with mounting hardware and ensure a clean back panel, then connect LV three-phase 460 V supply, motor leads, and control wiring per the installation manual. Use the HVAC-specific settings menu on the control panel to complete commissioning, enabling remote monitoring if Bluetooth is enabled.
These specifications define the motor capacity the drive can reliably control: 20 HP output at up to 27 A current draw and a 460 V three-phase supply. They indicate suitability for mid-size HVAC motors such as fans and pumps used in air handling units and chillers, delivering smooth, energy-efficient speed control.
Yes. The ACH580 HVAC drive is engineered to manage fans, pumps, and compressors in HVAC equipment, including air handling units and chillers. Its HVAC-specific settings simplify configuration, while IP21 mounting and optional IP55 offer installation flexibility in mechanical rooms and equipment rooms typical of commercial buildings.
The ACH580 is UL-listed and available with IP21 protection by default, with IP55 and flange mounting options as needed. These certifications and ratings ensure compliance and protection in typical HVAC environments, supporting safe, reliable operation and easier approvals for building projects.
Benefits include reduced commissioning time due to HVAC-specific menus, energy savings from precise motor control, and fewer maintenance visits thanks to remote monitoring options (Bluetooth). In practice, these factors translate to lower operating costs, higher system reliability, and faster project payback in mid- to large-sized HVAC installations.
