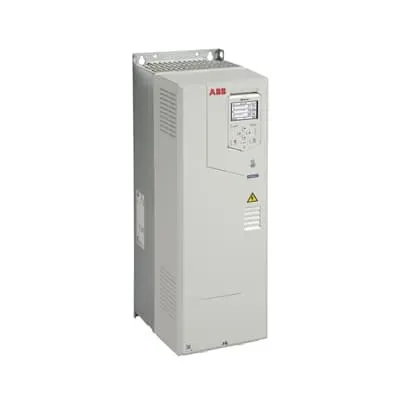

ABB 3AUA0000222383 LV AC wall-mounted drive - UL 50 Hp
Part Number: 3AUA0000222383
Quick Summary
ABB LV AC wall-mounted drive for HVAC systems delivers precise control of fans, pumps and compressors. Project delays often stem from lengthy setup and complex commissioning, but this drive simplifies startup with HVAC-focused menus. UL-listed and built for IP21 environments, with IP55 and flange options available, it meets common safety and reliability needs. In addition to the core functions, it supports remote commissioning via Bluetooth and is suitable for commercial and industrial HVAC projects. By aligning with 460 V systems, 65 A current and up to 50 Hp ratings, it delivers scalable performance for growing facilities. This combination supports energy-efficient operation, faster project turnaround, and easier maintenance for HVAC operators and engineers.
Product Information
Extended Description
3AUA0000222383 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control features manage fans, pumps and compressors. Business impact: smoother operation, improved energy efficiency, and reduced commissioning time. Application: use in air handling units (AHUs), pumps, and compressors across commercial and industrial HVAC installations. Intuitive control panel with HVAC-specific menus speeds startup and reduces field errors. Business impact: faster commissioning, fewer misconfigurations, and streamlined maintenance routines. Application: contractors and building services engineers in retrofit and new-build projects. Optional Bluetooth connectivity enables remote commissioning and monitoring. Business impact: less on-site labor, reduced downtime, and proactive diagnostics. Application: multi-site deployments and remote service scenarios. IP21 standard enclosure with IP55 and flange mounting options provides installation flexibility. Business impact: easier wall mounting and better protection in varied environments. Application: plant rooms, rooftops, and cramped mechanical spaces. 460 V input with 65 A rating and 50 Hp capability supports broad HVAC motor compatibility. Business impact: scalable performance for mid-range systems and straightforward integration with common motors. Application: fans, pumps, and compressors in HVAC networks. UL-listed certification ensures compliance and safety. Business impact: risk reduction and easier regulatory alignment. Application: any installed HVAC drive in regulated facilities.
Get a Quick Quote for a ABB 3AUA0000222383
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000222383?
Enquire Now
FAQs
3AUA0000222383 is designed for 460 V power systems and supports up to 65 A and 50 Hp, matching common HVAC motors. It is UL-listed and offered in an IP21 wall-mounted enclosure, with IP55 and flange options for tougher environments. When integrating, verify motor nameplate, follow standard VFD wiring practices, and select appropriate protection.
Bluetooth remote commissioning allows you to set up, tune, and monitor the drive from a location away from the equipment, cutting on-site commissioning time and minimizing field labor. This is especially valuable during retrofits or multi-site deployments where technicians must visit multiple HVAC units. It also supports diagnostics and secure updates, enhancing ongoing maintenance.
Applications include air handling units, rooftop and packaged HVAC units, chillers, and building automation loops where precise speed control improves airflow, pump efficiency, and cooling cycle stability. The device’s built-in HVAC-oriented settings streamline startup for installers working on commercial and light-industrial installations. With 460 V compatibility and robust protection, it scales from small to mid-size systems.
UL-listed, the standard IP21 enclosure is designed for wall mounting in HVAC rooms, while IP55 enclosure and flange-mount kits extend protection for harsher environments and varied installation geometries. UL-listed status ensures third-party safety validation, while IP ratings indicate ingress protection relevant to dusty or damp HVAC rooms for compliant deployments.
Deploying this drive typically reduces energy use through precise speed control for fans and pumps, decreases installation time with built-in features, and lowers maintenance costs via remote monitoring. In mid-size HVAC projects, these factors translate to shorter payback periods, improved system reliability, and faster project completion. ROI varies with load profiles, but the design targets energy efficiency and ease of service.
