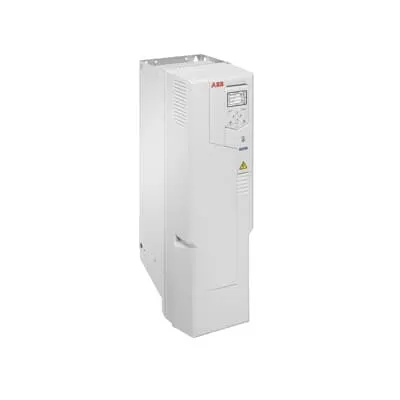

ABB ACH580-01-096A-4 LV AC Drive - UL 75 HP 460V
Part Number: 3AUA0000222385
Quick Summary
ABB ACH580-01-096A-4 HVAC drive delivers precise speed control for fans, pumps, and compressors in commercial HVAC systems. Installation and commissioning are often bottlenecks in projects; this drive reduces setup time with HVAC-specific menus and guided startup. Key certifications include UL listing and IP21 enclosure, with IP55 and flange-mount options to match harsh environments. Optional Bluetooth connectivity enables remote commissioning and monitoring, reducing on-site visits and accelerating troubleshooting. Compact, wall-mounted design supports faster deployment in equipment rooms and building automation sequences, lowering lifecycle costs.
Product Information
Extended Description
3AUA0000222385 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control features and HVAC-specific control panel with help assistants. Business Impact: Reduces commissioning time, simplifies startup, and lowers wiring costs. Application: Ideal for air handling units, chillers, and HVAC fans and pumps. Paragraph 2: Feature: IP21 enclosure standard with IP55 option for tougher environments. Business Impact: Improves protection against dust and moisture while enabling flexible mounting. Application: Suitable for wall-mounted installations in mechanical rooms and space-constrained areas. Paragraph 3: Feature: Optional Bluetooth connectivity for remote commissioning and monitoring. Business Impact: Cuts service travel time and accelerates fault diagnosis and maintenance. Application: Field service, building management system integration, remote oversight. Paragraph 4: Feature: Energy-efficient drive control optimized for HVAC loads. Business Impact: Reduces energy consumption and operating costs across HVAC circuits. Application: Fans, pumps, and compressors in large commercial buildings. Paragraph 5: Feature: Intuitive control panel with HVAC primary settings menu and help assistants. Business Impact: Lowers training requirements and speeds up start-up. Application: New installations and retrofit projects across HVAC systems.
Get a Quick Quote for a ABB 3AUA0000222385
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000222385?
Enquire Now
FAQs
The ACH580-01-096A-4 is designed for wall-mounted installation, typically in equipment rooms or mechanical spaces. It ships with an IP21 enclosure by default and supports optional IP55-rated flange-mount configurations for harsher environments. For installation, ensure a clean, level mounting surface, adequate clearance for cooling and wiring, and proper input/output wiring per the ABB installation guide. The built-in HVAC menus simplify commissioning, reducing on-site wiring and setup steps while preserving service accessibility for maintenance.
Key electrical specs include a 75 HP (horsepower) rating, 96 A current, and 460 V operating voltage. The drive is designed for LV (low-voltage) HVAC use with built-in features tailored for fans, pumps, and compressors. It offers an IP21 enclosure by default, with IP55 options available, and supports wall-mounted installation. These specs provide reliable performance for typical HVAC loads while enabling energy-efficient motor control in commercial buildings.
Yes. The ACH580-01-096A-4 is engineered for HVAC applications, including fans, pumps, compressors, AHUs, and chillers. Its built-in HVAC-centric control features, intuitive settings menu, and optional Bluetooth for remote commissioning make it well-suited for commercial building systems. The IP21 enclosure with IP55 option supports installation in ordinary to harsher environments, and the wall-mounted form factor simplifies integration with existing building automation and electrical infrastructure.
The drive carries UL certification as indicated by the UL-listed designation in the product description, supporting compliance with North American electrical standards. It offers IP ratings (IP21 by default, IP55 option) for environmental protection, and its wall-mounted HVAC-focused design aligns with standard industry practices for equipment rooms. If your project requires CE or other certifications, confirm availability with ABB for your region and application before procurement.
Expect reduced maintenance and improved uptime due to built-in diagnostics, remote commissioning via optional Bluetooth, and centralized control which eases troubleshooting. The drive’s energy-efficient motor control lowers operating costs for fans and pumps, contributing to a favorable return on investment over the system’s life cycle. The compact, wall-mounted design also accelerates installation, lowering project labor costs and enabling quicker deployment in retrofit or new-build HVAC projects.
