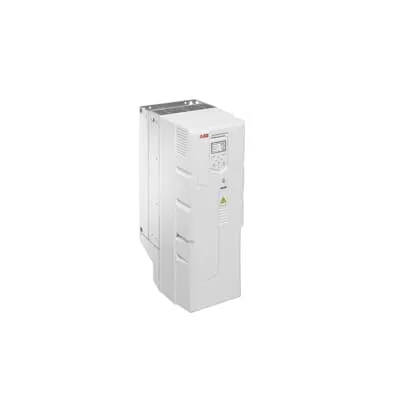

ABB 3AUA0000222386 LV AC HVAC Drive - UL 100 HP
Part Number: 3AUA0000222386
Quick Summary
ABB 3AUA0000222386 LV AC HVAC drive simplifies control of fans, pumps and compressors in commercial HVAC systems. Engineers often struggle with lengthy setup and commissioning when integrating variable-speed drives, but this unit bundles HVAC-specific features to speed startup and reduce downtime. UL-listed up to 100 HP and an IP21 enclosure provide reliable protection, with IP55 and flange-mount options available for harsher environments. Bluetooth-ready capability enables remote commissioning and monitoring when access is limited. The wall-mounted ACH580-01-124A-4 design combines compact footprint with intuitive controls, delivering energy-efficient operation and easier serviceability for retrofit projects and new installations alike.
Product Information
Extended Description
3AUA0000222386 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control features translate to smoother operation of fans, pumps, and compressors, reducing energy waste and delivering measurable efficiency gains in everyday running. The integrated logic simplifies sequencing for variable-air-volume systems, enabling faster commissioning and more stable start-ups, which lowers project risk and labor costs. IP21 protection is standard, with IP55 and flange mounting options available to extend reliability in stricter environments and across retrofits or new builds. The intuitive control panel with HVAC-specific menus accelerates setup, minimizes training time, and reduces debugging during the initial phase of operation. Optional Bluetooth capability enables remote commissioning and ongoing monitoring, cutting on-site visits and enabling proactive maintenance. This drive is compatible with air handling units, chillers, and other HVAC equipment, including ACH580-01-124A-4 configurations, for flexible deployment in commercial facilities and data centers.
Get a Quick Quote for a ABB 3AUA0000222386
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000222386?
Enquire Now
FAQs
The drive bundles HVAC-specific control features and an intuitive primary settings menu, enabling faster setup for fans, pumps, and compressors. Its wall-mounted design reduces space needs, while built-in diagnostics and remote-capable Bluetooth support minimize commissioning time and on-site visits, delivering lower labor costs and quicker system readiness.
The unit operates at 460 V with a continuous current rating of 124 A and is UL-listed up to 100 HP. This combination supports robust HVAC applications, including pumps, fans, and compressors in medium-to-large installations, while offering reliable protection with IP21 enclosure and optional IP55 configurations.
Yes. The ACH580-01-124A-4 is designed for HVAC equipment such as air handling units, chillers, and associated fans and pumps. Its built-in HVAC control features, compact wall-mount form, and compatibility with AHU and chiller packages make it a versatile choice for both retrofit projects and new installations.
The standard is IP21, suitable for typical indoor HVAC rooms. For harsher environments or areas with higher cleanliness or exposure, IP55 options and flange mounting units are available to enhance protection and mounting flexibility, helping ensure reliability in varying facility conditions.
Yes. The ACH580-01-124A-4 offers optional Bluetooth capability for remote commissioning and monitoring. This enables off-site configuration, diagnostics, and performance tracking, reducing field service time and supporting proactive maintenance and energy-management strategies.
