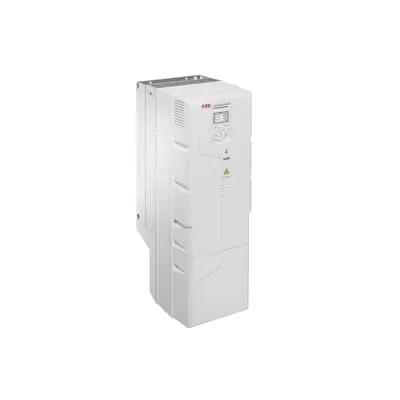

ABB ACH580-01-156A-4 HVAC Drive - IP21 Enclosure
Part Number: 3AUA0000222387
Quick Summary
ABB ACH580-01-156A-4 HVAC Drive controls fans, pumps and compressors in HVAC systems. Engineers often face lengthy setup and integration tasks that delay commissioning and increase project costs. This drive is UL-listed with an IP21 wall-mount enclosure and offers optional IP55 flange mounting for harsh environments, plus Bluetooth connectivity for remote commissioning, monitoring, and service. The built-in HVAC-focused features and intuitive control panel speed startup, improve reliability, and simplify maintenance across ongoing operations and service windows. By combining precise motor control with energy-saving capabilities, it delivers measurable business value for building services, facilities managers, and industrial HVAC applications across commercial and process environments.
Product Information
Extended Description
3AUA0000222387 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control capabilities. Business Impact: Reduces installation time and accelerates commissioning by providing HVAC-specific logic and ready-to-use settings. Application: Ideal for fans, pumps, and compressors in air handling units and chillers, enabling rapid deployment and consistent operation. Feature: Intuitive HVAC primary settings menu with help assistants. Business Impact: Shortens operator training and minimizes startup errors, lowering lifecycle costs. Application: Building automation projects where technicians need straightforward commissioning and ongoing adjustments without specialized programming. Feature: Optional Bluetooth capability for remote commissioning and monitoring. Business Impact: Enables off-site tuning and diagnostics, reducing site visits and downtime. Application: Large facilities or multi-site deployments where technicians monitor performance from a control room or service hub. Feature: IP21 enclosure with wall-mount option and IP55/flange mounting availability. Business Impact: Provides flexible installation in clean rooms or harsher environments, improving equipment protection and uptime. Application: Industrial HVAC rooms and equipment rooms with space constraints or exposure to dust and moisture. Feature: UL-listed, 460 V, 156 A, 125 Hp rating. Business Impact: Ensures safety compliance and compatibility with high-power HVAC motors, reducing risk and stock complexity. Application: Commercial and industrial HVAC drives that require robust power handling and regulatory conformity. Feature: Energy-efficient motor control and reliable performance. Business Impact: Supports energy savings and reduced operating costs while maintaining precise process control. Application: Continuous operation in critical HVAC loads like air handlers and pumping plants.
Get a Quick Quote for a ABB 3AUA0000222387
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000222387?
Enquire Now
FAQs
The ACH580-01-156A-4 HVAC Drive includes HVAC-specific built-in control features and a dedicated primary settings menu, reducing wiring, programming, and commissioning time. Its compact wall-mount design simplifies installation in equipment rooms, while the IP21 enclosure protects the drive in standard environments. This combination shortens project timelines and lowers labor costs for commissioning teams.
Yes. The drive is designed to control common HVAC motors such as fans, pumps, and compressors used in air handling units, boilers, chillers, and packaged units. Its 460 V, 156 A, 125 Hp ratings accommodate typical mid-size HVAC loads, and its compact form factor supports integration with space-constrained control cabinets and mechanical rooms.
The ACH580-01-156A-4 is UL-listed for safety and reliability. It offers an IP21 enclosure for wall mounting, with optional IP55 flange mounting for more demanding environments. These ratings help ensure compliance with industrial standards while enabling installations in varied building and plant locations.
Yes. The drive provides optional Bluetooth connectivity, allowing remote commissioning, monitoring, and diagnostics. This capability reduces on-site visits, speeds troubleshooting, and supports maintenance planning across multi-site operations, making it well-suited for facilities with centralized control rooms or service centers.
The ACH580 delivers energy-efficient motor control, reduced installation and commissioning time, and improved system reliability. Its HVAC-focused features streamline startup and operation for fans, pumps, and air handling equipment, while IP-rated enclosures and mounting options expand installation flexibility in commercial and industrial facilities.
