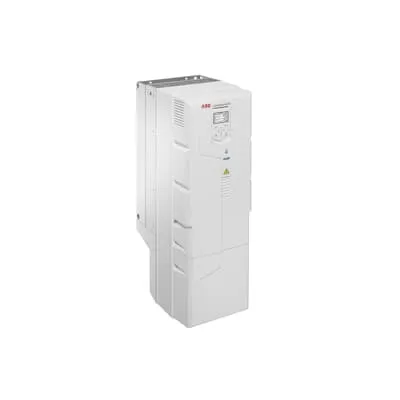

ABB ACH580-01-180A-4 LV AC Drive for HVAC - IP21
Part Number: 3AUA0000222388
Quick Summary
ABB ACH580-01-180A-4 LV AC drive precisely controls HVAC fans, pumps and compressors for reliable building comfort. Installation and commissioning often lag, but this model reduces risk with an HVAC-specific primary settings menu and intuitive help assistants. It carries UL listing and an IP21 enclosure, with IP55 and flange-mount options available for tougher environments. Bluetooth capability enables remote commissioning and monitoring, cutting field visits and enabling faster start-up. The device aligns with energy-efficiency goals and supports scalable HVAC optimization, offering a practical balance of performance, reliability, and total cost of ownership for engineers and procurement teams.
Product Information
Extended Description
3AUA0000222388 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control features enable precise regulation of fans, pumps and compressors, delivering smoother operation and energy efficiency in HVAC installations. By integrating drive ramping, torque control and process logic, the ACH580-01-180A-4 reduces motor wear and helps meet building-energy targets. The drive is well suited for air-handling units, rooftop units, and chilled-water systems where coordinated variable-speed control matters for comfort and efficiency. HVAC-focused primary settings menu and help assistants simplify startup, commissioning and ongoing operation. This translates to faster project timelines, fewer field service calls, and more consistent performance across sites. The result is a lower total cost of ownership and easier compliance with building-energy guidelines during retrofits or new builds. Bluetooth capability enables commissioning and monitoring from a distance. This reduces on-site visits, speeds diagnostics and supports predictive maintenance across multi-building deployments, delivering lower maintenance costs and faster fault resolution. Enclosure and mounting flexibility include IP21 standard with IP55 options and flange mounting. This provides improved protection in varied environments and allows wall or equipment-room installation, accelerating deployment in mechanical suites and data center-adjacent HVAC spaces. UL-listed with an 180 A rating at 460 V and compatibility with up to 150 Hp motors. This combination ensures regulatory compliance, reliable performance in mid-size HVAC drives, and a smoother path to project sign-off and long-term serviceability. Overall, the ACH580-01-180A-4 delivers energy-efficiency gains, simplified commissioning and robust installation options, enabling engineers to meet performance targets while controlling lifecycle costs in modern building automation.
Get a Quick Quote for a ABB 3AUA0000222388
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000222388?
Enquire Now
FAQs
The ACH580-01-180A-4 is designed for 460 V, up to 180 A, and supports up to 150 Hp motors, making it suitable for ABB motor applications and common HVAC loads like fans, pumps and compressors. It integrates HVAC-specific control features and a wall-mounted form factor, ensuring smooth interoperability with air-handling units and chilled-water systems while meeting UL requirements.
This drive ships with a standard IP21 enclosure suitable for wall-mounted installation. Optional IP55 enclosures and flange mounting units are available for harsher environments or tighter mechanical integration. The built-in HVAC settings menu and intuitive startup assistants further streamline installation, reducing commissioning time and site risk during retrofits or new-build projects.
Key specs include 460 V input, up to 180 A current, and compatibility with motors up to 150 Hp. The drive provides HVAC-focused control for fans, pumps and compressors, enabling energy-efficient variable-speed operation. Bluetooth remote monitoring is available, and UL-listed compliance supports reliable performance in commercial HVAC deployments.
The ACH580-01-180A-4 is UL-listed and designed for HVAC use with a standard IP21 enclosure; IP55 options are available for more demanding environmental conditions. These certifications support regulatory compliance and reliability in mid-size HVAC deployments, while the Bluetooth feature enables convenient remote management.
By reducing commissioning time, enabling remote diagnostics, and delivering energy-efficient, precise motor control, the ACH580-01-180A-4 lowers total cost of ownership. Fewer on-site service visits, faster fault resolution, and improved system performance translate to quicker ROI in multi-zone buildings and new installations alike.
