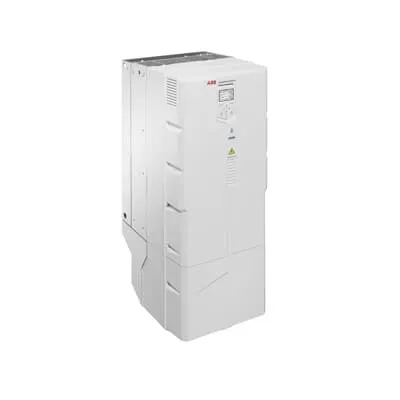

ABB ACH580-01-361A-4 HVAC Drive - 300 HP, UL Listed
Part Number: 3AUA0000222391
Quick Summary
ABB ACH580-01-361A-4 HVAC drive is a wall-mounted LV controller that optimizes fans, pumps, and compressors in HVAC systems. Many engineers struggle with lengthy setups and inconsistent performance during startup and operation. The drive is UL-listed with IP21 protection, and optional IP55 and flange mounting units provide rugged installation for demanding environments. Bluetooth commissioning enables remote setup and monitoring, reducing on-site visits and commissioning time. This solution delivers energy-efficient operation, faster startup, and simplified maintenance, helping facilities meet energy targets while lowering total cost of ownership.
Product Information
Extended Description
3AUA0000222391 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
The ACH580-01-361A-4 packs HVAC-focused intelligence into a compact wall-mounted drive, translating complex control logic into measurable efficiency gains for fans and pumps. By offering built-in HVAC primary settings and help assistants, it shortens commissioning time and improves startup reliability, delivering smoother operation for air-handling units and chillers. Energy management is enhanced through precise speed control at 460 V with a 361 A rating, supporting up to 300 HP outputs and reducing energy waste in variable-load scenarios. Its IP21 enclosure is designed for standard wall installation, with IP55 and flange-mount options that tolerate harsher environments and tighter spaces. Optional Bluetooth connectivity enables remote diagnostics and updates, cutting maintenance costs and improving uptime. Compatibility with ABB control ecosystems simplifies software updates and spare-part planning, translating to lower total cost of ownership.
Get a Quick Quote for a ABB 3AUA0000222391
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000222391?
Enquire Now
FAQs
The ACH580-01-361A-4 is designed for HVAC systems that require reliable variable speed control of fans, pumps and compressors. It excels in air-handling units, chillers, rooftops, and packaged systems, offering built-in HVAC control logic, intuitive setup menus, and ABB control integration for optimized energy use and operational stability.
By delivering precise speed control at 460 V, up to 361 A, the drive minimizes fan and pump energy consumption, reducing peak loads. HVAC-specific primary settings simplify startup, while help assistants guide configuration, resulting in faster commissioning and smoother ramping to operating speed.
Yes. The unit ships with IP21 protection as standard for wall-mounted installation, with optional IP55 flange-mount variants for harsher environments. It is UL-listed, aligning with common electrical safety standards used in commercial and light-industrial HVAC projects.
The ACH580-01-361A-4 is designed for wall mounting with a compact footprint, minimizing space in equipment rooms. Consider IP21 as baseline, plan for IP55 options if humidity or dust is a concern, and ensure a 460 V three-phase supply, correct wiring, and adequate ventilation for optimal performance and cooling.
Expect reduced installation time from HVAC-specific settings and intuitive tuning, lowering commissioning labor. Remote monitoring via Bluetooth reduces on-site visits, and accurate speed control lowers energy costs. Combined with ABB ecosystem compatibility, this drive supports better spare parts planning and predictable maintenance, improving uptime with a favorable total cost of ownership.
