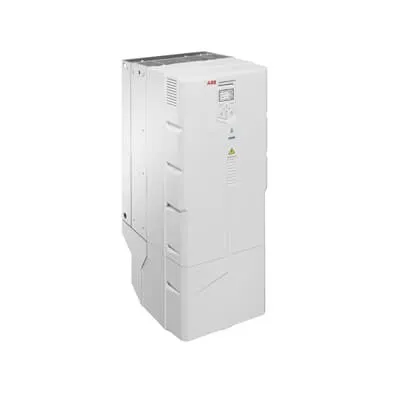

ABB ACH580-01-414A-4 HVAC Drive - UL Listed 350 Hp/414 A/460 V
Part Number: 3AUA0000222392
Quick Summary
ABB ACH580-01-414A-4 HVAC drive delivers precise, energy-efficient speed control for HVAC fans, pumps, and compressors in commercial buildings. The design addresses the common pain point of lengthy commissioning and complex setup by providing HVAC-specific primary settings and an intuitive control panel. It carries CE marking and UL listing, with IP21 protection and optional IP55 or flange-mount variants to fit different installation environments. Built-in features and a Bluetooth option for remote commissioning further reduce site visits and startup time, delivering faster project turnover. This drive integrates smoothly with ABB automation ecosystems, unlocking scalable energy management and simplified maintenance across multiple HVAC assets.
Product Information
Extended Description
3AUA0000222392 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC control features provide HVAC-specific parameter sets and an intuitive primary settings menu. Business impact: faster startup, fewer misconfigurations, and consistent performance across equipment like fans, pumps, and compressors. Application: air-handling units and rooftop units in commercial buildings. Bluetooth-enabled commissioning option allows remote setup and monitoring. Business impact: reduces on-site visits and service time, accelerating project schedules and lowering labor costs. Application: commissioning new chillers and retrofits without on-site travel. IP21 wall-mounted enclosure offers straightforward installation with reliable protection. Business impact: simpler integration into existing rooms and compliance with safety standards, shortening installation time. Application: wall-mounted HVAC drives in mechanical rooms. Optional IP55 and flange mounting variants increase ruggedness for harsher environments. Business impact: extended service life and reduced maintenance in dusty or moist environments. Application: data centers, manufacturing floors, or outdoor equipment rooms where protection matters. Energy-efficient operation through built-in control strategies and motor protection features. Business impact: measurable energy savings and improved equipment life; reduces total cost of ownership. Application: fans, pumps, and compressors across HVAC systems.
Get a Quick Quote for a ABB 3AUA0000222392
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000222392?
Enquire Now
FAQs
The ACH580-01-414A-4 is designed for LV AC HVAC applications and supports direct control of fans, pumps, and compressors through HVAC-specific parameter sets. Its built-in settings simplify integration with air-handling units and chillers, enabling smooth interfacing with existing DDC/automation workflows and reducing wiring complexity during upgrades.
Key specs include a 460 V three-phase supply, 414 A current rating, and 350 Hp nominal rating. The device is UL listed and configured with an IP21 enclosure for wall-mount installation, with options for IP55 and flange mounting to suit tougher environments and other site requirements.
Yes, the ACH580-01-414A-4 offers an optional Bluetooth capability that enables remote commissioning and monitoring. This reduces on-site visits, expedites startup, and supports ongoing performance monitoring from a central location.
The standard installation is wall-mounted with IP21 protection, ideal for typical mechanical rooms. For harsher or dust-prone environments, IP55 variants and flange mounting options are available to improve durability and enable more flexible mounting configurations.
By delivering HVAC-specific, optimized motor control and built-in protection features, the ACH580-01-414A-4 reduces energy consumption and wear on driven equipment. Fewer site visits and faster commissioning also lower maintenance costs and improve total cost of ownership across multiple HVAC assets.
