ABB 3AUA0000225640 Motors & Drives - UL Type 1 E-Clipse
Part Number: 3AUA0000225640
Quick Summary
The ABB ACH580-VCR-03A0-4 HVAC drive controls motors in commercial HVAC systems. It addresses space constraints, downtime, and safety when upgrading legacy drives by delivering an integrated bypass and disconnect in one panel. Key certifications and features include UL listing with a NEMA Type 1 enclosure and electronic motor overload protection, elevating reliability in demanding environments. With a door-mounted control panel and serial communications, it supports quick commissioning, building-system integration, and scalable horsepower from 1 to 75 hp. This combination reduces installation complexity for commissioning teams and delivers predictable performance across diverse HVAC loads. Engineers appreciate the solid enclosure, integrated safety interlocks, and straightforward local and remote control options.
Product Information
Extended Description

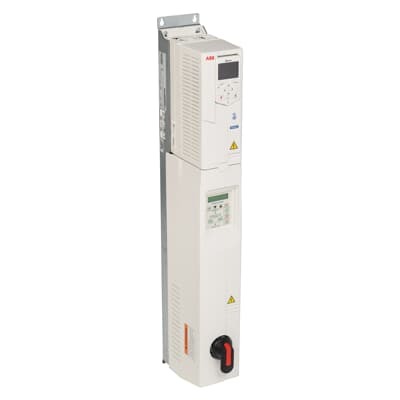

3AUA0000225640 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1 enclosure with a bypass motor starter and is available from 1 to 75 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker, both including fast acting drive fuses, with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Feature: E-Clipse bypass integration with a bypass motor starter provides a single, streamlined path to bypass the drive during maintenance while preserving control logic. Business Impact: reduces mean time to repair by enabling fast bypass without power removal or disassembly, delivering up-time gains for critical equipment. Application: ideal for HVAC fans and pumps in commercial buildings where reliability and serviceability are paramount. Feature: UL-listed, NEMA Type 1 enclosure combined with an optional input disconnect or circuit breaker and fast-acting drive fuses. Business Impact: simplifies installation, enhances safety, and reduces wiring complexity in panel design. Application: indoor HVAC panels in office buildings, hospitals, and data centers. Feature: Door-mounted control panel with a graphical display for local control. Business Impact: accelerates commissioning, troubleshooting, and parameter tuning without external equipment. Application: service calls and on-site adjustments during commissioning and maintenance. This layout also helps technicians document settings for audits. Feature: Electronic motor overload protection and built-in protection features. Business Impact: protects motors, reduces nuisance trips, and extends motor lifespan, lowering maintenance costs over the life of the system. Application: motors driving variable torque HVAC loads and fans. Feature: External control connections and serial communications capability. Business Impact: enables seamless integration with building management systems and remote monitoring, improving oversight and control. Application: retrofit projects and new installation in smart buildings. Feature: Wide horsepower range from 1 to 75 hp and voltages of 230/460/575 V. Business Impact: provides scalable options for a broad set of HVAC loads, reducing the need to inventory multiple drives. Application: retrofit and new installs across commercial systems. Feature: Safety and reliability enhancements including a padlockable OFF position. Business Impact: strengthens lockout/tagout procedures and operator safety, reducing risk during maintenance. Application: preventive maintenance and shutdown planning.
Get a Quick Quote for a ABB 3AUA0000225640
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000225640?
Enquire Now
FAQs
When installing the ACH580-VCR-03A0-4, plan for a UL-listed, NEMA Type 1 enclosure with space for the door-mounted control panel. Use the available input disconnect or circuit breaker and fast-acting fuses to meet code requirements. Ensure external control connections and serial communications are wired to your BAS or PLC per ABB guidelines, enabling smooth commissioning and future serviceability.
Key specs include 1 to 75 hp capacity and a supply range of 230/460/575 V, making it suitable for varied HVAC equipment. The E-Clipse bypass allows a bypass starter, while electronic motor overload protection guards the motor during peak loads. These features translate to efficient speed control for fans and pumps, reduced energy waste, and improved system stability under variable demand.
Yes, the ACH580-VCR-03A0-4 is designed for robust indoor HVAC applications with a UL Type 1 enclosure and integrated safety features. The bypass option supports maintenance without full shutdown, and the door interlocks plus padlockable OFF help meet stringent safety protocols. For data centers and hospitals, this means reliable cooling with minimized risk to critical loads.
The drive is UL-listed and features a NEMA Type 1 enclosure, providing recognized safety and suitability for indoor installation in harsh environments. While the documentation highlights these certifications, users should verify local code requirements and any CE or IP-related expectations for their region or project scope with ABB support.
The E-Clipse bypass reduces maintenance downtime by enabling rapid bypass without removing the drive, while the door-mounted control panel simplifies commissioning and troubleshooting. Combined with motor overload protection and safety interlocks, this lowers maintenance costs, extends motor life, and accelerates project timelines, delivering a favorable return on investment for mid-to-large HVAC retrofits and new installations.
