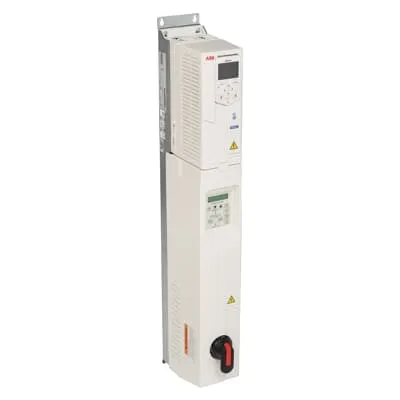

ABB ACH580-VCR-07A6-4 HVAC Drive - E-Clipse Bypass
Part Number: 3AUA0000225643
Quick Summary
ABB ACH580-VCR-07A6-4 HVAC drive with E-Clipse bypass provides precise motor control for commercial and industrial HVAC systems. It addresses the challenge of integrating a bypass starter with a UL-listed enclosure in compact footprints. This drive is UL-listed with a NEMA Type 1 enclosure and CE readiness, supporting safe indoor use and regulatory alignment for global projects. The device range covers 1 to 75 hp at 230/460/575 V, offering scalable motor control for varying loads. By combining robust protection features with local and remote control options, it reduces downtime, simplifies maintenance, and delivers efficiency gains essential for modern building automation and energy management.
Product Information
Extended Description
3AUA0000225643 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1 enclosure with a bypass motor starter and is available from 1 to 75 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker, both including fast acting drive fuses, with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Integrated E-Clipse bypass with bypass motor starter streamlines installation and minimizes panel wiring, delivering a compact, reliable bypass solution. This reduces field wiring errors and simplifies service during startup or maintenance, translating to lower commissioning time and fewer trips to the mechanical room. It is particularly beneficial for HVAC systems where a bypass must be engaged quickly without power loss, such as rooftop units and large air handling installations. Input disconnect switch or circuit breaker is included, ensuring clear isolation for maintenance and compliant shutdowns. The fast-acting drive fuses provide rapid protection and clear fault isolation, lowering arc-flash risk and downtime. This configuration supports US safety standards and eases on-site testing and commissioning during system upgrades. Horsepower range 1–75 hp and voltage options 230/460/575 V provide sizing flexibility to match diverse HVAC loads. The ability to scale up or down reduces over-provisioning and optimizes energy use, improving total cost of ownership. This makes the ACH580-VCR-07A6-4 suitable for both retrofit projects and new builds in commercial buildings. Door-mounted graphical control panel enables local configuration, diagnostics, and troubleshooting without a separate operator station. This reduces field trips and accelerates fault resolution, supporting preventive maintenance programs. Combined with serial communications, it supports remote monitoring and integration with building management systems. Serial communications capability supports plant-network integration and Industry 4.0 readiness, enabling data collection, remote control, and proactive energy management. Compatibility with ABB's automation ecosystem helps align HVAC drives with other motors and drives in the same control architecture. The design also emphasizes reliability through electronic motor overload protection, contributing to consistent performance in demanding environments.
Get a Quick Quote for a ABB 3AUA0000225643
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000225643?
Enquire Now
FAQs
When installing the ACH580-VCR-07A6-4, ensure the UL Type 1 enclosure is mounted indoors with proper clearances for service access. Route power and motor leads to the integrated bypass starter and connect the bypass control wiring per the wiring diagram. Use the door-mounted graphical panel for local setup and verify fuse protection and disconnects are in place to meet local electrical codes. This setup minimizes commissioning risks and accelerates start-up in HVAC applications.
Yes. The ACH580-VCR-07A6-4 supports a voltage range of 230/460/575 V and a horsepower range of 1–75 hp, making it suitable for a wide array of HVAC loads from smaller equipment to larger air handling systems. Its integrated bypass and protection features simplify retrofits and new installations while ensuring reliable motor control across these voltages.
The ACH580-VCR-07A6-4 is UL-listed with a NEMA Type 1 enclosure, supporting safe indoor operation and strict electrical safety practices. It also carries CE readiness for international deployments, helping ensure regulatory alignment when installed in global facilities. These certifications enable compliance with common industrial and building standards for HVAC drives.
Variable-speed control enabled by the ACH580-VCR-07A6-4 provides precise fan and pump optimization, reducing energy consumption on variable HVAC loads. The integrated E-Clipse bypass minimizes downtime during maintenance by allowing quick bypass engagement without full drive power. The door-mounted display facilitates rapid diagnostics, lowering mean time to repair (MTTR) and prolonging equipment life.
The drive includes serial communications capability, enabling integration with building management systems and plant networks. This supports remote monitoring, data collection, and centralized control for energy management and preventive maintenance programs. It helps align HVAC drives with broader automation architectures for Industry 4.0 readiness.
