ABB ACH580-VCR-014A-4 HVAC Drive - E-Clipse Bypass
Part Number: 3AUA0000225645
Quick Summary
The ABB ACH580-VCR-014A-4 HVAC drive is a compact VFD for HVAC system optimization. Engineers face space constraints, safety compliance, and wiring complexity when retrofitting equipment. This solution is UL-listed in a NEMA Type 1 enclosure with ABB E-Clipse bypass, a bypass starter, and electronic motor overload protection, all door-mounted with a padlockable OFF switch for secure operation. It covers 1 to 75 hp at 230/460/575 V and includes a door-mounted control panel plus serial communications for local and remote control. The design streamlines installation, reduces panel footprint, and supports reliability and maintainability, delivering measurable efficiency gains and simplified compliance workflows.
Product Information
Extended Description

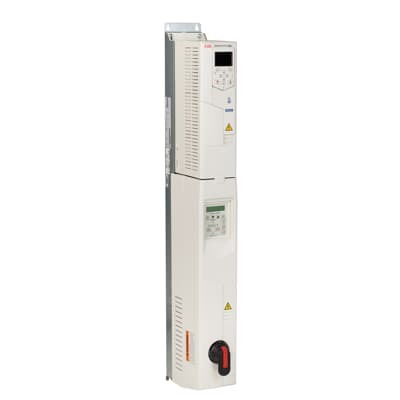

3AUA0000225645 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1 enclosure with a bypass motor starter and is available from 1 to 75 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker, both including fast acting drive fuses, with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Feature → Business Impact → ApplicationIntegrated ABB E-Clipse bypass with bypass starter and fast-acting fuses enables safe bypass without external relays, reducing wiring complexity and minimizing downtime during maintenance. This translates to quicker service in commercial HVAC retrofits and new builds where uptime matters.Input disconnect switch or circuit breaker with a door-mounted, interlocked switch (padlockable OFF) simplifies code compliance and lockout/tagout procedures, improving safety during installation and service across industrial facilities and data centers.Electronic motor overload protection provides precise motor protection and fast fault isolation, lowering unplanned outages and extending motor life in fans, pumps, and compressors used in large-scale HVAC systems.Door-mounted control panel with graphical display plus external control connections and serial communications enables seamless local control and remote monitoring, improving commissioning speed and integration with building management systems.UL-listed NEMA Type 1 enclosure and compact footprint reduce cabinet space requirements and installation costs, streamlining retrofits and new installations in equipment rooms and utility spaces.1–75 hp at 230/460/575 V makes this drive suitable for a broad range of HVAC equipment, from airflow fans to economizers and small compressors, delivering flexible deployment across multiple project types.
Get a Quick Quote for a ABB 3AUA0000225645
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000225645?
Enquire Now
FAQs
The ACH580-VCR-014A-4 supports 1 to 75 HP motors and voltages of 230/460/575 V, making it suitable for a wide range of HVAC equipment, from large fans to small compressors. Its integrated bypass and protection features simplify retrofits by reducing wiring, space needs, and integration effort, while maintaining safe operation during transitions from legacy controls.
Key safety features include an input disconnect or circuit breaker with fast-acting fuses, a door-mounted interlocked switch that is padlockable in OFF, and an integrated ABB E-Clipse bypass with bypass starter. Together, these elements support lockout/tagout compliance, safer maintenance, and reduced risk during commissioning and routine servicing.
Yes. The ACH580-VCR-014A-4 provides serial communications capability and external control connections, enabling seamless integration with building automation systems. This supports remote monitoring, fault diagnostics, and centralized control, which accelerates commissioning and ongoing optimization for facilities with multiple HVAC zones.
The drive is housed in a UL-listed NEMA Type 1 enclosure, offering proven protection for indoor industrial environments. This configuration supports compliant installation in many markets and aligns with common safety and electrical enclosure standards used in commercial HVAC deployments.
Deploying this drive can reduce cabinet space and wiring complexity, lowering installation costs. Its integrated protection and bypass features reduce downtime, while local and remote monitoring capabilities improve maintenance planning. Over time, energy efficiency and reduced fault incidents contribute to favorable ROI, especially in facilities with multiple HVAC loops.
