ABB ACH580 3AUA0000225647 HVAC Drive - E-Clipse Bypass
Part Number: 3AUA0000225647
Quick Summary
ABB ACH580 HVAC drive delivers precise variable-speed control for commercial and industrial HVAC systems, optimizing fan and pump performance. When downtime hits, the built-in E-Clipse bypass and integrated disconnect simplify maintenance and reduce service time during critical outages. UL-listed with a NEMA Type 1 enclosure ensures safe, compliant indoor installation, while electronic motor overload protection guards against fault conditions. Its flexible 1 to 75 hp range at 230/460/575 V supports a wide variety of loads, driving energy efficiency and lower operating costs. With a door-mounted graphical control, external connections, and serial communications, the ACH580 integrates smoothly with building management systems for remote monitoring and reliable operation.
Product Information
Extended Description

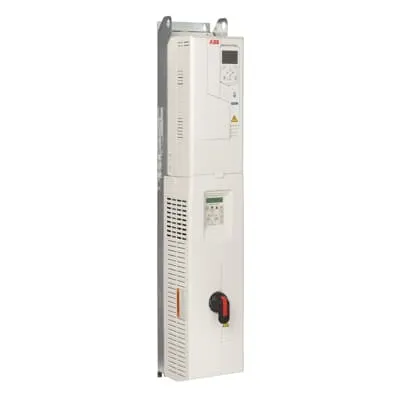

3AUA0000225647 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1 enclosure with a bypass motor starter and is available from 1 to 75 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker, both including fast acting drive fuses, with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
The ACH580 HVAC drive combines the E-Clipse bypass with a dedicated bypass starter and an optional input disconnect, enabling service without fully removing the drive from the electrical panel. This arrangement translates to faster maintenance, fewer field wiring changes, and reduced downtime for HVAC fans and pumps. UL listing and a NEMA Type 1 enclosure provide a robust, indoor-safe installation while the door-mounted OFF switch supports quick, lockable safety during service. Electronic motor overload protection guards windings against fault conditions, lowering nuisance trips and extending motor life. A door-mounted graphical control panel, external control connections, and serial communications capability make commissioning and BMS integration straightforward, speeding routine checks and fault diagnostics. The 1 to 75 hp, 230/460/575 V specification delivers scalable performance for a wide range of HVAC loads, reducing spare parts and procurement complexity. Compact packaging with built‑in fast-acting fuses and centralized control supports retrofit projects and new buildings alike.
Get a Quick Quote for a ABB 3AUA0000225647
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000225647?
Enquire Now
FAQs
The ACH580 supports 1 to 75 hp at 230/460/575 V, with a UL-listed NEMA Type 1 enclosure and a built‑in bypass starter. It includes an integrated input disconnect, fast-acting drive fuses, and a door-mounted control panel, making it suitable for HVAC fans, pumps, and compressors in retrofit and new-build projects. External control connections enable BMS communication.
The E-Clipse bypass provides a safe, quick bypass path for motor starters during maintenance, allowing testing without removing the drive from the panel. This reduces downtime, simplifies commissioning, and minimizes wiring changes. The bypass is integrated with a fast-acting fuse network to protect both drive and motor during service. This feature enhances technician safety during field work.
Yes; the ACH580 is designed for HVAC applications such as building supply and exhaust fans and cooling pumps, offering a wide horsepower range and 230/460/575 V capability. It includes electronic motor overload protection, a door-mounted control panel, and serial communications for integration with building management systems. The drive's bypass capability and compact enclosure simplify retrofits and new installations alike.
The ACH580 is UL-listed and housed in a NEMA Type 1 enclosure, ensuring safe indoor installation in typical commercial spaces. It includes electronic motor overload protection to guard windings during start-up and variable loading. A door-mounted control panel enables local commissioning and diagnostics, while serial communications support seamless data exchange with building management systems and remote monitoring platforms.
By consolidating drive, bypass, protection, and control in a single enclosure, the ACH580 reduces wiring, simplifies maintenance, and shortens service windows. Integrated motor protection minimizes wear and costly trips, while energy-efficient control algorithms optimize fan and pump loads across operating conditions. For project teams, this translates to lower total cost of ownership, faster project delivery, and scalable HVAC upgrades.
