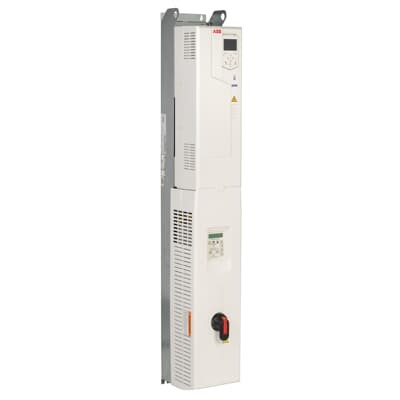

ABB ACH580-VCR-065A-4 HVAC Drive - UL Type 1 E-Clipse Bypass
Part Number: 3AUA0000225651
Quick Summary
The ABB ACH580-VCR-065A-4 HVAC drive controls and protects HVAC motors in commercial and industrial cooling and ventilation systems. Facility managers struggle with downtime from motor faults, complex wiring, and the need for safe, compliant isolation. The ACH580-VCR-065A-4 integrates a bypass starter and a door-mounted control panel to streamline maintenance, improve safety, and simplify commissioning. It supports 1 to 75 hp at 230/460/575 V and offers built-in electronic overload protection, serial communications, and external control connections. With a UL (NEMA) Type 1 enclosure, this drive delivers reliable operation in typical facility environments, helping you achieve greater system uptime and easier procurement while supporting ongoing optimization of industrial automation and motor control strategies.
Product Information
Extended Description
3AUA0000225651 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1 enclosure with a bypass motor starter and is available from 1 to 75 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker, both including fast acting drive fuses, with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Feature → Business Impact → Application: The ACH580-VCR-065A-4 includes ABB E-Clipse bypass with an integrated bypass motor starter, which allows safe bypass of the drive during maintenance without full drive removal, reducing downtime and labor costs in HVAC commissioning and repair scenarios. This delivers faster service and improved system availability for critical cooling and ventilation applications in commercial buildings and process facilities. Application: Use in chiller, AHU, and rooftop unit installations where quick bypass capability shortens outage windows and keeps critical processes online. The drive’s fast-acting drive fuses and interlocked door with padlockable OFF enhance electrical safety and regulatory compliance during service work, lowering risk for maintenance teams and facility managers. Application: Applicable to spaces requiring disciplined lockout/tagout procedures and secure access control. The UL (NEMA) Type 1 enclosure provides a recognized level of protection for indoor installations, simplifying site compliance. The door-mounted control panel with graphical display supports local control and diagnostics, reducing field visits for routine configuration. Application: Local control for startups, parameter adjustments, and quick troubleshooting in equipment rooms. It supports 230/460/575 V with a 1–75 hp range, giving a single drive family that scales with HVAC demands while reducing spare parts inventory. Application: Multi-voltage installations across new builds and retrofits. The ability to choose between input disconnect switches or circuit breakers, along with external control connections and serial communications, enables seamless integration into building management systems and industrial automation networks. Application: Integrate with BACnet/Modbus networks to deliver monitored performance, alarms, and remote configuration, boosting energy management and preventative maintenance programs. The electronic motor overload protection protects motors from thermal damage, reducing unscheduled outages and extending motor life. Application: Protects high-value HVAC motors in fan and pump circuits, supporting longer service intervals and lower total cost of ownership.
Get a Quick Quote for a ABB 3AUA0000225651
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000225651?
Enquire Now
FAQs
The ACH580-VCR-065A-4 supports 1 to 75 hp across 230/460/575 V supplies, providing a flexible platform suitable for a wide range of HVAC fans, pumps, and compressors.
E-Clipse bypass provides a bypass motor starter integrated with the drive, allowing safe maintenance and testing of the motor without removing the drive from service, reducing downtime and simplifying service procedures.
Yes. The ACH580-VCR-065A-4 includes a UL (NEMA) Type 1 enclosure, a door-mounted control panel, an interlocked switch, and a padlockable OFF option to enhance on-site safety during maintenance.
Yes. The unit offers external control connections and serial communications capability, enabling integration with BACnet/Modbus and other automation networks for monitoring, control, and remote configuration.
It reduces downtime through safe bypass capabilities, improves reliability with electronic motor overload protection, simplifies maintenance with a graphical local control panel, and supports energy management and scalable automation—delivering lower total cost of ownership and better uptime.
