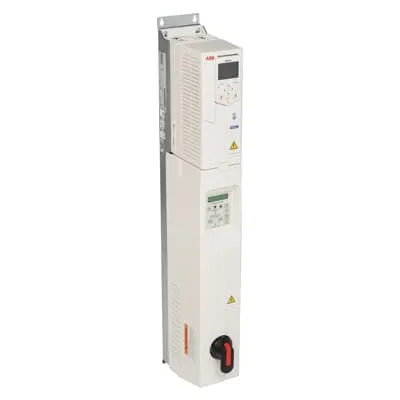

ABB ACH580-VDR-07A6-4 HVAC Drive - UL E-Clipse Bypass
Part Number: 3AUA0000225654
Quick Summary
The ABB ACH580-VDR-07A6-4 HVAC drive efficiently controls HVAC motors for commercial and industrial climate systems. Engineers often struggle with integrating a reliable bypass and safe disconnect in compact enclosures. This model ships with UL listing and a UL (NEMA) Type 1 enclosure, plus electronic motor overload protection for safer, code-compliant operation. By combining robust protection with flexible control and communications, it reduces installation time and lifecycle costs for HVAC projects.
Product Information
Extended Description
3AUA0000225654 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1 enclosure with a bypass motor starter and is available from 1 to 75 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker, both including fast acting drive fuses, with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Integrated UL Type 1 enclosure with a bypass motor starter minimizes panel space and eliminates the need for a separate disconnect, while supporting 1–75 hp at 230/460/575 V. This arrangement speeds installation, reduces wiring complexity, and is particularly beneficial in retrofit HVAC projects where space is at a premium. Power and protection are built in: either an input disconnect switch or a circuit breaker is included with fast-acting drive fuses, and the door-mounted interlocked switch can be padlockable in the OFF position. Together, these features simplify safe servicing and support lockout-tagout compliance across maintenance teams. ABB E-Clipse bypass delivers a direct bypass path with a bypass starter, enabling minimal downtime during start-up or fault conditions while preserving drive protection. The drive includes a door-mounted control panel with a graphical display for local control and diagnostics, plus provisions for external control connections and serial communications. With broad voltage support and a scalable horsepower range, the ACH580-VDR-07A6-4 fits a wide array of HVAC applications—from air handlers to rooftops—while its integrated protections reduce motor wear and improve energy efficiency. From installation to ongoing maintenance, this ABB solution addresses common industry objections about complexity and integration, delivering a compact, compliant, and future-ready motor drive for industrial automation and building services.
Get a Quick Quote for a ABB 3AUA0000225654
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000225654?
Enquire Now
FAQs
Yes. The ACH580-VDR-07A6-4 supports 1 to 75 hp and operates at 230/460/575 V, making it suitable for retrofit or new HVAC installations. It comes in a UL Type 1 enclosure with integrated bypass, reducing the need for separate cabinets and simplifying wiring during replacement.
The drive includes electronic motor overload protection, fast-acting drive fuses, and an input disconnect or circuit breaker option. The door-mounted interlocked switch (padlockable OFF) enhances safety during maintenance and supports lockout-tagout procedures.
HVAC fans, pumps, and air handling units see the greatest benefit due to the integrated bypass, compact enclosure, and local plus remote control capabilities. The solution also supports Building Management System (BMS) integration via serial communications for centralized monitoring.
The ACH580-VDR-07A6-4 is UL-listed and configured in a UL (NEMA) Type 1 enclosure, offering code-compliant protection for indoor installation. These certifications support safety, reliability, and regulatory compliance in commercial and industrial environments.
The integrated bypass and protection features minimize downtime and simplify servicing, while serial communications enable remote diagnostics and motor condition monitoring. These factors contribute to lower maintenance costs, reduced energy waste, and a faster return on investment for HVAC projects.
