ABB ACH580 3AUA0000225669 - E-Clipse Bypass UL Type 1
Part Number: 3AUA0000225670
Quick Summary
ABB ACH580 3AUA0000225669 is a HVAC packaged drive that enables efficient, reliable motor control in commercial and industrial environments. For engineers juggling tight space, wiring complexity, and downtime, the integrated E-Clipse bypass reduces installation steps and improves system availability. This device ships with UL-listed protection and offers NEMA Type 1, 12, or 3R enclosure options, enhancing safety and environmental suitability. By combining robust motor protection with scalable hp ranges and serial communications, it supports energy-efficient control workflows and streamlined maintenance.
Product Information
Extended Description

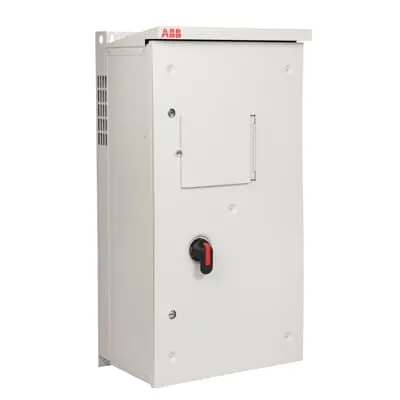

3AUA0000225670 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1, 12 or 3R enclosure with a bypass motor starter and is available from 1 to 350 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Feature: Built-in E-Clipse bypass with bypass starter. Impact: Reduces maintenance downtime and simplifies service by eliminating external bypass equipment. Application: Ideal for HVAC packaged drives in rooftop units and air handlers where quick, safe isolation is essential. Feature: Input disconnect switch or circuit breaker with door-mounted, interlocked, padlockable OFF. Impact: Enhances safety and enables compliant lockout/tagout during maintenance. Application: Suitable for installations requiring local control and safe power isolation per plant safety standards. Feature: Broad hp and voltage range, 1 to 350 hp at 230/460/575 V. Impact: Enables a single platform to cover multiple motor sizes, reducing spare parts and stocking costs. Application: Fits fans, pumps, and compressors across HVAC and industrial processes. Feature: Electronic motor overload protection with a door-mounted control panel and graphical display. Impact: Improves motor protection, lowers nuisance trips, and speeds commissioning. Application: Streamlines start-up, fault diagnosis, and on-site servicing. Feature: Serial communications capability and external control connections. Impact: Enables integration with building management systems and remote monitoring, reducing wiring clutter. Application: Valuable for centralized control, energy management, and automation workflows. Feature: UL-listed protection with UL/NEMA Type 1, 12, or 3R enclosure options. Impact: Enhances safety, environmental readiness, and installation versatility. Application: Ideal for commercial and industrial HVAC installations requiring compliant enclosures and safe operation.
Get a Quick Quote for a ABB 3AUA0000225670
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000225670?
Enquire Now
FAQs
When installing the ACH580 with E-Clipse bypass, plan for a door-mounted control panel, integrated bypass starter, and an input disconnect or circuit breaker with an interlocked OFF position. The unit supports 230/460/575 V and ranges from 1 to 350 hp, with UL-listed protection and optional NEMA Type 1, 12 or 3R enclosures for safe, compliant installations.
Key specs include a horsepower range from 1 to 350 hp and operating voltages of 230/460/575 V. It features an integrated E-Clipse bypass, a bypass starter, electronic motor overload protection, and serial communications capability, enabling reliable motor control with scalable performance for HVAC and process-related applications.
Yes. The ACH580 with E-Clipse bypass is designed for HVAC applications, offering a bypass option for service continuity, a compact enclosure, and integrated protection. Its SER/COMM capabilities support remote monitoring and integration with building management systems typical in roof units and air handling equipment.
The ACH580 is UL-listed and compatible with NEMA Type 1, 12, or 3R enclosures, providing certified protection for indoor and outdoor-like environments. These features support safe operation, easier maintenance, and compliance with typical HVAC installation standards in industrial facilities.
The integrated bypass reduces field wiring and maintenance complexity, shortening downtime during service and commissioning. Electronic motor overload protection minimizes nuisance trips, while remote monitoring and control connections enable proactive maintenance and energy management, contributing to lower operating costs and a faster ROI in HVAC systems.
