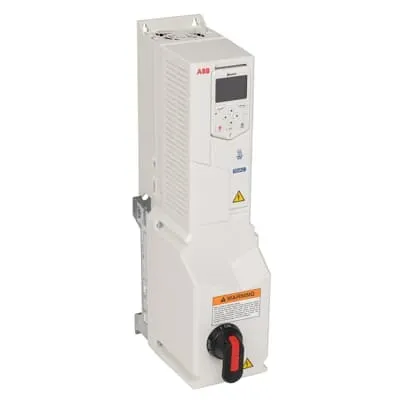

ABB 3AUA0000225679 Packaged Drive - UL Type 1
Part Number: 3AUA0000225679
Quick Summary
ABB 3AUA0000225679 Packaged Drive is a versatile HVAC motor drive that controls fan and pump speed. Engineers often struggle with installation complexity and downtime when integrating variable-speed drives in HVAC cabinets. This packaged drive is UL-listed for US use in UL (NEMA) Type 1, 12, or 3R enclosures, with door-mounted disconnect and fast acting drive fuses. Designed to complement ABB ACH580 systems, it enables faster deployment and lower lifecycle costs across commercial and industrial facilities.
Product Information
Extended Description
3AUA0000225679 ABB: The ACH580 Packaged Drive includes an ACH580 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with input disconnect switch or circuit breaker, both including fast acting drive fuses. It is available from 1 to 350 hp at 230/460/575 V. The ACH580 Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Feature: Packaged ACH580 Drive in UL Type 1/12/3R enclosure. Business Impact: Simplifies installation, reduces wiring errors, and enhances safety with integrated disconnect and fuses. Application: Ideal for HVAC cabinets in commercial buildings and light industrial plants. Feature: Electronic motor overload protection. Business Impact: Protects motors from overload, extending equipment life and reducing unscheduled downtime. Application: Critical for fans, pumps, and conveyor loads in process HVAC systems. Feature: Door-mounted control panel with graphical display. Business Impact: Accelerates commissioning and local control, lowering commissioning time and service visits. Application: On-site troubleshooting and quick adjustments in restricted access areas. Feature: Input disconnect switch or circuit breaker with fast acting fuses. Business Impact: Improves safety and compliance, enabling lockout/tagout and reliable fault isolation. Application: Standardized installation in protective enclosures for maintenance teams. Feature: Serial communications capability and external control connections. Business Impact: Enables seamless integration with BMS/SCADA and automation networks, improving monitoring and control. Application: Centralized energy management and fault diagnostics in automated facilities. Feature: Wide voltage and horsepower range (230/460/575 V, 1–350 hp). Business Impact: Delivers scalable performance for diverse HVAC loads, reducing stock diversity and installation time. Application: Retrofitting and new builds in industrial optimization projects.
Get a Quick Quote for a ABB 3AUA0000225679
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000225679?
Enquire Now
FAQs
Yes. The ABB 3AUA0000225679 Packaged Drive is designed as a UL (NEMA) Type 1/12/3R packaged solution with a door-mounted disconnect, suitable for 230/460/575 V applications and a horsepower range from 1 to 350 hp, simplifying cabinet integration and compliance.
It includes electronic motor overload protection, fast-acting drive fuses, and an input disconnect. These features protect motors and drives, minimize fault propagation, and support safe maintenance and compliance in industrial HVAC systems.
Yes. The packaged ACH580-based drive is specifically suited for HVAC fans and pumps, offering smooth speed control, energy efficiency, and reliable operation within UL Type 1, 12, or 3R enclosures for commercial and light industrial applications.
The drive is UL-listed for US use in UL (NEMA) Type 1, 12, or 3R enclosures, with integrated disconnects and fuses. These certifications support regulatory compliance, safe operation, and easier regulatory audits for HVAC installations.
The integrated design reduces installation time and wiring errors, lowers maintenance visits via local control and diagnostics, and improves energy efficiency in HVAC systems, delivering faster ROI through reduced downtime and energy savings in industrial facilities.
