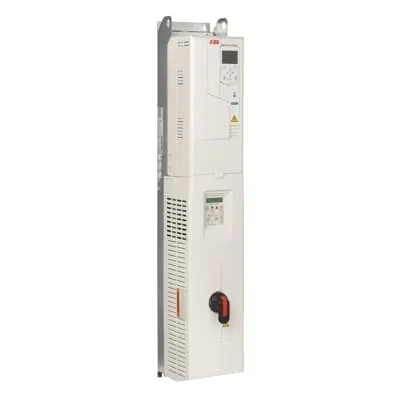

ABB ACH580-VDR-034A-4 HVAC Drive - UL Type 1 Enclosure with E-Clipse Bypass
Part Number: 3AUA0000225759
Quick Summary
The ABB ACH580-VDR-034A-4 HVAC drive is a versatile variable frequency drive designed to optimize fan and pump motors in commercial and industrial HVAC systems. Engineers often struggle with integrating a safe bypass, a disconnect, and local control while meeting space constraints and compliance requirements. This model addresses those needs with a compact, protected enclosure and an integrated E-Clipse bypass. It ships with a UL-listed, NEMA Type 1 enclosure, a bypass motor starter, fast-acting drive fuses, and a door-mounted control panel for straightforward commissioning. In addition to robust safety features, the drive offers external control connections and serial communications, supporting seamless integration into modern building automation and energy-management workflows.
Product Information
Extended Description
3AUA0000225759 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1 enclosure with a bypass motor starter and is available from 1 to 75 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker, both including fast acting drive fuses, with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Feature: E-Clipse bypass with bypass motor starter. Business Impact: Reduces wiring complexity and installation time while delivering a safe, reliable bypass path. Application: HVAC drives where a fault-tolerant bypass is required during maintenance or startup. Long-tail keywords: ABB E-Clipse bypass, bypass motor starter, HVAC drive safety. Feature → Business Impact → Application: Electronic motor overload protection provides motor protection and reduces unplanned downtime, improving equipment life and uptime in mid-size commercial complexes. Feature: UL Type 1 enclosure with door-mounted control panel. Business Impact: Simplifies installation in mechanical rooms and provides protected local control in dusty or restricted spaces. Application: New-build and retrofit projects needing compliant enclosure and easy access. Feature: 1–75 hp at 230/460/575 V. Business Impact: Broad voltage compatibility reduces inventory and accelerates project timelines. Application: US-based facilities with mixed voltage infrastructure. Feature: Input disconnect switch or circuit breaker with fast-acting fuses. Business Impact: Enhances safety and meets lockout/tagout requirements during service windows. Application: Routine maintenance and compliance-driven workflows. Feature: External control connections and serial communications. Business Impact: Enables integration with building management systems and remote monitoring for energy optimization. Application: Central HVAC control, data centers, and smart facilities. Feature: Door interlock and padlockable OFF. Business Impact: Improves safety compliance and reduces risk during access by maintenance staff. Application: Hazard-prone or regulated environments where controlled shutdowns are required. All features together deliver improved energy efficiency, safer operation, rapid commissioning, and a scalable solution for growing HVAC control needs.
