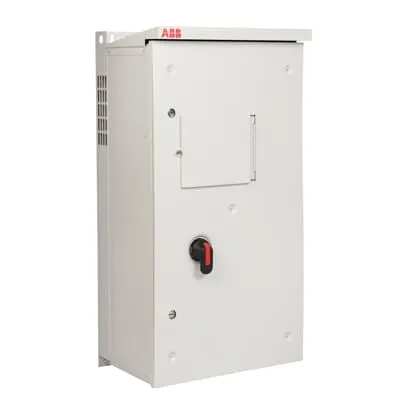

ABB ACH580-BCR-03A5-4+B058 HVAC Drive - E-Clipse Bypass UL Type 1
Part Number: 3AUA0000225807
Quick Summary
ABB ACH580-BCR-03A5-4+B058 is an HVAC packaged drive that optimizes fan and pump control in commercial and industrial HVAC systems. For engineers, wiring complexity, space constraints, and downtime are persistent pain points; this drive integrates a bypass, input disconnect, and motor overload protection to simplify installation and improve uptime. Key certifications and compliance include UL listing with NEMA Type 1, 12, or 3R enclosure options, boosting safety and serviceability. Designed for reliable, remote-ready operation, it also supports serial communications for integration with modern automation systems. The result is a leaner install footprint, faster commissioning, and long-term energy-efficient performance across HVAC applications.
Product Information
Extended Description
3AUA0000225807 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1, 12 or 3R enclosure with a bypass motor starter and is available from 1 to 350 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Feature: E-Clipse bypass integration with bypass starter. Business Impact: minimizes maintenance downtime and speeds service operations, enabling safer bypass testing without full shutdown. Application: ideal for HVAC fans and pumps where continuous operation during servicing is critical. Feature: Built-in input disconnect switch or circuit breaker with door interlock. Business Impact: improves safety, simplifies lockout/tagout procedures, and reduces wiring errors during commissioning. Application: field wiring in constrained spaces or retrofit projects. Feature: Electronic motor overload protection. Business Impact: protects motor windings and drive electronics, reducing unplanned outages and extending equipment life. Application: heavy-duty HVAC motors subject to load transients. Feature: Door-mounted control panel with graphical display and serial communications capability. Business Impact: accelerates troubleshooting, enables remote monitoring, and eases integration with BMS and SCADA. Application: smart building automation and central control rooms. Feature: Enclosure versatility and broad power range. Business Impact: supports rapid deployment across facilities with 1–350 hp, 230/460/575 V, reducing spare-part variety and procurement complexity. Application: multi-site installations in commercial, industrial, and process HVAC environments.
Get a Quick Quote for a ABB 3AUA0000225807
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000225807?
Enquire Now
FAQs
When retrofitting, plan for the UL Type 1/12/3R enclosure options, ensure 230/460/575 V supply compatibility, and accommodate the door-mounted control panel. Use the integrated input disconnect or circuit breaker for safe lockout. The E-Clipse bypass enables maintenance without a full plant shutdown, reducing downtime and wiring complexity.
Key specs include 1–350 horsepower range, dual/tri-voltage operation at 230/460/575 V, built-in bypass with starter, electronic motor overload protection, and serial communications capability. It supports compact, reliable control for fan and pump loads, with DIN-rail or panel-mounted integration depending on enclosure and installation needs.
Yes. The ACH580-BCR-03A5-4+B058 is designed for HVAC applications such as air handling units, fan coils, and chilled water pumps. Its bypass option, integrated protection, and graphical local control panel streamline commissioning, while serial communications enable integration with building management systems for coordinated demand management.
The drive is UL-listed with NEMA Type 1, Type 12, or Type 3R enclosure options, offering robust environmental protection and serviceability. While CE/IP specifics aren’t listed in the provided data, the enclosure and protection features are tailored for safe operation in commercial and industrial HVAC settings.
Expect lower maintenance downtime due to E-Clipse bypass and a door-mounted control panel for quicker fault diagnosis. Electrical safety is enhanced by an integrated disconnect, reducing repair time. Energy-efficient motor control and reliable overload protection contribute to lower operating costs and improved system uptime over the life of the equipment.
