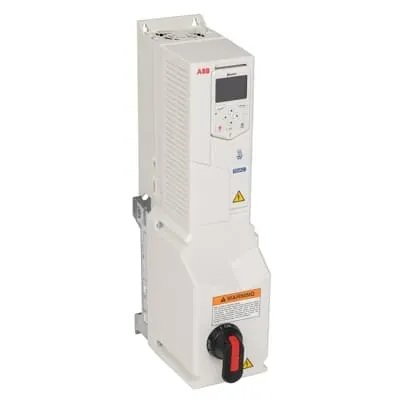

ABB 3AUA0000226134 HVAC Drive - UL 1 HP 460V
Part Number: 3AUA0000226134
Quick Summary
HVAC drive with circuit breaker disconnect controls HVAC motors for packaged cooling and air handling systems. This arrangement reduces wiring complexity and minimizes downtime during commissioning. UL-listed packaging with NEMA Type 1, 12, or 3R enclosures plus electronic overload protection enhances safety and compliance. As a packaged drive solution, it streamlines installation, supports local control via a door-mounted panel, and enables scalable, reliable motor control. The ACH580 Packaged Drive accommodates 1 to 350 hp across 230, 460, and 575 V platforms, with fast-acting drive fuses included. Its digital display supports easy setup, external control connections, and serial communications for integration with modern building management systems. In operation, the pack reduces energy waste and shortens service intervals through built-in protection.
Product Information
Extended Description
3AUA0000226134 ABB: The ACH580 Packaged Drive includes an ACH580 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with input disconnect switch or circuit breaker, both including fast acting drive fuses. It is available from 1 to 350 hp at 230/460/575 V. The ACH580 Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Feature → Business Impact → Application: The ACH580 Packaged Drive ships in a UL (NEMA) Type 1, 12 or 3R enclosure with an input disconnect switch or circuit breaker and fast acting drive fuses. Impact: This design reduces wiring complexity, accelerates commissioning, and enhances safety by providing a single, compliant package. Application: Ideal for commercial HVAC equipment where quick installation and robust protection are critical, such as rooftop units and air handling systems. Feature → Business Impact → Application: It supports 1 to 350 hp at 230/460/575 V, enabling scalable motor control for fans, pumps, and compressors. Impact: Enables precise speed control, energy efficiency improvements, and lower lifecycle operating costs. Application: Suitable for variable-speed HVAC applications needing broad voltage compatibility and future-proofing. Feature → Business Impact → Application: Door-mounted input disconnect switch with padlockable OFF and a door-mounted control panel with graphical display. Impact: Improves maintenance safety, simplifies lockout/tagout procedures, and speeds on-site setup. Application: Preferred in retrofit projects and new installations requiring straightforward local control. Feature → Business Impact → Application: Built-in electronic motor overload protection. Impact: Protects motors from overloads, extends motor life, reduces unplanned outages, and lowers spare-parts costs. Application: Critical for continuous-running fans and pumps in climate control systems. Feature → Business Impact → Application: Serial communications capability and provisions for external control connections. Impact: Enables seamless integration with building management systems and remote monitoring, reducing commissioning time and improving fault diagnostics. Application: Well-suited for centralized control rooms and smart-building deployments. Feature → Business Impact → Application: 230/460/575 V compatibility and inclusion of fast-acting drive fuses. Impact: Facilitates quick selection across regional voltage standards and ensures protection during power disturbances. Application: Great for multi-site installations and new-build HVAC projects requiring flexible power options.
Get a Quick Quote for a ABB 3AUA0000226134
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000226134?
Enquire Now
FAQs
The ACH580 Packaged Drive supports 1 to 350 hp across 230/460/575 V platforms, making it compatible with a wide range of HVAC motors used in fans, pumps, and compressors. It includes an input disconnect or circuit breaker with fast-acting fuses for safe, code-compliant installations.
Key features include electronic motor overload protection, door-mounted control panel with graphical display, and serial communications capability. The unit also provides a sheet-guarded, UL (NEMA) Type 1 enclosure, with built-in protection to reduce motor damage and downtime.
Yes. The ACH580 Packaged Drive is designed for packaged HVAC equipment such as air handling units, rooftop units, and fan/pump assemblies, delivering reliable variable-speed control, energy efficiency, and simplified installation in commercial buildings.
It uses UL-listed packaging in UL (NEMA) Type 1, 12, or 3R enclosures, with an input disconnect and fast-acting fuses. The solution emphasizes safety and standard-compliant installation in HVAC projects.
Expect reduced downtime due to integrated protection, longer motor life from overload protection, and easier maintenance via local control and remote integration. The streamlined installation also lowers commissioning costs and accelerates time-to-value for HVAC systems.
