ABB ACH580-PCR-03A0-4 Packaged Drive - UL Type 1
Part Number: 3AUA0000226135
Quick Summary
ABB ACH580-PCR-03A0-4 Packaged Drive is an HVAC drive that controls fans and pumps in commercial buildings. For retrofit projects, space constraints and wiring complexity can slow installation and extend downtime. Key certifications and standards include UL-listed protection with UL Type 1 (NEMA) enclosures, Type 12 and 3R options, and built-in electronic motor overload protection. The drive supports 230/460/575 V and ranges from 1 to 350 hp, with a door-mounted control panel and a padlockable input disconnect for safer, faster commissioning. This combination reduces install risk, improves reliability, and enables tight integration with building management systems, delivering measurable energy efficiency and maintenance savings for industrial automation environments.
Product Information
Extended Description

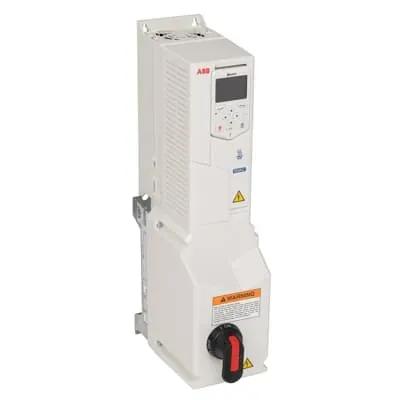

3AUA0000226135 ABB: The ACH580 Packaged Drive includes an ACH580 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with input disconnect switch or circuit breaker, both including fast acting drive fuses. It is available from 1 to 350 hp at 230/460/575 V. The ACH580 Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Packaged enclosure with UL Type 1 and a built-in input disconnect reduces on-site wiring and accelerates commissioning. This translates to quicker startup times, improved safety, and easier regulatory compliance for HVAC retrofits. Ideal for air handling units and large fans, it supports 230/460/575 V operation with up to 350 hp capacity, ensuring compatibility across multiple equipment vintages. Door-mounted control panel with graphical display enables local oversight and simplified troubleshooting. Engineers can adjust parameters without a PC, reducing downtime and improving first-time right installation. This is especially valuable in retrofit scenarios where panel access is limited or technicians need quick visibility on drive status. Electronic motor overload protection defends motor windings and drive electronics. The result is longer motor life, lower maintenance costs, and fewer nuisance trips during peak HVAC demand. This protection is critical for variable-torque loads common in air handling applications. External control connections and serial communications capability facilitate seamless integration with Building Management Systems and automation networks. The business impact is centralized monitoring, remote start/stop, and data analytics for energy optimization. Application contexts include large campuses, data centers, and industrial facilities seeking improved asset management. Fast-acting drive fuses and a compact, compatible footprint support easy installation and serviceability. The 1 to 350 hp range provides scalable solutions from small fans to large AHUs, while ABB reliability and documented wiring diagrams streamline maintenance planning. This makes upgrades and expansions cost-effective over the drive’s service life.
Get a Quick Quote for a ABB 3AUA0000226135
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000226135?
Enquire Now
FAQs
This packaged drive supports 230/460/575 V operation and is designed for HVAC applications, offering a UL Type 1 enclosure, a door-mounted control panel, and a padlockable input disconnect to simplify wiring and commissioning on diverse equipment.
The ACH580 Packaged Drive family covers 1 to 350 hp, with the specific ACH580-PCR-03A0-4 model addressing 1.5 hp at 460 V as part of the broader 230/460/575 V voltage options, enabling scalable solutions across small to large HVAC loads.
Yes. It is purpose-built for HVAC applications, providing motor control for fans and pumps with features such as electronic overload protection, external control connections, and serial communications for BMS integration.
Key standards include UL-listed components and UL Type 1 (NEMA) enclosure options, with 12 and 3R enclosure variants available. These ensure safe installation, compliance, and reliable operation in building automation environments.
The package includes a door-mounted graphical control panel, a padlockable input disconnect, fast-acting drive fuses, and ease of external control connections and serial communication, which together reduce downtime, simplify maintenance, and improve integration with building management systems.
