ABB ACH580 Packaged Drive 3AUA0000226138 - UL Type 1
Part Number: 3AUA0000226138
Quick Summary
The ABB ACH580 Packaged Drive is a ready-to-install HVAC drive that controls motors for heating, ventilation, and air conditioning systems. It addresses common wiring and safety challenges by integrating the drive, a door-mounted input disconnect, and fast-acting fuses in a single UL enclosure. Key certifications include UL listing and NEMA Type 1 configurations (with Type 12 and 3R options available) to suit indoor install needs. With support for 1 to 350 hp at 230/460/575 V and electronic motor overload protection, this package delivers robust protection and precise control. The solution lowers installation time and spare-part costs while enabling reliable motor control and easy remote communications for scalable HVAC operations.
Product Information
Extended Description

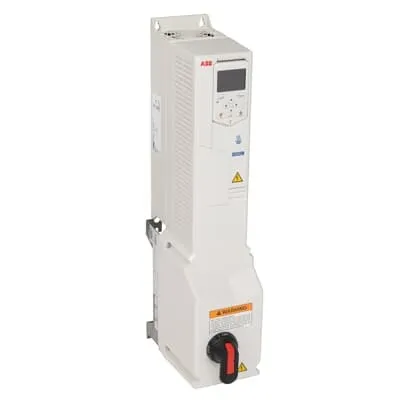

3AUA0000226138 ABB: The ACH580 Packaged Drive includes an ACH580 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with input disconnect switch or circuit breaker, both including fast acting drive fuses. It is available from 1 to 350 hp at 230/460/575 V. The ACH580 Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Feature: Integrated packaged drive with a door-mounted disconnect and fast-acting fuses. Benefit: Reduces field wiring complexity, enhances safety, and accelerates commissioning by providing a single, compliant enclosure. Application: Ideal for retrofit or new HVAC installations where space and safety are priorities. Feature: Wide horsepower and voltage range (1 to 350 hp at 230/460/575 V). Benefit: Supports a broad spectrum of HVAC motors, enabling a single drive family to cover multiple projects and loads, reducing spare parts and training needs. Application: Fans and pumps across commercial buildings and industrial facilities. Feature: Electronic motor overload protection. Benefit: Protects motors from overheating and electrical faults, lowering maintenance costs and downtime. Application: Critical HVAC fans that demand reliable startup and torque control. Feature: Graphical control panel and door-mounted controls. Benefit: Simplifies local configuration, troubleshooting, and fault diagnosis, shortening downtime. Application: On-site commissioning and service calls. Feature: Serial communications and external control connections. Benefit: Enables seamless integration with Building Management Systems (BMS) and remote monitoring, improving energy management. Application: Modernized HVAC control architectures. Feature: UL Type 1 enclosure options (NEMA configurations). Benefit: Keeps equipment protected in indoor environments while meeting compliance and padlock safety. Application: Safe, maintenance-friendly installations in plant rooms and mechanical spaces.
Get a Quick Quote for a ABB 3AUA0000226138
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000226138?
Enquire Now
FAQs
For installation, ensure you select a UL Type 1 enclosure (with optional Type 12 or 3R configurations) to suit the indoor environment. Connect the door-mounted input disconnect and fast-acting drive fuses as shown in the manual, wire the control and external communication interfaces, and verify supply voltage of 230/460/575 V. The result is a compact, code-compliant setup that reduces field wiring and expedites commissioning.
The ACH580 Packaged Drive includes electronic motor overload protection to monitor motor current and torque. This feature prevents overheating and unexpected trips, which translates to longer motor life, fewer unplanned maintenance events, and lower total cost of ownership for HVAC systems that run continuously or on variable loads.
Yes. With 1 to 350 hp capacity and support for 230/460/575 V, the ACH580 Packaged Drive covers a wide range of fan and pump applications common in commercial and light industrial HVAC. The integrated disconnect and fuses simplify code compliance, while built-in communications enable easy integration with BAS/SCADA systems for optimized energy use.
The solution is UL listed and offered in NEMA-style enclosures (Type 1 primary, with 12 or 3R options available). These standards support safe indoor operation, align with facility safety programs, and simplify regulatory compliance during audits and inspections.
Adopting the packaged ACH580 reduces upfront wiring and enclosure costs, shortens commissioning time, and lowers spare-part stock due to a single, integrated solution. The electronic overload protection helps prevent motor damage, reducing maintenance frequency, while remote communications enable proactive monitoring and energy management for noticeable total cost of ownership improvements.
