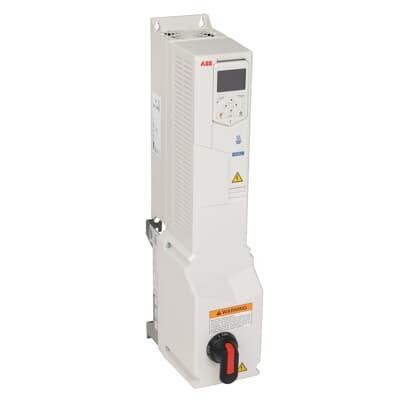

ABB ACH580-PCR-044A-4 HVAC Drive - UL Packaged Enclosure with Disconnect
Part Number: 3AUA0000226139
Quick Summary
ABB ACH580-PCR-044A-4 HVAC drive powers HVAC systems with integrated packaged enclosure for safe, reliable control in mechanical rooms. Engineers often struggle with complex wiring, space constraints, and ensuring regulatory compliance during installation. This solution is UL-listed and offered in UL (NEMA) Type 1, 12, or 3R enclosures, with an input disconnect and fast-acting fuses to simplify setup. By consolidating drive functions with local control and external communications, it reduces commissioning time and supports seamless building management system integration for improved operational efficiency.
Product Information
Extended Description
3AUA0000226139 ABB: The ACH580 Packaged Drive includes an ACH580 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with input disconnect switch or circuit breaker, both including fast acting drive fuses. It is available from 1 to 350 hp at 230/460/575 V. The ACH580 Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Feature → Business Impact → Application: The ACH580 packaged drive includes a door-mounted input disconnect switch with padlockable OFF and fast acting drive fuses, which streamlines safe maintenance procedures and minimizes downtime during service calls in HVAC systems. This leads to faster installation in new or retrofit projects and reduces safety risk for technicians in industrial environments. Application contexts include rooftop units and air handling systems where quick lockout is essential. Feature → Business Impact → Application: Electronic motor overload protection mitigates motor damage and protects critical ventilation loads, lowering maintenance costs and extending equipment life. This is particularly valuable for large air handlers and variable air volume systems where motor stress varies with load. Feature → Business Impact → Application: A door-mounted graphical control panel provides local access with intuitive display, accelerating commissioning and on-site adjustments. This is beneficial in retrofit projects or facilities with limited access to centralized control, enabling faster troubleshooting and reduced commissioning time. Feature → Business Impact → Application: Serial communications capability enables seamless integration with building management systems and external controllers, supporting centralized monitoring, remote diagnostics, and energy-management initiatives across multiple AHUs and fans. Feature → Business Impact → Application: The broad horsepower range from 1 to 350 hp and voltages of 230/460/575 V offer flexibility for diverse HVAC applications, from small fans to large rooftop units, enabling standardization across facilities and reducing spare parts inventory. Feature → Business Impact → Application: UL listing and NEMA Type 1/12/3R enclosure options ensure compliance with safety standards and environmental protection, easing procurement for both new builds and regulated retrofit projects while accommodating indoor and moderate outdoor installations.
Get a Quick Quote for a ABB 3AUA0000226139
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000226139?
Enquire Now
FAQs
The ACH580-PCR-044A-4 supports 230/460/575 V supplies and is shipped in a UL-listed packaged enclosure with a door-mounted input disconnect and fast-acting drive fuses. Wiring follows standard VFD practices for HVAC applications, allowing straightforward integration with existing panel schedules and control cabinets. This reduces field wiring complexity and improves installation time while maintaining safety clearances.
For the 044A-4 variant, the drive provides 30 HP at 460 V with a current capacity of 44 A, and a broad range up to 350 HP across 230/460/575 V systems. It includes electronic motor overload protection to guard motors against overload, plus serial communications for external control. These specs support reliable fan and pump control in varied HVAC load conditions.
Yes. The ACH580 packaged drive is designed for HVAC applications such as air handlers, rooftop units, and large commercial fans or pumps. Its enclosed, plug-in ready architecture and integrated safety features streamline installation in mechanical rooms or equipment rooms, while enabling precise speed control to optimize comfort, efficiency, and humidity control without sacrificing reliability.
The drive is UL-listed for US installations and offered in UL (NEMA) Type 1, 12, or 3R enclosures, which provide appropriate protection levels for indoor and outdoor-ready HVAC installations. This combination supports safe operation, simplified procurement, and alignment with general electrical safety requirements in commercial buildings.
Maintenance is simplified by an integrated control panel, built-in overload protection, and standard enclosure options that reduce field wiring and component count. The drive enables precise motor control to optimize energy use in variable-load HVAC systems, delivering potential energy savings, lower utility costs, and a faster ROI through improved system performance and reduced maintenance downtime.
