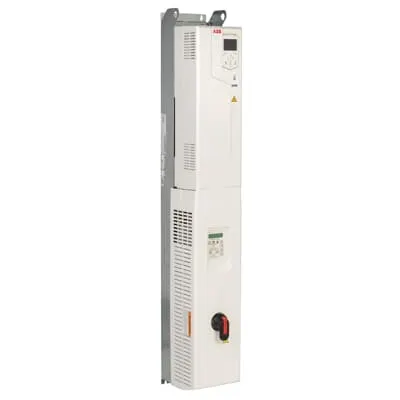

ABB ACH580-VCR-046A-2 HVAC Drive - E-Clipse Bypass
Part Number: 3AUA0000227468
Quick Summary
ABB ACH580-VCR-046A-2 HVAC drive is a motor control solution for HVAC systems. Engineers often struggle with downtime, wiring complexity, and isolation during bypass maintenance. This ABB drive is UL-listed for US use with a UL (NEMA) Type 1 enclosure, includes an integrated E-Clipse bypass, and supports local control via a door-mounted graphical panel as well as remote control and serial communications for building management integration. Its wide range from 1 to 75 hp and operation at 230/460/575 V simplifies specification, procurement, and installation across varied HVAC applications. With these protections and compact integration, the drive helps reduce commissioning time, energy waste, and unscheduled outages—delivering measurable business value for facility operators and contractors.
Product Information
Extended Description
3AUA0000227468 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1 enclosure with a bypass motor starter and is available from 1 to 75 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker, both including fast acting drive fuses, with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Feature: ABB E-Clipse bypass is integrated with the ACH580, allowing a safe bypass path for the drive during commissioning or maintenance. Benefit: minimizes downtime, protects the motor from drive faults, and speeds service. Application: HVAC fans and pumps requiring uninterrupted operation during service windows. Feature: UL (NEMA) Type 1 enclosure with a door-mounted control panel and graphical display. Benefit: robust protection against dust and interference while enabling easy local tuning; reduces cabinet space and wiring complexity. Application: mechanical rooms and controlled environments where safe isolation and quick access are essential. Feature: Input disconnect switch or circuit breaker option with fast-acting drive fuses and an interlocked, padlockable OFF door. Benefit: heightened safety and compliance during maintenance; simplifies lockout/tagout procedures. Application: plant electrical rooms and HVAC installations with strict safety requirements. Feature: Wide horsepower and voltage range — 1 to 75 hp at 230/460/575 V. Benefit: flexible sizing reduces multiple part numbers and stocking needs; enables scalable upgrades. Application: HVAC fans, pumps, and air-handling equipment across commercial and industrial buildings. Feature: Local control panel plus serial communications capability. Benefit: rapid commissioning, real-time monitoring, and seamless integration with building management systems. Application: automation-ready HVAC plants with remote diagnostics and centralized control.
Get a Quick Quote for a ABB 3AUA0000227468
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000227468?
Enquire Now
FAQs
To install the ACH580-VCR-046A-2, verify voltage compatibility (230/460/575 V) and HP range (1–75 hp), mount the unit in a UL Type 1 enclosure, and connect the optional input disconnect or circuit breaker with fast-acting fuses. Use the door-mounted graphical panel for local tuning and ensure proper wiring for external control connections and serial communications. This minimizes commissioning time and ensures safe operation during maintenance.
Key specs include 1 to 75 hp support, operation at 230/460/575 V, and an integrated ABB E-Clipse bypass within a UL (NEMA) Type 1 enclosure. It features electronic motor overload protection, a bypass starter, a door-mounted control panel, and serial communications capability for integration with BMS or automation systems. These attributes enable reliable, scalable HVAC motor control with straightforward maintenance.
Yes. The drive provides serial communications capability and provisions for external control connections, enabling direct integration with building management systems and HVAC automation networks. This supports remote monitoring, fault diagnostics, and centralized control, which translate to faster problem resolution, improved energy management, and streamlined operator workflows in commercial and industrial facilities.
The ACH580-VCR-046A-2 uses a UL-listed configuration with a UL (NEMA) Type 1 enclosure, offering robust protection and safety for HVAC control cabinets. The integrated E-Clipse bypass further supports safe installation and maintenance. The combination of UL listing and Type 1 enclosure is designed to meet common US industry safety and electrical standards in mechanical rooms and equipment rooms.
Deploying the ACH580-VCR-046A-2 can reduce downtime through the integrated bypass and fast-acting fuses, and lower maintenance costs via electronic motor overload protection. Energy efficiency of variable speed control reduces waste, while remote monitoring and BMS integration improve diagnostics and scheduling. Overall, facilities typically see faster maintenance cycles, longer motor life, and tighter control over HVAC energy use.
