ABB ACH580 3AUA0000227520 - UL/NEMA Enclosure
Part Number: 3AUA0000227520
Quick Summary
The ABB ACH580 is a motor drive that controls speed and torque for industrial applications. Downtime and wiring complexity challenge maintenance teams during installation and upgrades. UL-listed protection and NEMA Type 1, 12 or 3R enclosures enhance safety and reliability in harsh environments. This compact drive integrates a bypass motor starter, electronic overload protection, and a door-mounted control panel, reducing wiring, commissioning time, and field faults while supporting external control connections and serial communications for scalable automation projects. By combining protection, bypass capability, and remote control options, it delivers improved uptime and lower total cost of ownership for OEMs, contractors, and end users.
Product Information
Extended Description

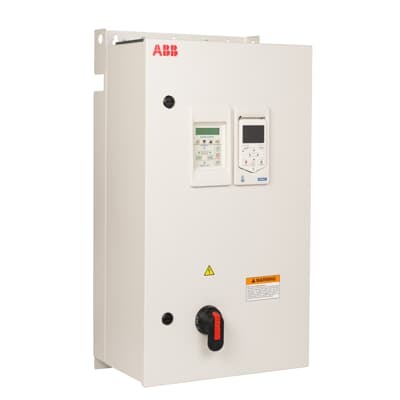

3AUA0000227520 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1, 12 or 3R enclosure with a bypass motor starter and is available from 1 to 350 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
The ACH580 with E-Clipse bypass provides a built-in bypass motor starter that enables seamless transfer between run and bypass modes, reducing downtime during maintenance and allowing quick reconfiguration of systems such as conveyors and pumps. This translates to faster commissioning, lower labor costs, and improved overall equipment effectiveness (OEE) in production lines. The device includes electronic motor overload protection, delivering motor protection and reduced fuse or breaker wear, which lowers energy waste and minimizes unexpected outages in demanding environments. An input disconnect switch or circuit breaker with a door-mounted, interlocked switch (padlockable in OFF) enhances safety, supports a robust lockout/tagout program, and simplifies compliance with industrial safety standards. A door-mounted control panel with a graphical display enables local control and system visibility, while provisions for external control connections and serial communications enable scalable, remote monitoring, trending, and integration with factory automation systems. The ACH580 supports 1 to 350 hp at 230/460/575 V, offering a scalable solution for a wide range of motors, from small fans to mid-size pumps and conveyors, reducing the need for multiple drive types and simplifying spare parts management. Installers benefit from a compact footprint and straightforward wiring, which shortens time-to-value in retrofit projects and new installations alike. The E-Clipse bypass design also mitigates common objections about bypass reliability by delivering a proven bypass path without extensive rewiring, ensuring consistent performance in both normal operation and bypass modes. Compatibility with ABB’s control strategy and serial interfaces supports modern automation architectures, enabling remote diagnostics and proactive maintenance programs that improve uptime and asset longevity. Overall, the ACH580 3AUA0000227520 delivers reliable motor control, enhanced protection, and operational efficiency for automation engineers and maintenance teams.
Get a Quick Quote for a ABB 3AUA0000227520
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000227520?
Enquire Now
FAQs
The ACH580 supports 230/460/575 V three-phase inputs and is designed for UL-listed NEMA Type 1, 12, or 3R enclosure configurations. It includes an integrated bypass and is compatible with motors ranging from 1 to 350 hp, making it suitable for a wide range of industrial applications from conveyors to pumps. Ensure proper door interlock and external control wiring during installation.
Electronic motor overload protection continuously monitors motor current and thermal conditions, preventing overheating and protecting windings. This reduces unscheduled downtime, extends motor life, lowers repair costs, and improves system reliability. When paired with the bypass starter, it ensures safe, controlled shutdowns and smooth transitions between run and bypass modes.
Yes. The ACH580 with E-Clipse bypass is designed for industrial environments and supports a range of loads including pumps and conveyors. The UL-listed enclosure types and robust protection features support reliable operation in harsh conditions, while the door-mounted control panel simplifies local control and monitoring. For best results, match motor horsepower and voltage to the drive’s 1–350 hp and 230/460/575 V ratings.
The product offers UL-listed protection and conforms to NEMA Type 1/12/3R enclosure standards, enhancing safety and reliability in indoor industrial settings. It includes a door interlocked switch that is padlockable in OFF position, improving lockout-tagout compliance. While CE certification isn’t listed in the provided data, the enclosure and protective features align with common industrial safety and electrical codes.
The integrated bypass, compact wiring, and local control panel reduce commissioning time and wiring complexity, lowering installation labor costs. Electronic overload protection minimizes motor wear and unplanned outages, improving uptime and asset longevity. Serial communications enable remote monitoring and predictive maintenance, delivering measurable ROI through reduced downtime and streamlined diagnostics.
