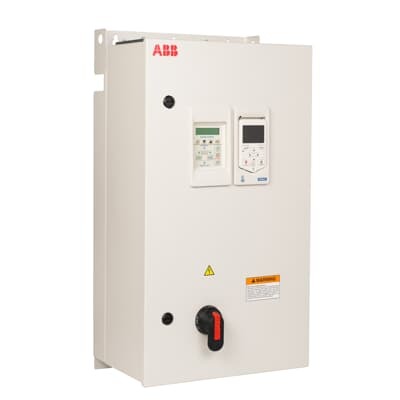

ABB ACH580 Drive - UL (NEMA) Type 1/12/3R Enclosure
Part Number: 3AUA0000227521
Quick Summary
ABB ACH580 Drive provides precise motor control for industrial equipment like conveyors and pumps. Many users struggle with downtime and energy waste when starters lack integrated protection and local control. The drive is designed around UL-listed NEMA Type 1, 12, and 3R enclosure options and includes electronic motor overload protection, a door-mounted control panel with a graphical display, and serial communications capability. With built-in input disconnect switch or circuit breaker that is door-mounted and interlocked (padlockable in the OFF position), operators gain safer, faster control and easier maintenance. This combination lowers total cost of ownership by improving uptime, reducing energy waste, and enabling scalable automation across manufacturing lines.
Product Information
Extended Description
3AUA0000227521 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1, 12 or 3R enclosure with a bypass motor starter and is available from 1 to 350 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Feature: Integrated ABB E-Clipse bypass with bypass starter. Benefit: Enables seamless handoff to bypass during service without removing protection, reducing maintenance downtime and improving line availability. Application: Suitable for conveyors, pumps, and fans in automated facilities. Feature: UL (NEMA) Type 1, 12 or 3R enclosure. Benefit: Provides robust protection against dust, moisture, and environmental contaminants, enabling installation across varied plant zones. Application: Ideal for factory floors, mechanical rooms, and hazardous areas where enclosure protection is essential. Feature: Electronic motor overload protection. Benefit: Prevents motor damage and unexpected outages, lowering repair costs and extending motor life. Application: Heavy-duty loads with variable torque requirements. Feature: Door-mounted control panel with graphical display. Benefit: Simplifies local control, commissioning, and troubleshooting, accelerating project timelines. Application: Field service and maintenance windows where quick diagnostics matter. Feature: Input disconnect switch or circuit breaker with interlocked door (padlockable OFF). Benefit: Enhances safety compliance and lockout/tagout capabilities, reducing risk during maintenance. Application: Safety-critical equipment applications with regulated access. Feature: External control connections and serial communications capability. Benefit: Facilitates integration with PLCs and automation networks, enabling remote monitoring and centralized control. Application: Modern manufacturing lines requiring networked device management.
Get a Quick Quote for a ABB 3AUA0000227521
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000227521?
Enquire Now
FAQs
Yes. The ACH580 comes with ABB E-Clipse bypass integrated and is designed for UL-listed NEMA Type 1, 12 or 3R enclosure configurations. It includes an input disconnect switch or circuit breaker with a door-mounted, interlocked design (padlockable OFF) to meet safety and installation standards.
The ACH580 is available from 1 to 350 horsepower and operates at 230/460/575 V. This broad range supports a variety of industrial loads, from small conveyors to mid-size pumps and fans, with optimized motor control.
Best suited for conveyors, pumps, and fans where reliable local control and a bypass option are essential. The integrated bypass starter, motor overload protection, and door-mounted graphical panel simplify installation and maintenance in automated production lines.
The system ships with UL-listed enclosure options (Type 1/12/3R) and electronic motor overload protection, plus a door-mounted control panel. The interlocked, padlockable OFF input switch adds an extra layer of safety during maintenance and ensures regulatory compliance for controlled shutdowns.
With serial communications capability and external control connections, the ACH580 integrates with PLCs and industrial networks for centralized monitoring, predictive maintenance, and faster troubleshooting. This connectivity reduces downtime, shortens commissioning, and enables scalable automation across multiple production lines.
