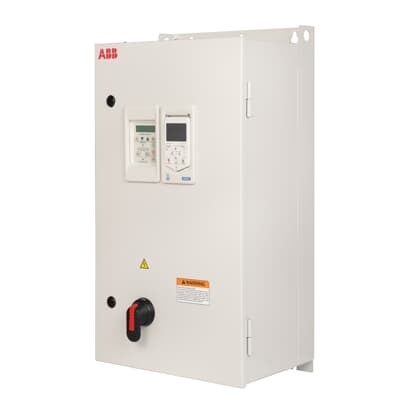

ABB ACH580 3AUA0000227529 - UL/NEMA Type 1/12/3R Enclosure
Part Number: 3AUA0000227529
Quick Summary
ABB ACH580 is an intelligent VFD that delivers precise motor control for fans, pumps, and conveyors in industrial automation. Too many installations suffer downtime from abrupt starts, complex wiring, and disparate protection devices; this solution simplifies wiring and reduces startup delays. It offers UL-listed/NEMA Type 1, 12, or 3R enclosures with an integrated bypass motor starter and electronic overload protection, addressing harsh environments and serviceability. With a door-mounted control panel and options for external control connections, it streamlines commissioning and local control without sacrificing remote diagnostics. By combining reliability, safety, and ease of installation, this ABB ACH580 drives improved efficiency, reduced maintenance costs, and better compliance with industrial standards.
Product Information
Extended Description
3AUA0000227529 ABB: The ACH580 with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1, 12 or 3R enclosure with a bypass motor starter and is available from 1 to 350 hp at 230/460/575 V. The ACH580 with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability
Feature: Integrated UL/NEMA Type 1, 12 or 3R enclosure with a bypass motor starter. Business impact: Consolidates protection and drive functionality into a single enclosure, reducing cabinet space, wiring complexity, and installation time. Application: ideal for compact plant layouts, conveyors, and medium-size pump and fan systems. Feature: Input disconnect switch or circuit breaker with door-mounted, interlocked switch (padlockable in OFF). Business impact: enhances safety and regulatory compliance while simplifying lockout/tagout procedures. Application: maintenance windows and periodical servicing in harsh environments. Feature: Bypass starter and electronic motor overload protection with a door-mounted control panel and graphical display. Business impact: easier local control, quicker commissioning, and improved protection negotiation with plant networks. Application: retrofit projects and new installations requiring streamlined control and diagnostics. Feature: External control connections and serial communications capability. Business impact: enables plant-wide monitoring, remote diagnostics, and Industry 4.0 readiness with minimal wiring. Application: integration into SCADA/HMIS systems and centralized motor control schemes. Feature: Wide hp and voltage range — 1 to 350 hp at 230/460/575 V. Business impact: reduces replacement and upgrade costs by supporting a broad motor catalog. Application: pumps, fans, and conveyors across manufacturing, water treatment, and process industries.
Get a Quick Quote for a ABB 3AUA0000227529
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000227529?
Enquire Now
FAQs
The ACH580 supports 1 to 350 hp motors at 230/460/575 V and includes an integrated bypass starter, electronic overload protection, and external control connections, making retrofit and new installs straightforward with standard wiring practices.
It features UL-listed/NEMA Type 1, 12, and 3R enclosure ratings, an input disconnect or circuit breaker with door interlock (padlockable OFF), a bypass starter, electronic overload protection, and a door-mounted graphical control panel for local operation.
Ideal for pumps, fans, and conveyors in manufacturing, water treatment, and process industries where reliable motor control, safe maintenance, and scalable HP ranges are required.
The E-Clipse bypass provides a direct bypass path within the enclosure, enabling maintenance or service without full disassembly and supporting continued motor operation under safe conditions, reducing downtime and inspection effort.
By consolidating protection, control, and bypass into a single enclosure, you reduce wiring, panel space, and maintenance labor while enabling predictive diagnostics and safer lockout procedures—driving lower total cost of ownership and faster payback in suitable applications.
