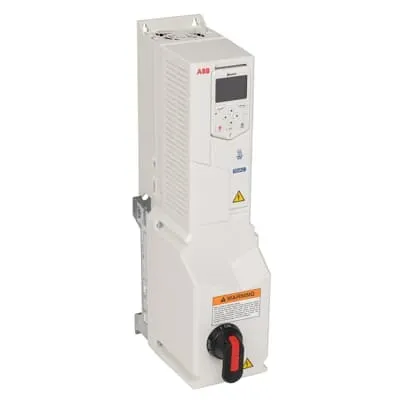

ABB 3AUA0000227806 HVAC Drive - UL Type 1
Part Number: 3AUA0000227806
Quick Summary
ABB 3AUA0000227806 HVAC Drive is a packaged ACH580 unit that controls HVAC motors and fans in commercial buildings. It combines a drive, door-mounted input disconnect, and protection features in a UL Type 1 enclosure for streamlined installation. This design helps address wiring complexity, space constraints, and compliance risk by delivering integrated control, electronic overload protection, and a graphical local panel. With built-in external connections and serial communications, it enables flexible integration with building management systems. The solution supports 1 to 350 hp at 230/460/575 V and provides reliable, maintenance-friendly operation, reducing downtime and lifecycle costs while meeting industry safety expectations. Primary use remains HVAC, but the approach supports broader motor control needs.
Product Information
Extended Description
3AUA0000227806 ABB: The ACH580 Packaged Drive includes an ACH580 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with input disconnect switch or circuit breaker, both including fast acting drive fuses. It is available from 1 to 350 hp at 230/460/575 V. The ACH580 Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Feature: Packaged drive in a UL Type 1 enclosure with a door-mounted input disconnect and fast-acting drive fuses. Business impact: reduces installation time, wiring complexity, and safety risk by delivering a single, integrated solution. Application: ideal for new commercial HVAC projects and retrofit installations where space and wiring efficiency matter. Feature: Electronic motor overload protection and a door-mounted control panel with graphical display. Business impact: minimizes motor risk, lowers nuisance trips, and speeds commissioning with on-site parameter tuning. Application: pumps and fans requiring reliable motor protection in busy mechanical rooms. Feature: Padlockable OFF input disconnect for maintenance safety. Business impact: enables safer lockout/tagout procedures and compliant servicing. Application: routine maintenance in service-intensive environments. Feature: External control connections and serial communications capability. Business impact: seamless integration with building management systems, enabling remote monitoring and centralized control. Application: modern HVAC plants with centralized automation. Feature: Broad voltage and horsepower range—230/460/575 V and 1 to 350 hp. Business impact: supports diverse motor configurations with a single drive platform, reducing spare parts and procurement complexity. Application: global projects and retrofit programs requiring flexible electrical compatibility. Feature: Compact packaging with integrated fuses and protection. Business impact: saves space, simplifies installation, and lowers total installed cost. Application: tight electrical rooms and 19-inch rack or cabinet installations.
Get a Quick Quote for a ABB 3AUA0000227806
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000227806?
Enquire Now
FAQs
The packaged drive supports 1 to 350 hp across 230/460/575 V systems. It is designed for HVAC motors such as fans and pumps, providing flexible voltage options to match existing motor ratings and enabling a single drive platform for multiple installations.
The door-mounted input disconnect is padlockable in the OFF position, simplifying lockout/tagout procedures during maintenance and reducing wiring complexity. This consolidates safety controls into the enclosure, easing commissioning and on-site safety compliance.
Yes. The ACH580 Packaged Drive includes external control connections and serial communications capability, enabling seamless integration with BMS platforms for remote monitoring, centralized control, and improved operational visibility.
The unit is UL Type 1 enclosed and UL-listed, providing safe, code-compliant installation in indoor environments. The enclosure design and protection features support typical electrical codes and safety requirements for commercial HVAC applications.
The integrated protection, local control panel, and simplified wiring reduce installation time and field labor. Maintenance benefits include reduced downtime from motor overload protection and easier remote monitoring, contributing to lower lifecycle costs and improved system reliability in HVAC applications.
