ABB 3AUA0000227807 HVAC Drive - UL Type 1 Packaged
Part Number: 3AUA0000227807
Quick Summary
ABB ACH580 Packaged Drive delivers compact motor control for HVAC equipment in commercial buildings. For engineers, integrating a drive with a certified disconnect and protection within limited equipment space is a common challenge. UL-listed and available in a UL (NEMA) Type 1 enclosure, with 12 and 3R options, it also supports 230/460/575 V variants. With electronic motor overload protection, a door-mounted graphical control panel, and serial communications, it streamlines installation and facilitates remote control. This packaged solution covers 1 to 350 hp and is suitable for 2 HP applications at 230 V with a 7.5 A draw, delivering reliable performance and lower operating costs through integrated protections. Its modular wiring and built-in controls reduce commissioning time and minimize field wiring errors.
Product Information
Extended Description

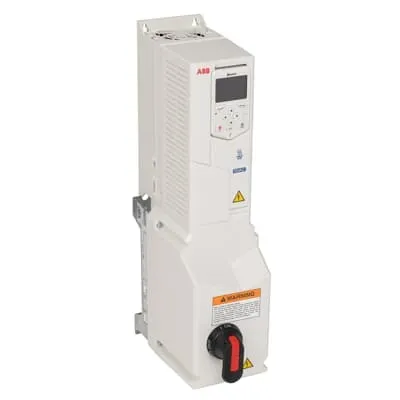

3AUA0000227807 ABB: The ACH580 Packaged Drive includes an ACH580 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with input disconnect switch or circuit breaker, both including fast acting drive fuses. It is available from 1 to 350 hp at 230/460/575 V. The ACH580 Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Packaged design with UL Type 1 enclosure and a door-mounted input disconnect reduces cabinet footprint and simplifies wiring, enabling faster installation and easier service in tight mechanical rooms. Business impact: lower installation costs, reduced risk of wiring errors, and enhanced safety. Application: HVAC equipment such as rooftop units and air handling systems needing compact, compliant motor control. Electronic motor overload protection guards the motor against overload conditions, decreasing unplanned downtime and extending equipment life. Business impact: improved reliability and maintenance planning. Application: variable-torque fan and pump applications within commercial HVAC. Door-mounted graphical control panel provides local control and quick diagnostics, enabling on-site adjustments without opening the main enclosure. Business impact: faster commissioning and reduced technician site time. Application: commissioning, startup, and routine maintenance of HVAC drives. Serial communications capability and provisions for external control connections simplify integration with building management systems and industrial networks. Business impact: streamlined control from BAS dashboards and centralized monitoring. Application: integrated HVAC control architectures and remote monitoring. The ACH580 Packaged Drive scales from 1 to 350 hp and supports 230/460/575 V, offering a single solution for a range of HVAC loads. This compatibility reduces the need for multiple drives and spare parts. Application: mixed-size facilities with varied cooling loads.
Get a Quick Quote for a ABB 3AUA0000227807
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUA0000227807?
Enquire Now
FAQs
The ACH580 Packaged Drive is designed for straightforward replacement and upgrade within commercial HVAC systems. Ensure the supply matches 230/460/575 V, mount the unit in a UL Type 1 enclosure, and connect the door-mounted control panel and input disconnect. Use serial communications to integrate with BAS or controls. This setup minimizes wiring changes and reduces commissioning time while preserving protection features.
The packaged drive supports 1 to 350 hp across 230/460/575 V systems, with a target 7.5 A draw at 230 V for the 2 HP scenario noted in the data. This broad range enables applications from small fans to larger pumped loads, enabling precise motor control and energy efficiency improvements in HVAC systems.
Yes. The ACH580 Packaged Drive is specifically suited for packaged HVAC equipment such as rooftop units and air handlers. Its UL Type 1 enclosure, integrated input disconnect, and protective features simplify implementation in spaces with limited cabinet room and allow centralized control of multiple HVAC motors from a single, compliant drive platform.
The drive is UL-listed and offered in a UL (NEMA) Type 1 enclosure with options for 12 or 3R configurations. This combination provides validated electrical safety and suitable protection for indoor HVAC installations, helping meet regulatory and safety requirements for commercial buildings.
With electronic motor overload protection, a door-mounted control panel for quick diagnostics, and built-in control interfaces, maintenance needs are reduced and mean time to repair is shortened. The integrated protections and scalable horsepower range also translate to lower total cost of ownership by reducing spare parts, improving energy efficiency, and simplifying commissioning across varied HVAC loads.
