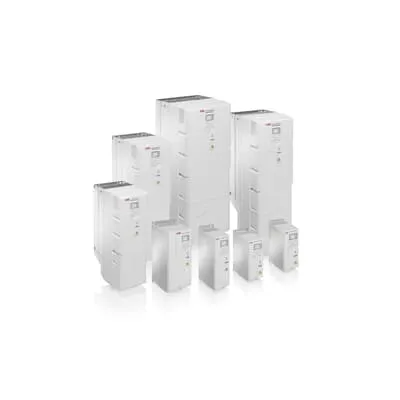

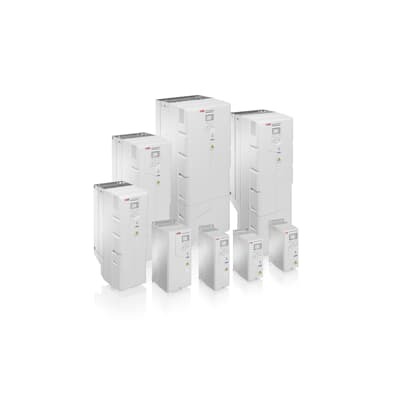

ABB ACH580-31 Ultra-Low Harmonic Packaged Drive - UL Type 1
Part Number: 3AUD0000000673
Quick Summary
The ABB ACH580-31 ultra-low harmonic packaged drive is a UL-listed motor control solution designed to optimize HVAC and process applications. Engineers often struggle with motor drive harmonics, voltage distortion, and nuisance tripping that sap uptime and raise maintenance costs. This packaged drive features a UL-listed, NEMA Type 1 enclosure with a door-mounted control panel, an input disconnect switch or input circuit breaker, and fast-acting drive fuses, delivering safe, code-compliant installation. With electronic motor overload protection and built-in serial communications capability, it offers robust protection and easy integration into plant networks. Rated for 460 V, 12 A, and 7.5 HP, it supports scalable deployment across new builds and retrofit projects while enabling energy efficiency and tighter control in industrial automation systems.
Product Information
Extended Description
3AUD0000000673 ABB: The ACH580-31 ultra-low harmonic Packaged Drive includes an ACH580-31 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with either an input disconnect switch or an input circuit breaker, both including fast acting drive fuses. It is available from 1 to 400 hp at 460 V. The ACH580-31 ultra-low harmonic Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Ultra-low harmonic architecture reduces input current distortion, improving power quality and reducing overheating in motor windings. This translates into longer motor life, lower cooling requirements, and fewer nuisance trips in HVAC packs. Use it in commercial buildings, manufacturing floors, and process cooling where harmonics from VFDs are a concern. The packaged drive combines a UL Type 1 enclosure with a door-mounted control panel, an input disconnect switch or circuit breaker, and fast-acting drive fuses, simplifying installation and enhancing safety by minimizing field wiring and enabling straightforward service access. Electronic motor overload protection guards equipment against overload events, lowering maintenance costs and extending asset life while providing clear local diagnostics on the control panel. Serial communications capability enables seamless integration with existing industrial networks, enabling remote monitoring, fleet-wide configuration, and predictive maintenance. With 460 V operation across 12 A inputs and a 7.5 HP rating, the ACH580-31 scales from small commercial projects to mid-size process applications, delivering reliable performance with energy-efficiency gains and tight control in automation environments.
Get a Quick Quote for a ABB 3AUD0000000673
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUD0000000673?
Enquire Now
FAQs
ACH580-31 is designed for 460 V systems and 12 A input, fitting typical packaged drive installations. It offers a door-mounted control panel, a UL Type 1 enclosure, and options for an input disconnect switch or circuit breaker with fast-acting fuses, reducing field wiring and simplifying panel integration while maintaining safety and code compliance.
Ultra-low harmonic technology minimizes input current distortion, improving power quality and reducing thermal stress on motors. This leads to longer motor life, fewer overheating events, and lower cooling requirements. In HVAC and process cooling applications, users experience smoother operation, reduced EMI, and improved overall equipment reliability.
Yes. The ACH580-31 packaged drive is tailored for HVAC pack units, offering a compact, enclosure-ready solution with built-in protection, local control, and external communications. Its 460 V, 12 A, 7.5 HP rating supports typical fan, pump, and compressor duties found in commercial building systems, enabling efficient, reliable operation within standard install footprints.
The drive is UL-listed and housed in a NEMA Type 1 enclosure, which aligns with common industrial safety and installation requirements. This combination supports code-compliant installations, safer maintenance, and streamlined approval processes for regulated environments, reducing risk during audits and inspections.
By reducing harmonics, protecting motors with electronic overload protection, and simplifying wiring via an integrated disconnect option and control panel, the ACH580-31 lowers downtime, minimizes maintenance costs, and improves energy efficiency. The built-in communications support also enables remote monitoring and proactive upkeep, contributing to faster payback in HVAC and process automation projects.
