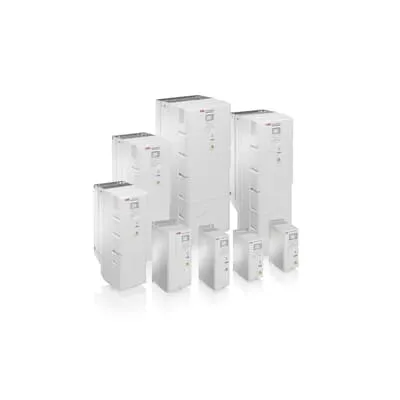

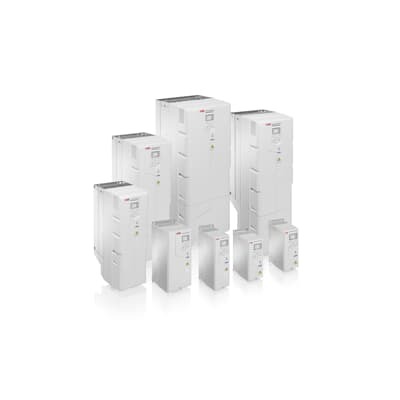

ABB 3AUD0000000674 Packaged Drive - UL Type 1
Part Number: 3AUD0000000674
Quick Summary
ABB 3AUD0000000674 Packaged Drive is a UL Type 1 ultra-low harmonic motor drive for HVAC systems. If you’re upgrading aging drives, you know the pain of harmonic distortion, cramped panels, and uneven motor loading. The solution aligns UL-listed packaging with NEMA Type 1, 12, or 3R enclosure options and CE compliance for global use. With a 1 to 400 hp range at 460 V and an integrated control interface, it reduces wiring complexity, enhances motor protection, and simplifies commissioning. This combination delivers energy-efficient HVAC motor control, streamlined maintenance, and scalable performance for growing facilities while easing retrofit projects and cross-brand integrations.
Product Information
Extended Description
3AUD0000000674 ABB: The ACH580-31 ultra-low harmonic Packaged Drive includes an ACH580-31 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with either an input disconnect switch or an input circuit breaker, both including fast acting drive fuses. It is available from 1 to 400 hp at 460 V. The ACH580-31 ultra-low harmonic Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Feature: Ultra-low harmonic design reduces input distortion and improves power quality. Business Impact: Lowers harmonics, extends motor life, and minimizes EMI-related issues in HVAC systems. Application: sustrict compliance in commercial buildings where power quality matters and energy codes are strict. Feature: Packaged drive with a door-mounted graphical control panel. Business Impact: Speeds up commissioning, simplifies local control, and reduces cabinet space needs. Application: compact electrical rooms and retrofit projects where space is at a premium. Feature: Optional input disconnect switch or circuit breaker with fast acting drive fuses. Business Impact: Enhances safety, enables code-compliant isolation, and eases maintenance outages. Application: facilities with strict safety standards and routine shut-downs. Feature: 1 to 400 hp at 460 V rated performance. Business Impact: Provides scalable capacity for fans, pumps, and variable torque loads, reducing over-engineering. Application: HVAC loops of varying sizes and building automation integrations. Feature: External control connections and serial communications capability. Business Impact: Enables seamless integration with BMS/PSU and SCADA systems, improving monitoring and diagnostics. Application: centralized control rooms and modern energy-management strategies. Feature: Compatible enclosure options including UL Type 1, 12, or 3R. Business Impact: Simplifies installation, accelerates approvals, and supports international deployments. Application: global HVAC installations where regulatory compliance and rugged environments matter.
Get a Quick Quote for a ABB 3AUD0000000674
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUD0000000674?
Enquire Now
FAQs
This packaged drive supports 1–400 hp motors at 460 V and offers input disconnect or circuit breaker options, making retrofit straightforward. It integrates with standard motor starters and requires matching motor nameplate specs, enabling quick panel mounting, simplified wiring, and reduced field engineering time during installation.
Key specs include operation at 460 V with a 1–400 hp range, UL Type 1/NEMA enclosure options, and ultra-low harmonic performance. It provides electronic motor overload protection, a door-mounted control panel, and serial communications for external control, ensuring robust protection and easy integration.
Yes. The ACH580-31 ultra-low harmonic Packaged Drive is designed for HVAC applications such as fans and pumps. Its scalable horsepower rating, harmonic reduction, and integrated control panel make it ideal for energy-efficient, reliable HVAC system control in commercial buildings.
The drive is UL-listed and CE-compliant, with NEMA Type 1 enclosure options and additional enclosure variants for 12 and 3R environments. These certifications support compliance across global facilities and ensure safer installations in varied climates and building codes.
Maintenance benefits include reduced wiring complexity, integrated overload protection, and a robust door-mounted panel for local diagnostics. ROI advantages arise from energy efficiency due to ultra-low harmonic operation, extended motor life, and quicker commissioning, which lowers downtime and shortens project timelines.
