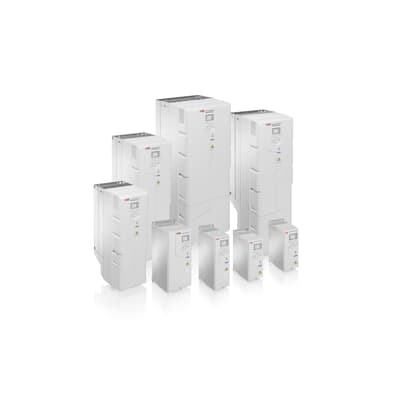

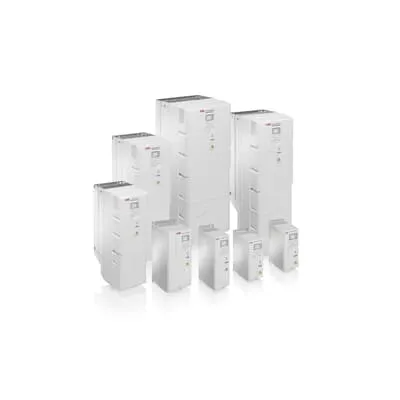

ABB 3AUD0000000677 Packaged Drive - UL Type 1 25 Hp 460 V
Part Number: 3AUD0000000677
Quick Summary
Packaged Drive ABB 3AUD0000000677 delivers ultralow harmonic motor control for HVAC systems. This integrated solution reduces harmonics, improves energy efficiency, and saves panel space by combining drive, disconnect, and protection in a single enclosure. Key certifications include UL-listed components for a UL NEMA Type 1 enclosure, ensuring safe operation in commercial environments. In addition, the integrated control panel and serial communications enable rapid deployment and easier remote monitoring, supporting improved uptime and lower lifecycle costs.
Product Information
Extended Description
3AUD0000000677 ABB: The ACH580-31 ultra-low harmonic Packaged Drive includes an ACH580-31 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with either an input disconnect switch or an input circuit breaker, both including fast acting drive fuses. It is available from 1 to 400 hp at 460 V. The ACH580-31 ultra-low harmonic Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Ultra-low harmonic design minimizes harmonic distortion and improves power quality, reducing transformer losses and emissions. This translates to measurable energy savings and smoother motor operation in HVAC fans and pumps used in rooftop units and air handling systems. A packaged drive in a UL Type 1 enclosure delivers space-saving convenience and safer maintenance, with a door-mounted disconnect or input circuit breaker and fast-acting drive fuses that shorten installation time and reduce wiring errors. Electronic motor overload protection and a graphical local control panel provide quick fault response and on-site performance tuning, lowering downtime and improving commissioning accuracy. Serial communications capability and external control connections enable seamless integration with building management systems and remote monitoring, promoting scalable control across multiple units. The 1–400 hp range at 460 V supports a wide load spectrum, while compatibility with the ABB ACH580 family ensures flexible sizing, standardized maintenance, and lower total cost of ownership in HVAC projects.
Get a Quick Quote for a ABB 3AUD0000000677
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUD0000000677?
Enquire Now
FAQs
The packaged drive is designed for UL Type 1 (NEMA) enclosures and can be equipped with a door-mounted input disconnect or a circuit breaker with fast-acting fuses. It integrates a graphical control panel and serial communications, making it suitable for HVAC equipment in commercial buildings, rooftop units, and air handling systems.
The unit supports 1 to 400 hp at 460 V, with electronic motor overload protection and harmonics mitigation. Expect improved motor performance, reduced electrical noise, and better overall energy efficiency in HVAC fans, pumps, and compressor applications, along with safer, more predictable startup behavior.
Yes. Its UL-listed components, NEMA Type 1 enclosure, integrated disconnect or breaker, and graphical local control panel make it ideal for commercial HVAC systems. Serial communications enable integration with BAS/EMS, enabling remote monitoring, fault diagnostics, and centralized control across multiple units.
Key certifications include UL-listed components and a UL NEMA Type 1 enclosure, ensuring safe operation in indoor HVAC environments. The enclosure design allows compliant wiring, easy maintenance, and compatibility with standard electrical codes, while the adjustable protections support reliable long-term operation.
The all-in-one packaging reduces panel space and wiring complexity, shortening installation and commissioning. Harmonic mitigation and energy efficiency lower operating costs, while the integrated protection and remote monitoring capabilities reduce downtime and simplify preventive maintenance, delivering a favorable total cost of ownership over the drive’s lifecycle.
