ABB 3AUD0000000719 Motors & Drives - UL 40 Hp 52 A 460 V
Part Number: 3AUD0000000719
Quick Summary

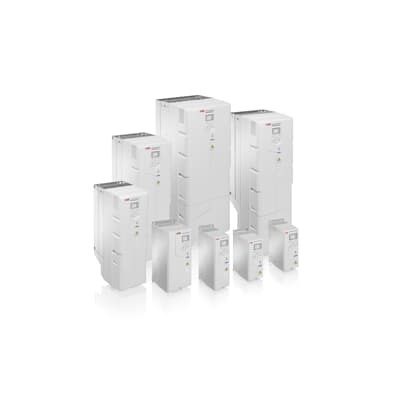

ABB ACH580-31 ultra-low harmonic drive optimizes HVAC motor control for efficient climate systems. Facility teams frequently wrestle with harmonic distortion, wiring complexity, and downtime when upgrading drives in existing infrastructure. UL-listed protection with optional NEMA Type 1, 12, or 3R enclosures supports safe, code-compliant installations. The drive includes an integrated bypass starter and electronic motor overload protection, reducing maintenance steps and simplifying safety interlocks. Advanced controls and serial communications enable seamless integration with building management systems, while a compact footprint eases retrofit projects. Together, these capabilities translate to improved energy efficiency, lower operating costs, and faster payback for commercial and industrial HVAC deployments.
Product Information
Extended Description
3AUD0000000719 ABB: The ACH580-31 ultra-low harmonic drive with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1, 12 or 3R enclosure with a bypass motor starter and is available from 1 to 400 hp at 460 V. The ACH580-31 ultra-low harmonic drive with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker, both including fast acting drive fuses, with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Feature: Ultra-low harmonic drive with ABB E-Clipse bypass; Business Impact: dramatically lowers harmonic distortion, improving power quality and reducing utility penalties; Application: retrofit and new HVAC installations that demand reliable power quality. Feature: Integrated UL Type 1/12/3R enclosure with bypass starter and fast-acting drive fuses; Business Impact: simplifies compliance and reduces field wiring, enabling safer, code-compliant installations; Application: equipment rooms and restricted plant spaces. Feature: Input disconnect switch or circuit breaker option; Business Impact: safe isolation during maintenance, minimizing downtime and risk; Application: servicing high-availability HVAC drives. Feature: Electronic motor overload protection; Business Impact: protects motors from overloads, extending motor life and reducing unplanned outages; Application: high-load climate control motors. Feature: Door-mounted control panel with graphical display; Business Impact: accelerates commissioning and local troubleshooting; Application: on-site tuning and diagnostics. Feature: External control connections and serial communications; Business Impact: enables easy integration with building management systems and remote monitoring; Application: facility-wide automation and predictive maintenance.
Get a Quick Quote for a ABB 3AUD0000000719
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUD0000000719?
Enquire Now
FAQs
The ACH580-31 is offered with integrated UL Type 1, 12, or 3R enclosure options and includes a bypass motor starter. This provides safe, code-compliant installation in indoor HVAC environments and simplifies maintenance access during service or retrofit projects.
The drive is rated 1 to 400 HP at 460 V (three-phase). It supports a broad range of industrial HVAC applications, with current protection via fast-acting drive fuses or an optional disconnect/circuit breaker for safe startup and isolation during maintenance.
Yes. The ACH580-31 is an ultra-low harmonic drive designed to minimize harmonic distortion in HVAC systems, improving power quality. The E-Clipse bypass and integrated protection enable reliable operation and straightforward bypass maintenance when required.
The drive is UL-listed and available with NEMA enclosure variants (Type 1, 12, and 3R). These certifications support compliance with industrial and building codes, while the enclosure options aid safe installation in various environmental conditions.
The ACH580-31 reduces maintenance downtime with integrated protection, bypass options, and remote communications for monitoring. By lowering harmonic distortion and improving energy efficiency, facilities often see faster payback due to reduced energy costs and simplified system integration with existing automation.
