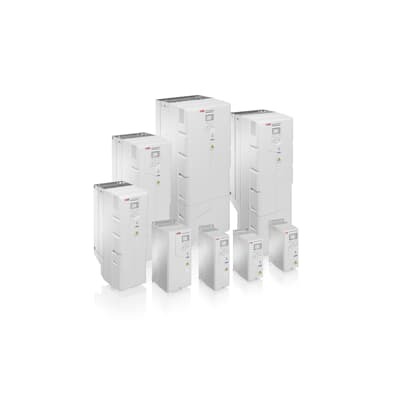

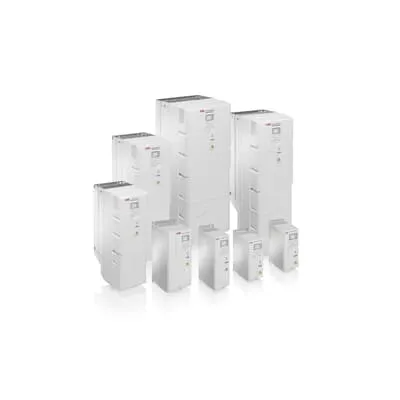

ABB ACH580-31 Ultra-Low Harmonic Drive - UL Enclosure
Part Number: 3AUD0000000720
Quick Summary
ABB ACH580-31 ultra-low harmonic drive delivers precise motor control for HVAC and process applications. This solution addresses common pain points like harmonic distortion, oversized control panels, and maintenance overhead by consolidating drive, bypass, and protection in one enclosure. It emphasizes safety and reliability through UL-listed protection and configurable NEMA Type 1, 12, or 3R enclosures, along with a built-in bypass starter. In addition, CE-ready interfaces and robust remote control options support seamless integration into modern control systems. The result is improved energy efficiency, reduced commissioning time, and lower lifecycle costs for industrial environments that demand dependable drive performance.
Product Information
Extended Description
3AUD0000000720 ABB: The ACH580-31 ultra-low harmonic drive with ABB E-Clipse bypass has an integrated UL (NEMA) Type 1, 12 or 3R enclosure with a bypass motor starter and is available from 1 to 400 hp at 460 V. The ACH580-31 ultra-low harmonic drive with ABB E-Clipse bypass provides an input disconnect switch or circuit breaker, both including fast acting drive fuses, with door mounted and interlocked switch (padlockable in the OFF position), a bypass starter, electronic motor overload protection, a door mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Feature → Business Impact → Application: The ACH580-31 includes an integrated ABB E-Clipse bypass and a bypass motor starter, which reduces wiring complexity and speeds up installation, delivering faster time-to-value on HVAC fans and pumps. Application: Commercial buildings and process cooling systems where space and simplicity matter. Benefit is lower panel density and simplified commissioning. Feature → Business Impact → Application: An input disconnect switch or circuit breaker with fast-acting drive fuses provides immediate electrical isolation and enhanced protection, reducing fault propagation and downtime. Application: Food processing or manufacturing lines that require rapid safety responses. Benefit is improved equipment uptime and safer maintenance cycles. Feature → Business Impact → Application: Electronic motor overload protection and a door-mounted control panel with a graphical display enable local control, proactive fault diagnosis, and reduced service visits. Application: Industrial HVAC systems and packaging lines where quick troubleshooting matters. Benefit is higher productivity and lower maintenance costs. Feature → Business Impact → Application: Serial communications capability and provisions for external control connections facilitate PLC/SCADA integration and remote monitoring. Application: Energy-intensive industries seeking centralized analytics and tighter process control. Benefit is better visibility, parameter optimization, and energy savings. Feature → Business Impact → Application: 1 to 400 hp range at 460 V provides scalable drive sizing for diverse equipment. Application: Retrofit projects and new installations across pumps, fans, and conveyors. Benefit is a flexible, future-proof solution that aligns with varying load profiles and energy targets. The above features address common objections by offering a compact, compliant, and future-ready drive with industry-standard interfaces and protections, while enabling industry-specific applications with measurable efficiency gains and cost reductions.
Get a Quick Quote for a ABB 3AUD0000000720
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUD0000000720?
Enquire Now
FAQs
What sizing and enclosure options are available to fit retrofit HVAC projects? The ACH580-31 supports 1 to 400 hp at 460 V and is offered with UL-listed NEMA Type 1, 12, or 3R enclosures, which align with common retrofit layouts. It integrates a bypass starter and protection features to simplify wiring and meet safety requirements, reducing installation time and upgrading legacy systems with minimal disruption.
How does the ACH580-31 reduce harmonics and protect motors? The drive is designed as an ultra-low harmonic solution with built-in electronic motor overload protection and fast-acting drive fuses. This combination minimizes harmonic distortion, lowers electrical stress on motors, and provides robust protection during fault conditions, supporting longer motor life and stable process performance.
Which applications and industries are ideal for this drive? It is well-suited for HVAC equipment, pumps, fans, and process equipment in commercial and light industrial environments. The integrated bypass, local control panel, and remote connectivity capabilities make it a strong fit for facilities aiming to improve energy efficiency, reduce maintenance visits, and simplify system integration with PLCs or SCADA.
What certifications and compliance considerations should buyers verify? The ACH580-31 emphasizes UL-listed protection with compatible NEMA enclosures and CE-ready interfaces for integration into global standards. When selecting, confirm enclosure rating and local regulatory requirements for electrical equipment in your region to ensure full compliance and safe operation within your facility.
What kind of ROI can be expected from deploying this drive? Users typically see reduced energy consumption due to optimized motor control, fewer field service calls thanks to onboard diagnostics and a graphical control interface, and faster commissioning with the integrated bypass. These factors contribute to lower total cost of ownership and faster payback in HVAC and process-driven environments.
