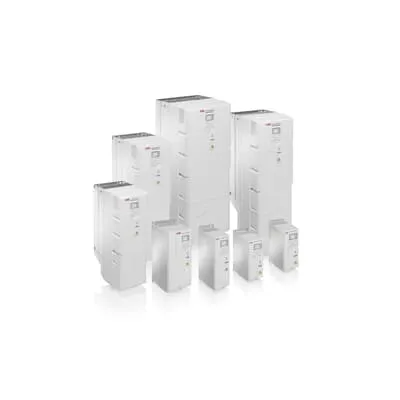

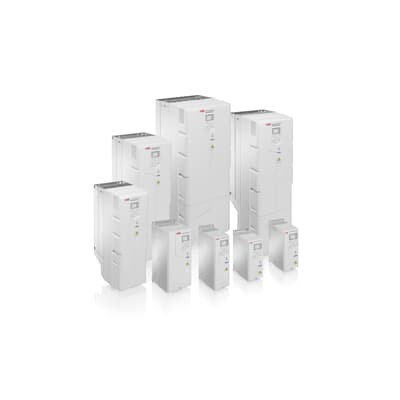

ABB ACH580-31 Packaged Drive - UL Type 1 Enclosure
Part Number: 3AUD0000001553
Quick Summary
ABB ACH580-31 Packaged Drive is a UL-listed ultra-low harmonic drive solution for HVAC systems and commercial building equipment. This packaged option reduces harmonic distortion while saving space and simplifying wiring in retrofit and new installations. UL-listed protection with a NEMA Type 1/12/3R enclosure provides dependable safety compliance, while built-in control, local graphical display, and serial communications streamline commissioning. For industrial HVAC drives, energy efficiency and predictable maintenance are critical, and this solution delivers these benefits with integrated protection and connectivity that support reliable motor control across facilities.
Product Information
Extended Description
3AUD0000001553 ABB: The ACH580-31 ultra-low harmonic Packaged Drive includes an ACH580-31 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with either an input disconnect switch or an input circuit breaker, both including fast acting drive fuses. It is available from 1 to 400 hp at 460 V. The ACH580-31 ultra-low harmonic Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Feature is ultra-low harmonic design combined with a packaged enclosure → Business impact reduces complex harmonic distortion and power quality issues, which translates to longer motor life and less electrical noise in sensitive facilities → Application ideal for HVAC fans and pumps in commercial buildings and light-industrial environments. Feature includes a UL-listed, UL (NEMA) Type 1/12/3R enclosure with input disconnect or input circuit breaker and fast-acting drive fuses → Business impact simplifies code-compliant installation, enhances safety, and reduces panel footprint → Application positions the drive for retrofit and new-build projects where space is at a premium. Feature provides a door-mounted control panel with graphical display and local control → Business impact accelerates commissioning, lowers commissioning labor, and improves operator visibility → Application supports on-site troubleshooting and quick adjustments during startup. Feature includes electronic motor overload protection and serial communications capability → Business impact improves protection and integration with building management systems (BMS) and remote diagnostics → Application enables scalable control architectures for multi-drive HVAC installations. Feature supports external control connections and 1–400 hp at 460 V with up to 180 A current → Business impact offers flexible sizing for various motor loads, simplified procurement, and consistent performance across plant assets → Application ensures energy efficiency, reduced downtime, and predictable maintenance plans.
Get a Quick Quote for a ABB 3AUD0000001553
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUD0000001553?
Enquire Now
FAQs
The ACH580-31 is designed for UL-listed deployment in UL (NEMA) Type 1/12/3R enclosures and supports an input disconnect switch or circuit breaker with fast-acting drive fuses. It operates at 460 V with a horsepower range from 1 to 400 hp and offers a door-mounted graphical control panel, external control connections, and serial communications for straightforward integration with existing motor control centers and BMS. Ensure panel fit, proper wiring, and compliance with enclosure ratings during installation.
Key performance specs include 1–400 hp at 460 V with up to 180 A current, and an ultra-low harmonic design to minimize supply distortion. The drive features electronic motor overload protection, a built-in local control panel, and serial communications for remote monitoring. These characteristics suit HVAC fans and pumps, air handling units, and retrofit projects where power quality, quiet operation, and compact installation are critical.
Yes. The ACH580-31’s ultra-low harmonic performance reduces electrical noise and improves power quality, which is beneficial for sensitive fans and pumps. With electronic motor overload protection and built-in protection features, it maintains safe operation under varying loads. External control options and BMS integration further support precise control of critical HVAC and process equipment while minimizing interference with other plant systems.
This packaged drive is UL-listed and delivered in a UL (NEMA) Type 1/12/3R enclosure, addressing common safety and installation standards for commercial and industrial facilities. The enclosure options simplify compliance with building codes and electrical regulations, while the included control panel, fusing, and protection features help ensure safe, reliable operation in occupied spaces and retrofit projects.
The integrated design reduces wiring complexity and panel space, cutting installation time and potential fault points. Energy efficiency from optimized motor control and reduced harmonic distortion translates to lower utility costs and longer motor life. Built-in protections and local control simplify maintenance, while serial communications enable remote diagnostics, reducing on-site service visits and accelerating issue resolution.
