ABB 3AUD0000003148 Packaged Drive - Ultra-Low Harmonic, UL
Part Number: 3AUD0000003148
Quick Summary

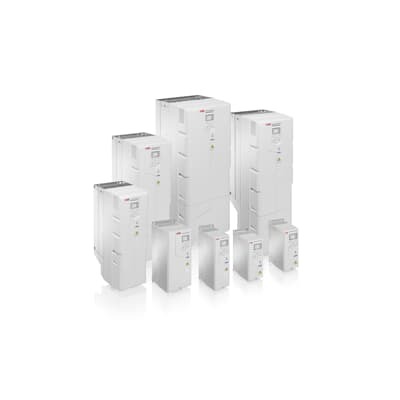

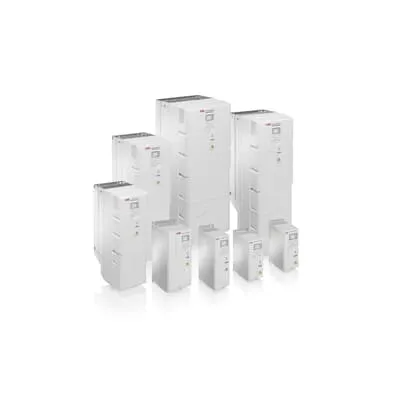

ABB ACH580-31 ultra-low harmonic Packaged Drive optimizes HVAC motor control in commercial and industrial cooling systems. Engineers often battle harmonic distortion, cabinet space limits, and wiring complexity that slow commissioning and increase risk. Certifications include UL-listed safety with rugged NEMA Type 1, 12, or 3R enclosures to protect equipment and operators in harsh environments. With scalable 1 to 400 hp performance at 460 V and an integrated door-mounted control panel, this packaged drive streamlines installation, maintenance, and building automation integration for better uptime and lower total cost of ownership.
Product Information
Extended Description
3AUD0000003148 ABB: The ACH580-31 ultra-low harmonic Packaged Drive includes an ACH580-31 drive in a UL (NEMA) Type 1, 12 or 3R enclosure with either an input disconnect switch or an input circuit breaker, both including fast acting drive fuses. It is available from 1 to 400 hp at 460 V. The ACH580-31 ultra-low harmonic Packaged Drive provides a door-mounted input disconnect switch (padlockable in the OFF position), electronic motor overload protection, a door-mounted control panel with graphical display for local control, provisions for external control connections, and serial communications capability.
Feature: Ultra-low harmonic design reduces mains distortion, improving power quality and reducing transformer losses. Business Impact: Enhances energy efficiency and motor performance, delivering smoother operation and longer equipment life. Application: HVAC fans and pumps in commercial buildings and industrial facilities benefit from reduced electrical stress and improved process stability. Feature: Packaged in a UL (NEMA) Type 1, 12, or 3R enclosure with either an input disconnect switch or an input circuit breaker, both including fast-acting drive fuses. Business Impact: Accelerates installation, simplifies wiring, and improves safety compliance during commissioning and maintenance. Application: Retrofit projects and new HVAC installs where space and safety are critical. Feature: Door-mounted control panel with graphical display for local control. Business Impact: Improves diagnostics and reduces on-site service time, lowering maintenance costs. Application: Technicians can troubleshoot and adjust parameters without opening the cabinet, boosting reliability. Feature: Electronic motor overload protection. Business Impact: Prevents motor and drive damage, extending equipment life and reducing unscheduled downtime. Application: Critical HVAC drives serving conveyors, fans, and compressors in demanding environments. Feature: Serial communications capability. Business Impact: Enables seamless integration into plant-wide automation and Building Management Systems for remote monitoring and analytics. Application: Integrated HVAC control within smart buildings and industrial facilities. Feature: HP and voltage range (1–400 hp at 460 V). Business Impact: Provides a scalable solution that fits a wide spectrum of HVAC motor sizes, reducing the need for multiple solutions. Application: From small air handlers to large air-cooled chiller roooms, the drive adapts to evolving load profiles.
Get a Quick Quote for a ABB 3AUD0000003148
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AUD0000003148?
Enquire Now
FAQs
The ACH580-31 packaged drive supports 460 V systems across 1–400 hp and is designed for UL (NEMA) Type 1, 12, or 3R enclosures. Ensure you select the correct enclosure type with either an input disconnect switch or an input circuit breaker equipped with fast-acting fuses. Wire the drive to a compatible motor, verify grounding, and connect external control signals and the serial communications port per the installation manual to guarantee reliable operation.
The drive is engineered for ultra-low harmonic output to improve power quality and reduce transformer and utility penalties. It includes electronic motor overload protection, a door-mounted graphical control panel for quick diagnostics, and serial communications for integration with automation systems. These features help maintain motor performance, reduce energy waste, and limit unplanned downtime.
Yes. With a 1–400 hp range at 460 V, the ACH580-31 packaged drive covers a wide spectrum of HVAC applications from large fans to high-capacity pumps. Its integrated enclosure and protection features simplify installation in tight spaces, while its harmonic mitigation and control capabilities support stable, energy-efficient HVAC operation.
The drive is UL-listed and designed for UL (NEMA) Type 1, 12 or 3R enclosure installations, ensuring safety and compatibility with standard industrial environments. While CE markings are not specified in the data, the UL and NEMA enclosure qualifications provide a strong compliance baseline for many commercial and industrial HVAC installations.
Adopting the ACH580-31 packaged drive can lower total cost of ownership through improved energy efficiency, reduced harmonic distortion, and fewer field connections due to the integrated enclosure. The door-mounted control panel speeds commissioning and maintenance, while serial communications enable remote monitoring and proactive maintenance, delivering measurable uptime and ROI over the equipment life cycle.
