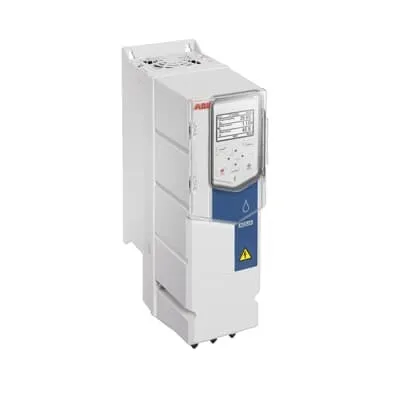

ABB 3AUD0000003535 ACQ580-3P ULH Irrigation Drive - UL 508A Type 3R Enclosure
Part Number: 3AUD0000003535
Quick Summary
ACQ580-3P ULH irrigation drive is designed to minimize harmonic distortion in outdoor irrigation systems, delivering efficient motor control for pumps and fans. Engineers often contend with bulky external filters, complex wiring, and maintenance outages that drive up cost and downtime. This ULH, IEEE519-compliant package is housed in a NEMA Type 3R enclosure, UL508A-listed, and Service Entrance rated, protecting critical equipment in adverse conditions. Built-in circuit breakers, a thermostatically controlled heater, and surge suppression reduce field service calls while enabling scalable power ranges from 40 to 150 HP at 460V. By combining space-saving design with proven harmonic mitigation, it supports efficient, compliant irrigation projects and lower total cost of ownership.
Product Information
Extended Description
3AUD0000003535 ABB: The ACQ580-3P ultra-low harmonic (ULH) irrigation drive package is an outdoor rated, UL (NEMA) Type 3R enclosed drive assembled to UL508A, designed to help your system comply with IEEE519. The ULH technology within this package produces the least amount of harmonic distortion to reduce stress on electrical equipment. It provides unity power factor with a 3% or less THiD. As there is no need for external filters, multi-pulse arrangements or special transformers, the simple installation offers significant savings in space, time and cost.
=20
This robust package is also Service Entrance rated for three phase four wire systems and has padlockable disconnect and enclosure doors. It comes equipped with built-in circuit breakers, reducing downtime and the need to carry fuses. It also includes a thermostatically controlled heater to protect against condensation, a surge suppressor to defend against transient lightning strikes and a totally enclosed control area to maintain a clean environment for the drive and low voltage control components. It is available in power ranges from 40-150 HP at 460V 3-phase.
ULH technology delivers ultra-low harmonic distortion, achieving a unity power factor and THDi of 3% or less without external filters. This directly reduces stress on motors, transformers, and switchgear, lowering maintenance costs and extending equipment life. In irrigation pump houses or field installations, this translates to improved reliability and simplified electrical design for new builds or upgrades. Built-in circuit breakers and a service-entrance rating streamline installation and reduce downtime. The enclosure doors are padlockable and the unit is three-phase, four-wire ready, enabling compliant service entrance connections in outdoor environments. Suitable for tight spaces, the compact footprint helps you maximize pump-room or switchgear cabinets. Thermostatically controlled heater and surge suppressor protect against condensation and transient spikes. These protections are essential in outdoor climates and lightning-prone regions, reducing fault rates and maintenance visits. They support dependable operation for pumps and fans in agricultural, municipal, or industrial irrigation systems. Totally enclosed control area keeps LV components clean and accessible, simplifying service and reducing dust ingress. The rugged UL508A Type 3R enclosure and outdoor rating ensure reliable performance in wet, dusty environments. This design supports swift retrofits and scalable upgrades across multi-pump configurations. Power range from 40 to 150 HP at 460V three-phase provides a scalable solution for various irrigation loads. The drive's plug‑and‑play style and built-in protection simplify commissioning and commissioning checks. Its compatibility with ABB's drive ecosystem helps with remote monitoring and integration into existing plant controls. No external filters or multi-pulse transformers are required, saving space and capital costs. The compact package meets IEEE 519 standards while reducing the total installed cost and time to operate. This makes it an attractive option for greenfield projects and modernization of aging irrigation infrastructure.
