ABB 3AXD50000022162 Relay Output Extension - External Relay Option (4x RELAY)
Part Number: 3AXD50000022162
Quick Summary
ABB 3AXD50000022162 Relay output extension provides expandable relay outputs for compact control cabinets in industrial automation. This side option module BREL-01 is designed to extend I/O capacity where panel space is at a premium, enabling more complex control logic without full panel redesign. For engineers grappling with restricted real estate and wiring complexity, this module delivers a straightforward upgrade path. Note that the data provided lists country of origin as China and indicates a lead time of 8 days with active product status from stock, supporting predictable procurement. In practice, you’ll find this extension aligns with ABB’s reliability, while enabling scalable automation through the external relay option (4x RELAY) for improved process control and machine safety. Consider how this fits into your ABB controller ecosystem and overall Total Cost of Ownership.
Product Information
Extended Description

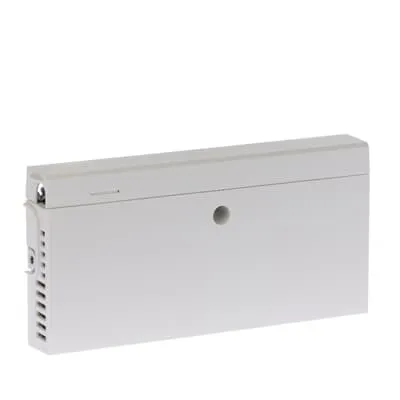

3AXD50000022162 ABB: Relay output extension - side option module BREL-01
