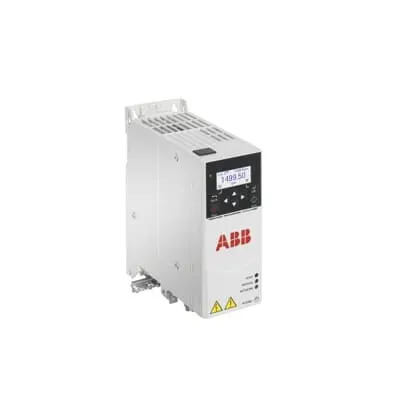

ABB 3AXD50000031861 Machinery Drive Module - PROFIsafe Ready
Part Number: 3AXD50000031861
Quick Summary
The ABB ACS380 machinery drive module delivers precise LV AC motor control for automated machines and production lines. Manufacturers often struggle with integrating drives into diverse control architectures while maintaining uptime and safety. This solution aligns with functional safety through PROFIsafe over PROFINET, and leverages UL-listed motor ratings and IEC-based specifications to simplify global deployment. By combining adaptive programming with straightforward commissioning and robust safety features, it reduces integration time and lifecycle costs, enabling scalable automation across conveyors, mixers, EOT towers, extruders, and textile equipment. Model 3AXD50000031861 supports quick, reliable installation in a range of industrial settings.
Product Information
Extended Description
3AXD50000031861 ABB: The ACS380 machinery drive comes in several variants ensuring seamless integration into machines and connecting perfectly to automation systems. It=E2=80=99s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders and textile machinery.
With the integrated functional safety features, the ACS380 drive can be also part of the machine=E2=80=99s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive=E2=80=99s software can be easily customized with adaptive programming to match any specific application requirements.
Feature: Integrated PROFIsafe over PROFINET enables safety-related communication between the drive and the PLC. Business Impact: Reduces reliance on external safety relays and simplifies risk assessment, helping you meet machine safety standards faster. Application: Ideal for conveyors, mixers, and crane-driven stations where automatic motor stop and controlled start are critical. Feature: 0.55 kW nominal power (Pn) with 1.8 A input current at 400 V. Business Impact: Delivers efficient power usage and compact footprint, supporting tighter panels and lower installation costs. Application: Suitable for small to mid-size machines in textiles and material handling. Feature: UL-based motor ratings (0.75 Hp, 1.6 A at 480 V) paired with IEC-based specifications. Business Impact: Supports compliance in multi-region deployments and simplifies supplier qualification, reducing downtime during audits. Application: Global manufacturing lines requiring standardization across regions. Feature: Adaptive programming and easy software customization. Business Impact: Allows tailoring of motion profiles to match unique processes, cutting engineering hours and enabling quick process changes. Application: Extruders, packaging lines, and textile machinery where process tuning matters. Feature: Broad applicability to food & beverage, material handling, and textile industries. Business Impact: Facilitates a single drive platform across varied assets, lowering spare parts inventory and maintenance training. Application: Mixers, EOT cranes, conveyors, and textile equipment. Feature: Robust installation and integration with existing automation systems. Business Impact: Streamlined commissioning, fewer wiring errors, and faster time-to-production. Application: Plants upgrading legacy lines or expanding production with minimal risk.
Get a Quick Quote for a ABB 3AXD50000031861
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000031861?
Enquire Now
FAQs
Begin with mounting the drive close to the motor, ensure proper protective housing, and connect PROFINET wiring per the ABB installation guide. Use PROFIsafe over PROFINET for safety signals, configure the network in the PLC, and load the adaptive program for your motion profile. Commissioning should include motor tuning, stop/start safety checks, and network testing for latency.
The module supports 0.55 kW nominal power (Pn) with 1.8 A input at 400 V. It also lists UL-rated performance as 0.75 Hp at 1.6 A and 480 V. These specs align with IEC-based drive standards, enabling reliable operation on standard industrial power feeds and facilitating multi-region deployments.
Yes. The ACS380-based 3AXD50000031861 is designed for applications such as mixers, conveyors, EOT and tower cranes, extruders, and textile machinery. Its adaptive programming and safety integration via PROFIsafe over PROFINET support precise speed control and coordinated safety across such line equipment, improving throughput and reducing risk.
The drive integrates PROFIsafe over PROFINET, enabling safe motor stopping and coordination with the machine safety system. This reduces the need for external safety relays and supports safer machine operation. While the data highlights PROFIsafe, it also references UL-based motor ratings and IEC compatibility to assist global compliance planning.
Expect reduced commissioning time due to adaptive programming, easier maintenance with a single platform across multiple assets, and improved energy efficiency from precise speed control. ROI benefits stem from lower integration costs, shorter time-to-production, and a smaller spare parts inventory by standardizing on a single drive family for conveyors, mixers, and textile equipment.
